V-R653P-HDSDI
Triple Serial Digital HD/SD monitor set with 1.2 Megapixel displays
Owner's Manual (PDF) Spec Sheet (PDF)
- 3 High Resolution 6.5-inch 1.2 MegaPixel wide screens
- 100% digital processing
- High resolution scaling of all images
- Wide viewing radius - 130 horizontal and 120 vertical provides superior visibility when the viewer is not directly in front of the screen
- 500 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
- 500:1 ratio of contrast between black and white luminance values
- 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
- Works with all SMPTE/ITU SDI/HD-SDI production formats and frame rates
- Blue Gun for color adjustment
- SD/HD digital signal indicators
- Easy to see three color tally indicators
- Ready to mount in 19" rack out of the box
- HDSDI (all formats & frame rates)
- SDI (ITU-R BT601 format)
- Re-clocked and shaped output of all input signals
- Easy to see three color tally indicators
- Ready to mount in 19" rack out of the box
- Easy to see three color tally indicators
- Ready to mount in 19" rack out of the box
Standard Digital inputs:

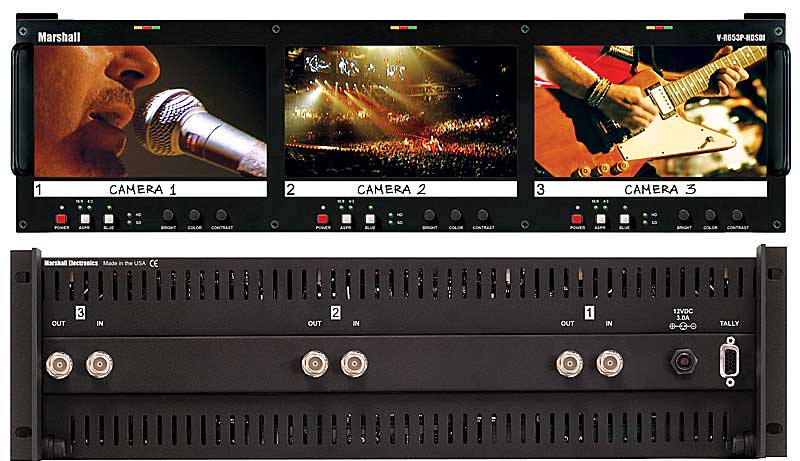

The Rack mounted and tiltable V-R653P-HDSDI represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, 1.2 megapixel, TFT screens with completely digital signal processing. All SMPTE/ITU serial digital video standards and frame rates are accepted and displayed on each screen of this model. All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen is calibrated to SMPTE standards for gamma and color temperature.
| Panel | Number of Panels | 3 |
| Panel Size | 6.5 inch | |
| Resolution | 800H x RGB x 480V | |
| Aspect Ratio | 15:3 | |
| Active Area | 144.0mm x 78.24mm | |
| Type | LCD Panel | |
| Brightness | 500 cd/m² | |
| Contrast | 500:1 | |
| Color Gamut | YUV,RGB | |
| Viewing Angles (CR>=10) | 130°H x 120° V | |
| Backlight type | LED | |
| Adjustable Backlight | No | |
| Features | Video Formats | 1080p/1080i/720p/625i/525i |
| Loss of Input Curtain | Yes | |
| Tally | Yes | |
| Self-Sensing | Yes | |
| Re-clocked/Re-Shaped | Yes | |
| Input Connectors | SD-SDI | Yes |
| HD-SDI | Yes | |
| Output Connectors | SD-SDI | Yes |
| HD-SDI | Yes | |
| Input Status Display | Yes | |
| Control | Tally / GPI | Tally |
| Controls on front Panel | Yes | |
| Pivot Angle | Yes | |
| Handles/Rack Ears | Yes | |
| Power | Voltage | 12 VDC |
| Consumption | 12VDC/36 watts. | |
| Power Switch | Yes | |
| Connector | 2-Pin Twist-Lock | |
| Compliance | Compliance | CE approved |
| Environmental | Operating Temperature (C°) | 32°F to 120°F |
| Storage Temperature (C°) | -4°F to120°F | |
| Rack Unit dimensions | 19.12”W x 5.14”H x 2.5”D | |
| Weight (Main Body) | 6.0 lbs | |
| Applications | ||
