V-R841DP-AFHD
Standalone 8.4" High Definition Monitor with all Digital / Analog HD/SD Inputs and Advanced Function Features
Owner's Manual (PDF)
- High Definition 8.4-inch 2.4 TFT-MegaPixel
screen with 1024 x 768 resolution - Over 16.7 million colors
- V-Mount battery adapter included
- 100% digital processing
- High resolution scaling of all images
- CRT-style viewing radius - 170° in all directions provides superior visibility when the viewer is not directly in front of the screen
- 400 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
- 400:1 ratio of contrast
- Pixel-to-Pixel native resolution scaling
- Extended Temperature Rating
- Blue Gun for color adjustment
- Zoom function
- Works with all SMPTE/ITU analog and serial digital production formats and frame rates
- Direct access for all adjustments
- Easy-to-see three color
tally indicators - Built-in Color Bars
- Adjustment Settings Memory
- Calibrated Color Temperature and Gamma
- Durable Metal Enclosure
- Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)
- Includes universal voltage Class-2 power supply
- Optional Rack Mount Kit/ Desktop Stand available
- HD-SDI (all formats)
- SDI (ITU-R BT601 format)
- Composite Video PAL/NTSC
- S-Video (Y/C)

Standard inputs:
Shown with optional

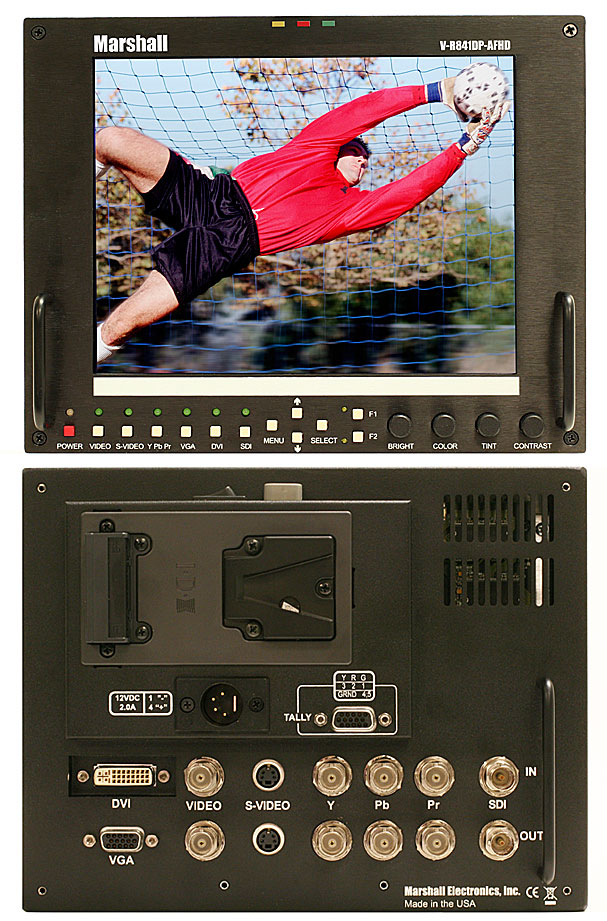

desktop stand V-ST08The V-R841DP-AFHD is an 8.4” high definition LCD monitor featuring our completely digital TFT-MegaPixel active matrix platform. Weighing only 2.85 pounds, this monitor is ideal as a lightweight, high-resolution viewfinder or focus-assist monitor. The V-R841DP-AFHD can also be rack-mounted with an optional 4RU adapter or used in a desktop configuration using an optional desktop stand. Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4x oversampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using advanced algorithms with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p standards. VGA and DVI inputs accept VESA standards, allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome,
H/V delay, and Pixel-to-Pixel mode.
Display (Viewing Area) | 8.4 Inch diagonal (6.3" x 5.13") (170.469mm W x 127.872mm H) |
Resolution (Pixels) | 1024 H × RGB x 768 V (2.4 million RGB pixels) (16.7 Million colors) |
Dot Pitch | 0.0555 (H) x 0.1665 (V) mm |
Brightness (in cd/m²) | 400 |
Contrast Ratio | 400:1 |
System | NTSC/PAL with automatic recognition |
Screen Formats | 640 x 480 - 59.94i, 60i, 29.97p, 30p, 59.94p, 60p 1280 x 720 – 23.97p, 24p, 25p, 29.97p, 30p, 59.94p, 60p 1920 x 1080 – 23.97p, 24p, 25p, 29.97p, 30p, 50i, 59.94i, 60i |
Inputs | HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, YPbPr) 75 Ohm BNC for HD-SDI/SDI (NTSC/PAL) 75 Ohm 3 BNCs for YPbPr / YCbCr DVI connector for DVI-I BNC for Composite Video (NTSC/PAL) 75 Ohm with AGC 4-Pin Mini Din for S-Video (Y/C) |
Dimensions | 9.00”W x 7.00”H x 1.87”D |
Approx. Weight | 3.4 lbs |
Power Consumption | 12 VDC, 2.0Amps max - UL Class 2 |
