Marshall Portable ATSC Field Monitors


The digital transition is here and Marshall has you covered. Marshall is pleased to offer three portable LCD field monitors with built-in digital ATSC tuners. These new 16:9 monitors are available in 7" and 10.2" and comply with the Federal Communications Commission (FCC) mandate requiring the conversion of analog broadcast signals to digital. No digital-to-analog converter box required. Not only do these monitors provide portable television, but they are perfect for mobile ENG / OB Vans, surveillance, and security. These units can be integrated into fixed solutions and fed with a CATV or CCTV signal. Each unit also supports QAM (or ClearQAM) tuning, which allows viewing of non-encrypted digital channels.

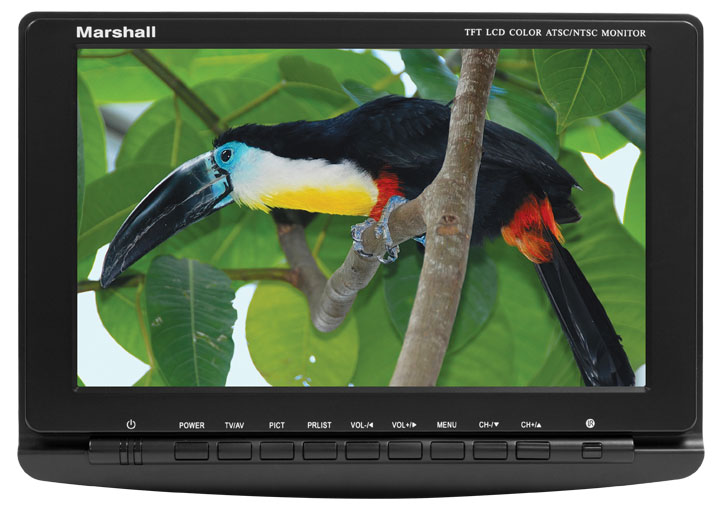

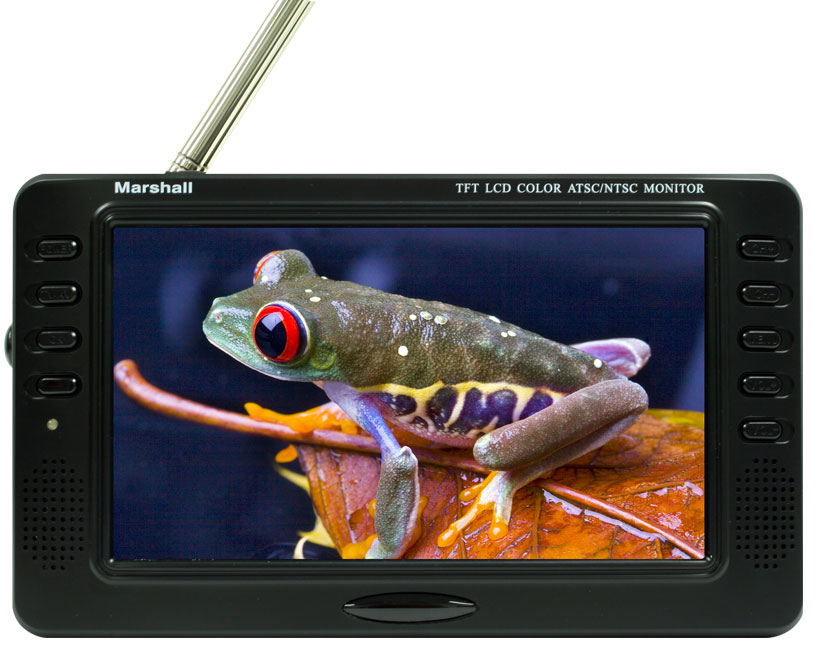

7" ATSC/QAM/NTSC LCD TV 10.2" ATSC/QAM/NTSC LCD TV
Resolution 480 x 234 Resolution 800 x 480
Aspect Ratio 16 : 9 Aspect Ratio 16 : 9
Contrast 300 : 1 Contrast 400 : 1
Brightness 200cd/m² Brightness 180cd/m²
Video Input 1Vp-p 75 ohm (two route) Video Input 1Vp-p 75 ohm (two route)
Audio Input 2Vp-p two channels (L & R) Audio Input 2Vp-p two channels (L & R)
Audio output Build-in loudspeaker (0.5W x 2) Audio output Build-in loudspeaker (0.5W x 2)
Input Resistance 75 Ohm Input Resistance 75 Ohm
Input bit rate Max. 19.4Mbit/s Input bit rate Max. 19.4Mbit/s
Audio decoding AC-3 Audio decoding AC-3
Sound output Stereo/2-channel (Left & Right) Sound output Stereo/2-channel (Left & Right)
QAM Modulation 64-QAM / 256-QAM / 8-VSB QAM Modulation 64-QAM / 256-QAM / 8-VSB
Frequencies CATV (STD, IRC, HRC)
AIR: CH2-69
CATV: CH2-125
Frequencies CATV (STD, IRC, HRC)
AIR: CH2-69
CATV: CH2-125
OSD menu language English, French, Spanish OSD menu language English, French, Spanish
Power supply AC 110-240V / DC 12V 10W Power supply AC 110-240V / DC 12V 10W
Accessories Remote control, AC/DC adapter, support bracket, A/V cable and manual Accessories Remote control, AC/DC adapter, 75 ohm antenna conversion cable (screw connector), U-shaped, support bracket, A/V cable and manual

Marshall's 7" and 10.2" ATSC monitors offer a variety of features combined with bright, high resolution picture performance. Standard video adjustments include contrast, brightness, color, sharpness, and tint, along with four picture preset modes (Personal, Standard, Dynamic, and Soft). There are also three preset color modes (Normal, Warm, and Cool), along with three different Format modes (Auto, 4:3, and Wide). Four audio preset modes (Personal, Standard, Movie, and Music) provide clean and precise sound from two-channel stereo speakers. Other features include Closed Captioning, Clock, Auto Channel Scan, Electronic Program Guide (EPG), and the ability to edit and label individual Programs and Channels.

Each unit includes an adjustable stand and can be powered with included AC/DC power adapter or auto adapter.
Low power consumption combined with great off-axis viewing makes these durable monitors the perfect choice for mobile field monitoring.
