VS-PTC-300
PTZ Camera IP/ NDI® Controller
Owner's Manual Cut Sheet Firmware Update Instructions Download Latest Firmware Download Images
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.
|
|

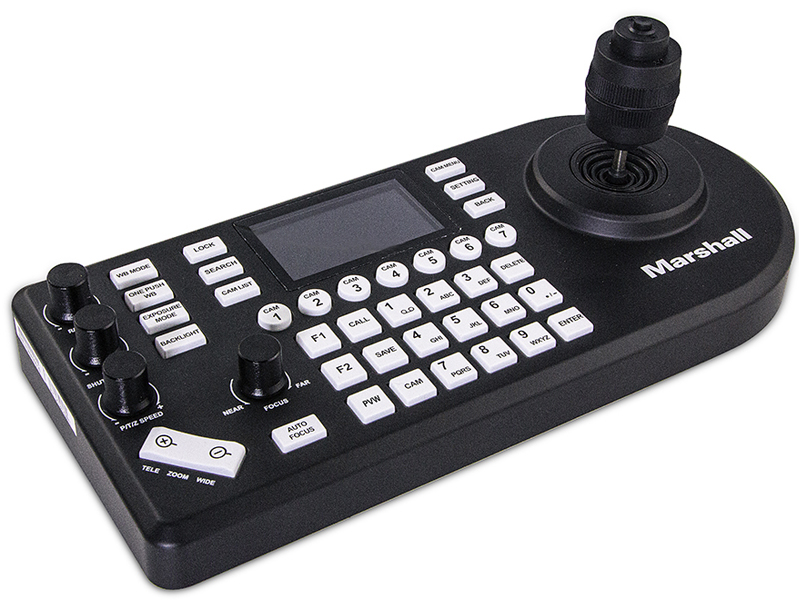

The Marshall VS-PTC-300 PTZ NDI® Camera Controller is designed to operate seamlessly across multiple camera protocols on a single network. Used for live event production and content creation, the VS-PTC-300 offers detailed operation through a high-quality PTZ joystick, professional zoom rocker, and individual fine-tune adjustment knobs for iris, white balance, exposure, red/blue, shutter speed, focus, pan/tilt speed, and zoom speed. The VS-PTC-300 offers cross protocol mix-control on one controller operating RS232/RS422/RS485 and IP, as well as ONVIF, and VISCA over IP. The VS-PTC-300 can setup 7 cameras via RS232, 14 cameras via RS422, and 255 cameras via NDI/IP; all selectable through a single controller. Easy NDI®/IP camera discovery function automatically searches for all available NDI®/IP cameras on a network.
The VS-PTC-300 can store up to 6 selectable ASSIGN function keys and save up to 256 camera presets with memory of image setting parameters. Dedicated knobs and control buttons simplify direct access to frequently used functions without needing to use on-camera menus.
VS-PTC-300 applications:
Broadcast Television, House of Worship, Education, ProAV, Live Sports, Live Music, any PTZ installations, all NDI® Network Setups
Items
|
Spec
|
Remark
|
Model Name
|
VS-PTC-300
|
|
Color
|
Black
|
|
Display
|
3" LCD 360x640
|
|
Keypad with backlight
|
Yes
|
|
Joystick
|
4-axis (Left/Right, Up /Down, Zoom In/Zoom Out)
|
|
Zoom Control
|
x1 (Zoom Seesaw Lever)
|
|
Speed Control
|
x1 (1 Knob)
|
Pan/Tilt, Zoom
|
Focus Control
|
x1 (1 Knob)
|
|
Auto Focus Button
|
x1
|
Switch Mode
|
R/B Gain Control
|
x1 (1 Knob)
|
|
WB Mode Button
|
x1
|
|
On Push WB Button
|
x1
|
|
IRIS/Shutter/G Control
|
x1 (1 Knob)
|
|
Exposure Mode Button
|
x1
|
|
Backlight Button
|
x1
|
|
Assign Button
|
x2
|
Function:
Home Power Mute Picture Freeze P/T Reset Picture Flip Picture LR_Reverse Tracking Mode Framing Mode Auto Tracking On Auto Tracking Off Auto Framing On Auto Framing Off Custom Commands |
Preview Button
|
x1
|
|
Camera Button
|
x7
|
|
Search
|
x1
|
|
Cam List
|
x1
|
|
Cam Menu
|
x1
|
|
Preset Call
|
x1
|
|
Preset Save
|
x1
|
|
Tally Light
|
No actual button. It's the function in the menu.
|
|
Lock
|
x1
|
|
Numbers
|
x10
|
0~9
|
Enter
|
x1
|
For Keyboard control
|
Delete
|
x1
|
For Keyboard control
|
Camera Control
|
VISCA Over IP/ONVIF / NDI
VISCA Address : 1~7 |
NDI preset limit: 100 sets
|
IP Stream
|
RTSP/ ONVIF/ NDI|HX2/ NDI|HX3
|
For Preview
|
Protocol
|
VISCA/ VISCA Over IP/ ONVIF/ NDI
|
|
Baud Rate
|
2400/4800/9600/38400/115200 bps
|
For RS232/RS422
|

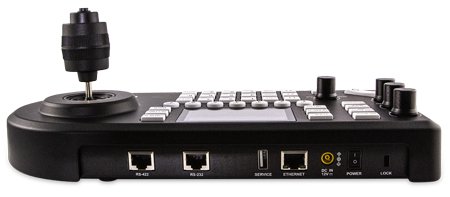

DC12V In
|
x1 (EIAJ-04)
|
|
RS-232 Out
|
RJ45 x1
|
|
RS-422
|
RJ45 x1
|
|
Ethernet
|
RJ45 x1 (PoE)
|
|
Storage temperature
|
-20 to 60 °C
|
|
Operating temperature
|
0 °C to 40 °C
|
