The Marshall VSC-100 (VSC100) easily connects professional video and audio sources to USB devices for use in UCC video conferencing, live streaming, and video production applications. Simple to use plug-and-play design seamlessly integrates professional video sources to your choice of computer-based applications.


Marshall VSC-100

AV UCC Consolidator Bridge

Owner's Manual RS232 Serial CommandsDownload Images
* Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

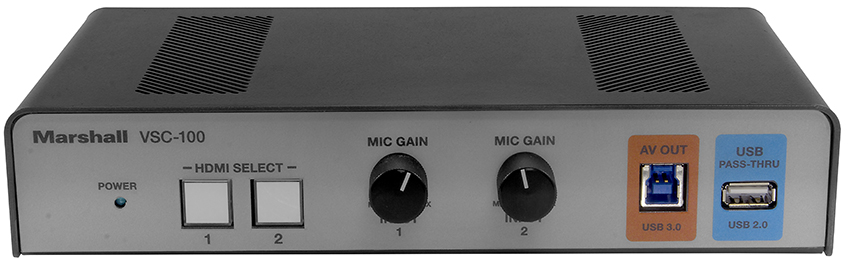

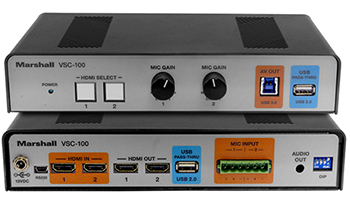

AV Consolidator Bridge stacked viewThe Marshall VSC-100 AV UCC Consolidator Bridge easily connects HDMI video and professional audio sources to a computer for use in UCC, video production, and recording. Simple to use plug-and-play design coupled with a high-fidelity audio front-end makes integration a breeze.

Select either one of two HDMI video sources with the flip of a switch. Active loop-through outputs keep sources available for other purposes such as feeding monitors and recorders.

Select either the incoming HDMI audio or external analog audio sources for the HDMI and USB outputs. Either source may also be independently selected for the analog output, allowing one source to be monitored while the other passes to a computer or monitor.

NOTE: Analog audio input is intended to replace existing HDMI audio.
HDMI derived from DVI or other sources that have no embedded audio stream cannot have analog audio inserted.
All USB audio will be 44.1 KHz sampled. Rate conversion is not applied. Please see the Owner's Manual for details.

  • Two selectable HDMI 2.0 inputs with active loop-through dual outputs
  • Independent audio gain controls for dual audio input sources
  • Wide gain control range accommodates low output microphones up to line level sources
  • USB 3.0 computer interface with UVC control and scaling
  • Simple plug-and-play operation. Driver installation not required for most applications
  • Package includes mounting hardware for under table applications
  • Compatible with popular applications including Zoom, Skype, OBS Studio, and more
  • A/B switched HDMI to USB 3.0 converter with dual mic/ line balance/unbalance analog audio embedders
  • Full UCC functionality with user friendly control
$999.00


Marshall VSC-100 Applications:

The VSC-100 is suitable for use in UCC, live broadcast, streaming, and professional AV workflows including podcasting, web conferencing, video production, and screen capture.




* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
