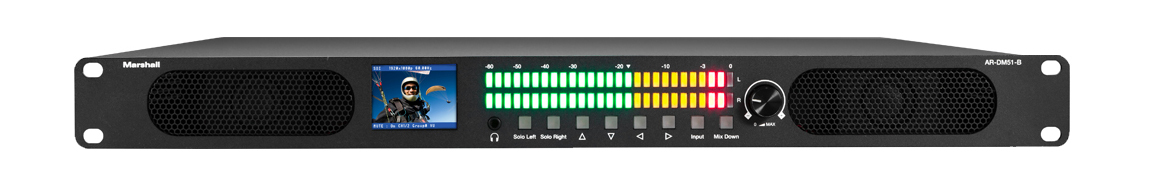

Marshall Rackmount Digital Audio Monitor with Dante ™
Marshall's AR-DM Series Rackmount Digital Audio Monitors are high quality, ultra-nearfield audio monitoring systems for space critical environments with interchangeable input / output modules and field-upgradeable firmware capability.
The AR-DM61 Series are sixth generation digital audio rack-mount monitors from Marshall, featuring improved audio quality and redesigned chassis. Each monitor has re-engineered speaker enclosures to maximize output power and new front digital panels that allow easier accessibility.
1RU Frame
![AR-DM61-BT-64-Channel Multi-Channel Digital Audio Monitor with built-in Live Video Preview Confidence Monitor](images/Multi-Channel-Digital-Audio-Monitor-AR-DM61-BT-ic.jpg)
Optional Dolby™ card not included
![AR-DM61-BT-64-Channel Multi-Channel Digital Audio Monitor with built-in Live Video Preview Confidence Monitor](images/Multi-Channel-Digital-Audio-Monitor-AR-DM61-BT-ic.jpg)
Optional Dolby™ card not included
OPTIONAL MODULES
![Multi-Rate SDI/HD-SDI Video Input](images/ARDM-HDSDI.jpg)
- 3G/HD/SD-SDI Input (up to 16 Audio Channel Inputs)
- Re-Clocked 3G/HD/SD-SDI Loop-Through Output
- HD-SDI Supports SMPTE 259-C, 292M, and SMPTE 424M, 425M with SMPTE 352M Payload
- Supports DOLBY Multi-Channel Decoding with Optional Module
![Multi-Rate SDI/HD-SDI Video Input](images/ARDM-HDSDI.jpg)
- Multi-Rate SDI/HD-SDI Video Input (Auto-Detect)
- Re-Clocked SDI/HD-SDI Loop-Through Output
- SDI: SMPTE 259M-C / HD-SDI: SMPTE 292M
- Supports 8 Stereo Embedded Channels or Dolby®
- Multi-Channel Decoding*
![4 Unbalanced AES/EBU Inputs (BNC)](images/ARDM-AES-BNC.jpg)
- 4 Unbalanced AES/EBU Inputs (BNC)
- 4 Passive Loop-Through Outputs (BNC)
- Supports 4 Stereo Channels or Dolby® Multi-Channel Decoding*
![4 Balanced AES/EBU Stereo Inputs](images/ARDM-AES-XLR.jpg)
- 4 Balanced AES/EBU Stereo Inputs (DB-25)
- 4 Passive Loop-Through Outputs (DB-25)
- Break-Out Cable included (DB-25 to 8 XLR)
- Supports 4 Stereo Channels or Dolby® Multi-Channel Decoding*
![8 Balanced Analog Audio Inputs](images/ARDM-AA-8XLR.jpg)
- 8 Balanced Analog Audio Inputs (DB-25)
- Nominal level: 0,+4,+6, or+8 dBu = -20dBFs
- Break-Out Cable included (DB-25 to XLR)
![4 Unbalanced AES/EBU Outputs](images/ARDM-AES-4OUT.jpg)
- 4 Unbalanced AES/EBU Outputs (75Ω BNC)
- Capable of 4 AES/EBU Outputs
De-embedded from HD-SDI or SD-SDI input - Capable of 4 AES/EBU Outputs Decoded
from Dolby® E / Dolby® Digital bitstream*
