The Marshall ML-454-V3 4 panel monitor is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products.


Home | Professional Monitors | ML-454-V3 - Quad 4.5" Screens Rackmountable Monitor with HDMI, and 3G-SDI

ML-454-V3

Quad 4.5" Screens Rackmountable Monitor with HDMI, 3G-SDI,

Owner's Manual (PDF) Download Images
The Marshall ML-454-V3 Quad 4.5" Screens LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-454-V3, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs. * Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

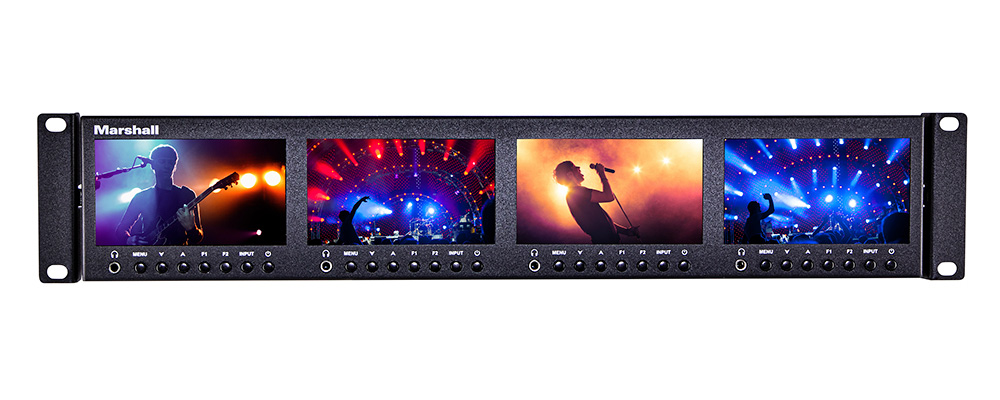

Four 4.5" HD Screens

Four high compliance 3G panels provide full time viewing access to multiple production sources with very accurate rendition. The panels are easily matched and and maintain calibration almost indefinitely.
ML-454-V3 4 panels with full time viewing access

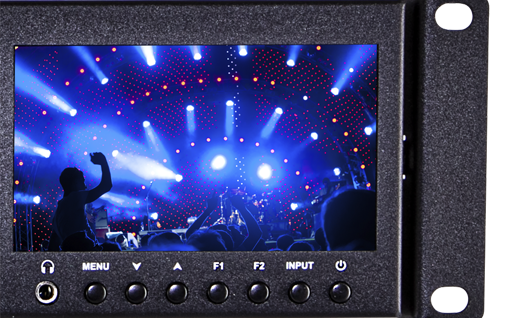

On-Screen 3 Color Tallies

Easily visible border tallies provide instantaneous process control feedback to the operator.
On-Screen 3 Color Tallies - Easily visible border tallies provide instantaneous process control feedback to the operator

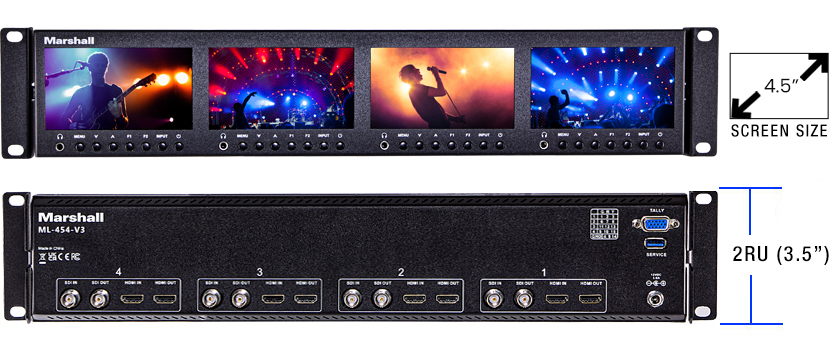

Compact Panel
2RU (3.5") Height

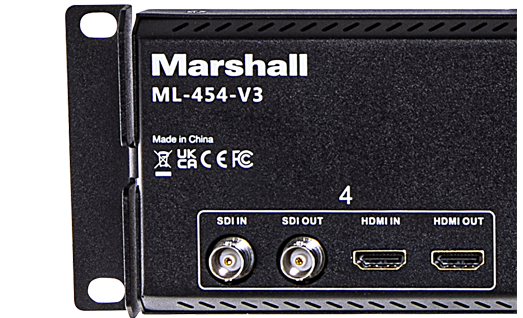

Rugged, all metal construction makes the ML-454-V3 at home in any rack mount or standalone application.
Rugged, all metal construction makes the ML-454-V3 at home in any rack mount or standalone application

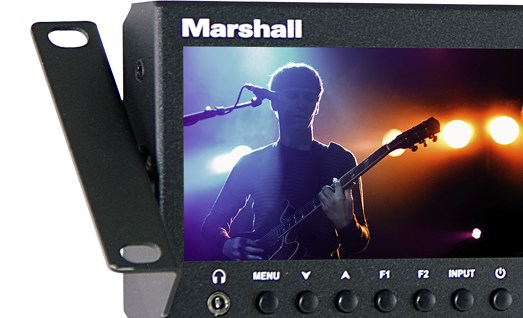

Great Off-Axis Performance

Excellent angle of viewing allows the user to position the rack in any number of physical locations.
ML-454-V3 has excellent angle of viewing allows the user to position the rack in any in any number of physical locations




ML-454-V3 specifications
Screen 4 x 4.41" LCD
Chassis 2RU
Resolution 1920 x 1080
Aspect Ratio 16: 9
Viewing Angle

(H) +85/-85° ; (V) +85/-85°
Brightness

400 cd/m²
Contrast Ratio 1500 : 1
Video Input 4 x 3G/HD/SD-SDI
4 x HDMI
Video Loopout 4 x 3G/HD/SD-SDI
4 x HDMI
Input Formats SDI:
SD: 480i 59.94 / 576i 50

HD: 720p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/23.98sf/24/24sf/25/25sf/29.97/29.97sf/30/30sf

3G-level A:
720p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/23.98sf/24/24sf/25/25sf/29.97/29.97sf/30/30sf/50/59.94/60
1080i 50/59.94/60

HDMI:
480i59.94
480p59.94
576i50
576p50
720p50/59.94/60
1080p23.98/24/25/29.97/30
1080i50/59.94/60
1080p50/59.94/60
3840x2160 p23/24/25/29/30/50/59/60
4096x2160 p23/24/25/29/30/50/59/60
640x480 60
720x480 60
720x576 60
800x600 60
1024x768 60
1280x768 60
Audio In -Embedded Audio from SDI and HDMI
Audio Out

- SDI and HDMI embedded audio from 3.5mm headphone jack
-Embedded audio from SDI and HDMI loopout

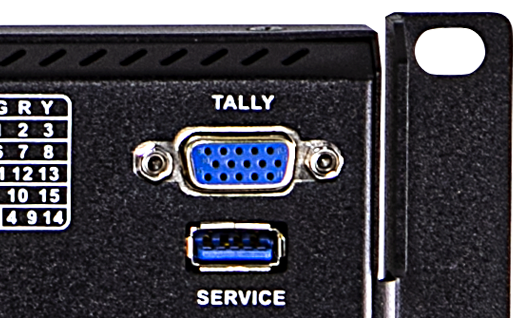

Control -On-screen tally from 15-pin D-Sub port
Power DC input support 10 ~ 24V (typical 12V), 24W
Storage Temperature (-20)°C ~ (+ 60)°C
Operating Temperature (0)°C ~ (+ 50)°C
Dimensions 19” x 3.5” x 1.5” (482.7mm x 88mm x 38mm)
Weight 3.50 lbs (1.6kg)
Features Safety marker, aspect marker, center marker, marker color, check field, peaking color, peaking level,
audio meter, image flip, image freeze, aspect ratio, scan modes, 2 user defined function buttons
