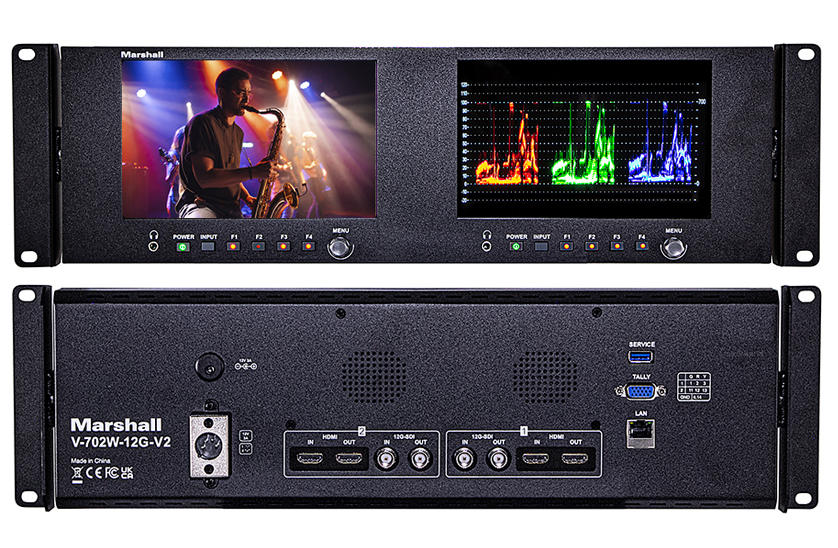

V-702W-12G-V2 Dual 7" Rackmountable Monitor with HDMI and 12G-SDI Inputs


Home | Professional Monitors | V-702W-12G-V2 - Dual 7" Rackmount Monitor with 12G-SDI and HDMI Inputs

V-702W-12G-V2

Dual 7" Rackmount Monitor with 12G-SDI and HDMI Inputs

Owner's Manual Marshall Monitor Control PCSet V1.5 Download Images
The Marshall V-702W-12G-V2 dual 7" LCD Display is a feature-packed, solution perfect for remote production trucks, fly-packs, control rooms, routing rooms and countless other video system applications. Based on the Marshall V-702W model, the 12G-SDI inputs provides low latency and eliminates the need for outboard down conversion. * Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.


Dual Full HD Screens

Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.

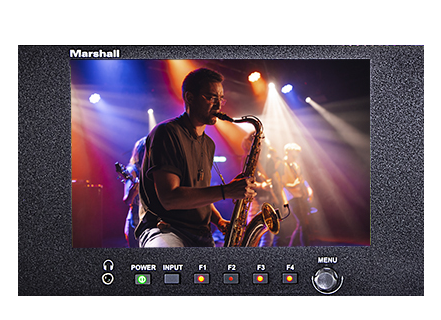

ML-454-V2 4 panels with full time viewing access

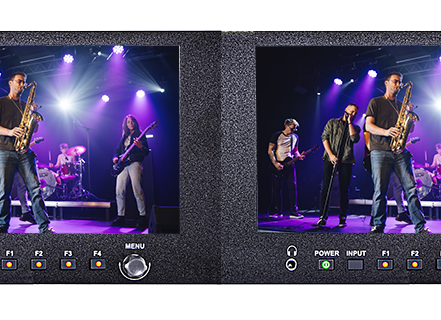

Split-Screen Comparison

Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.
Split-Screen Comparison

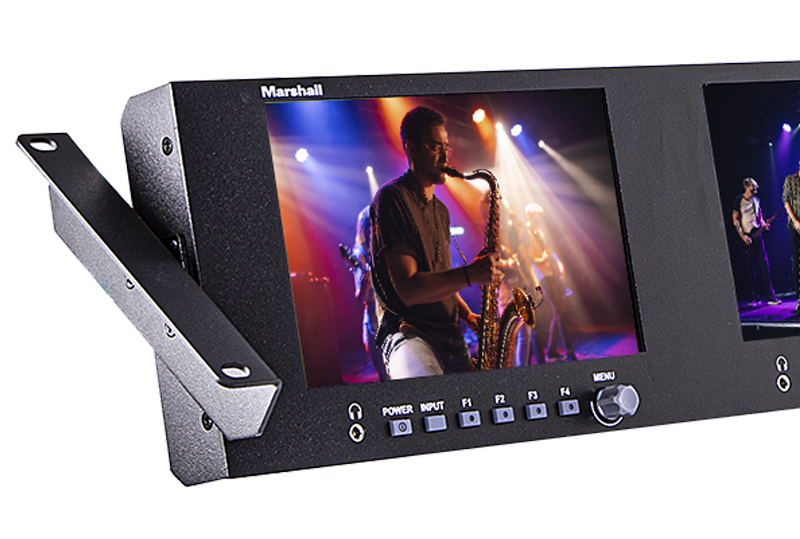

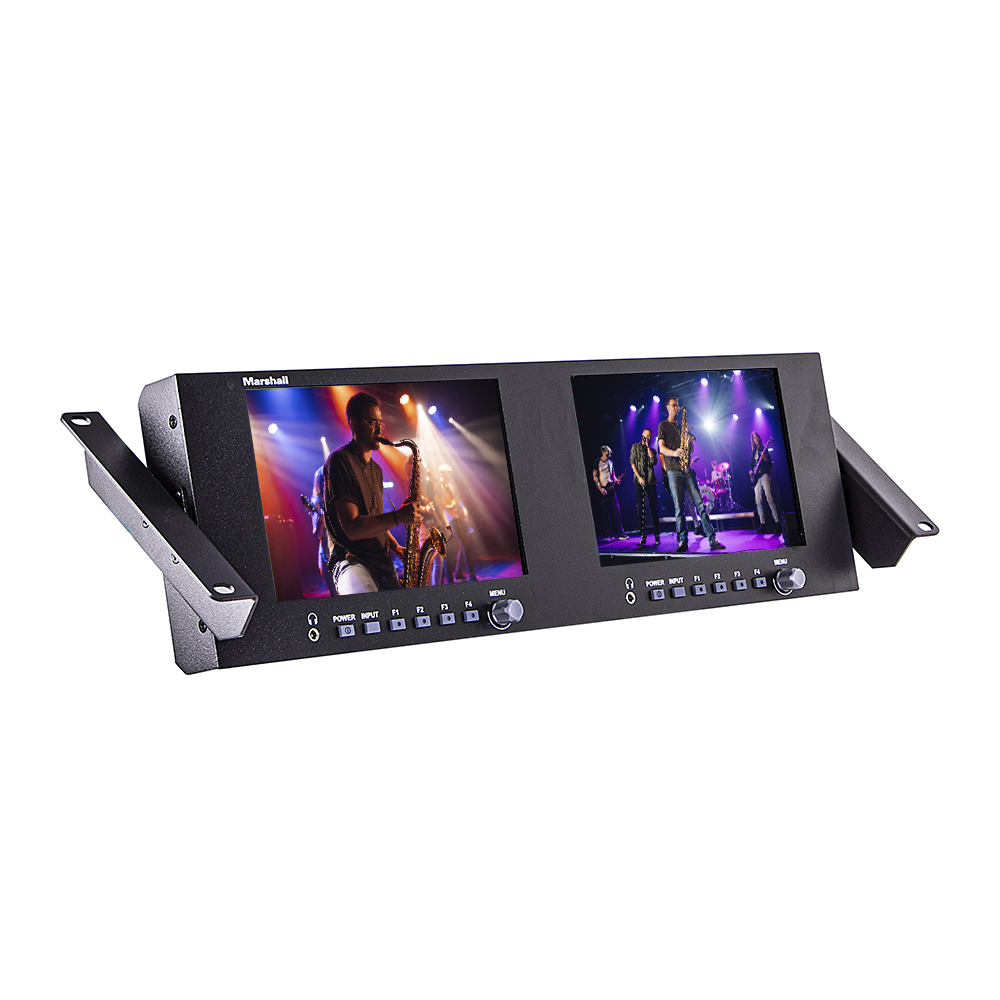

Great Off-Axis Performance

Excellent angle of viewing allows the user to position the rack in any number of physical locations.
ML-702 has excellent angle of viewing allows the user to position the rack in any in any number of physical locations



V-702W-V2 specifications
Number of Panels 2
Screen 2" x 7" LCD
Chassis 3 RU
Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle (H) +80/-80° ; (V) +80/-80°
Brightness (in cd/m2) 450 cd/m2
Contrast Ratio 1200 : 1

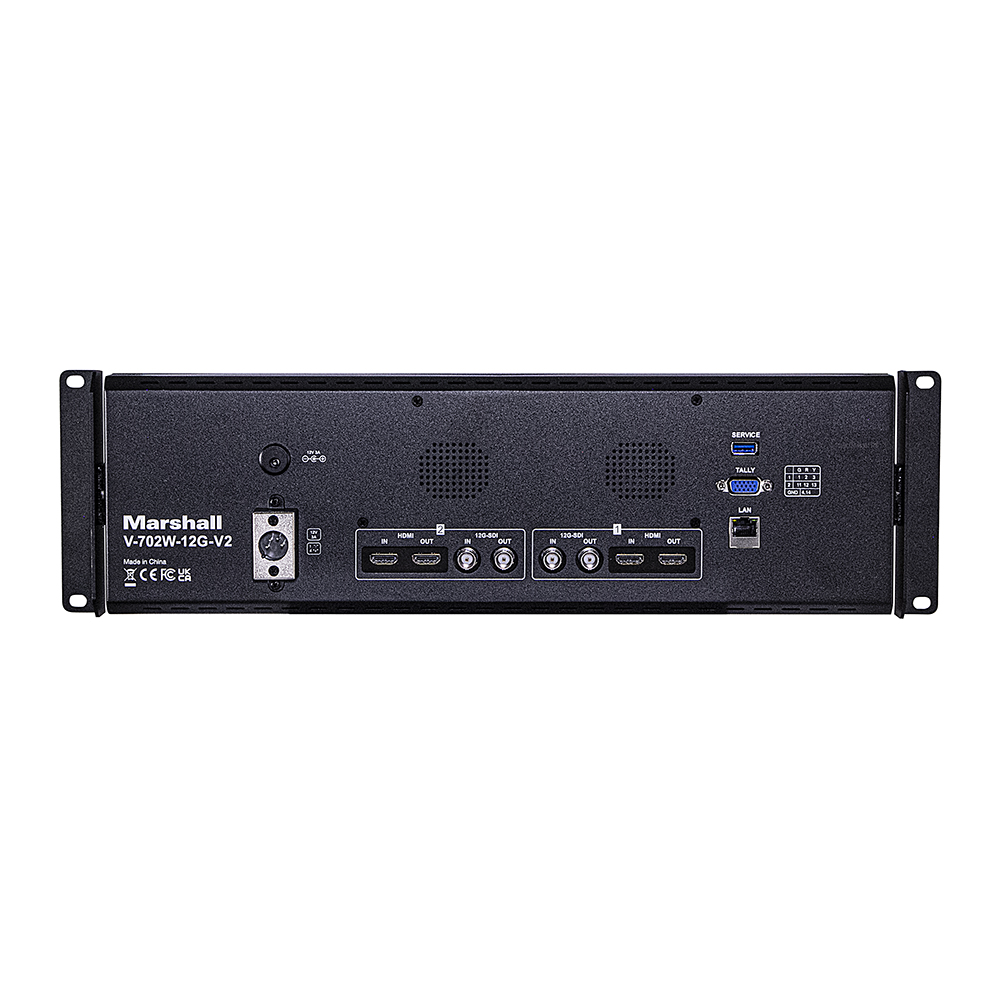

Video Input 2 x 12G/3G/HD/SD-SDI
2 x HDMI
Video Loopout 2 x 12G/3G/HD/SD-SDI
2 x HDMI
Input Formats SDI:
SD: 480i 59.94 / 576i 50
HD: 720p 25/29/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/23.98sf/24/24sf/25/29.97/30
3G Level A:
1080p50/59.94/60/23.98/23.98sf/24/24sf/25/25sf/29/29.97sf/30/30sf
1080i 50/59.94/60
12G:
3840/2160p 23.98/24/25/29.97/30/50/59.94/60
4096x2160p 23.98/24/25/29/30/50/59.94/60
HDMI:
480i 59.94/480p 59.94/576i 50/576p 50
720p 25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
3840x2160p 23.98/24/25/29.97/30/50/59.94/60
4096x2160p 23.98/24/25/29.97/30/50/59.94/60
640x480 60
800x600 60
1024x768 60
1280x768 60
1360x768 60
1280x960 60
1280x1024 60
1400x1050 60
1600x1200 60
1920x1200 60
Audio In -Embedded Audio from SDI and HDMI
Audio Output - SDI and HDMI embedded audio from 3.5mm headphone jack
-Embedded audio from SDI and HDMI loopout
Control -On-screen tally from 15-pin D-Sub port
-GUI control via Ethernet
Power Supply DC 10.8~24V (Typical 12V), 21W (Typical)
Storage Temperature (-20)°C ~ (+ 60°)C
Operating Temperature (0)°C ~ (+ 50°)C
Dimensions 481.8mm x 133.5mm x 61.4mm (19”W x 5.26”H x 2.42”D)
Weight 2.43 kg (5.35 lbs)

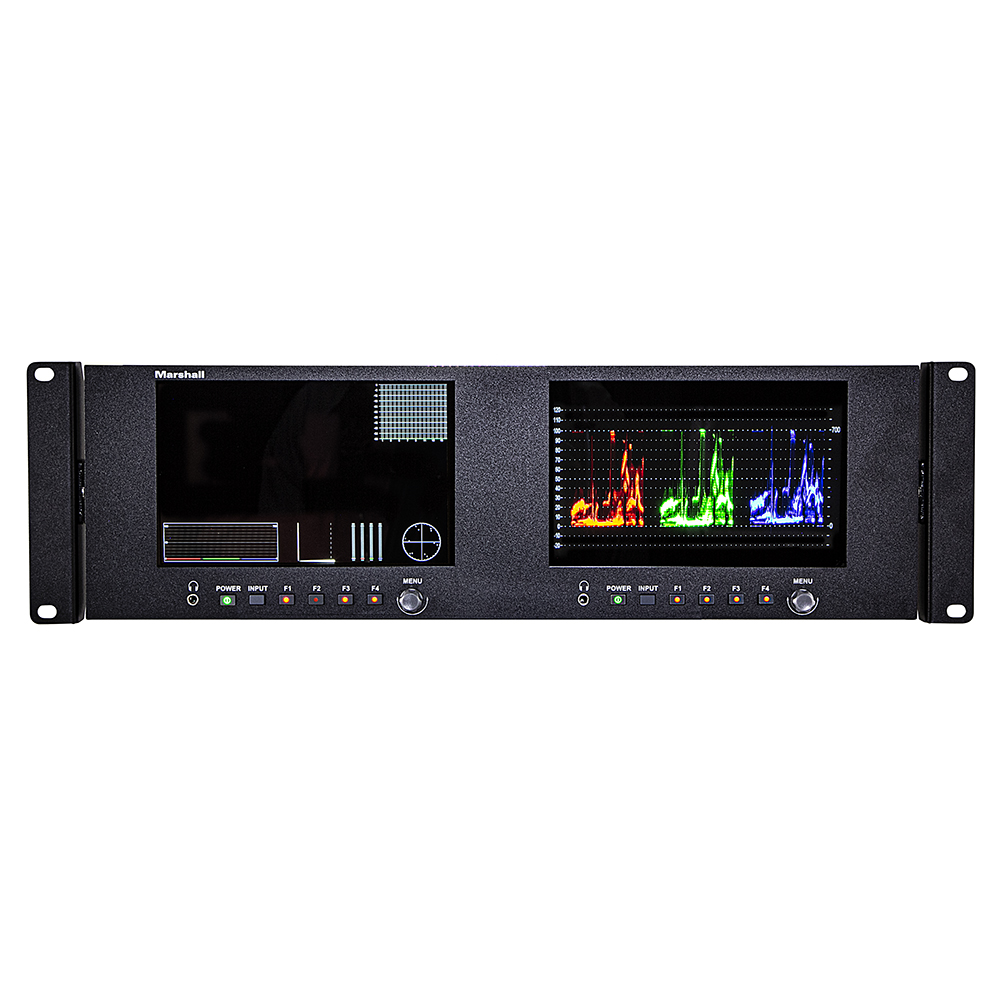

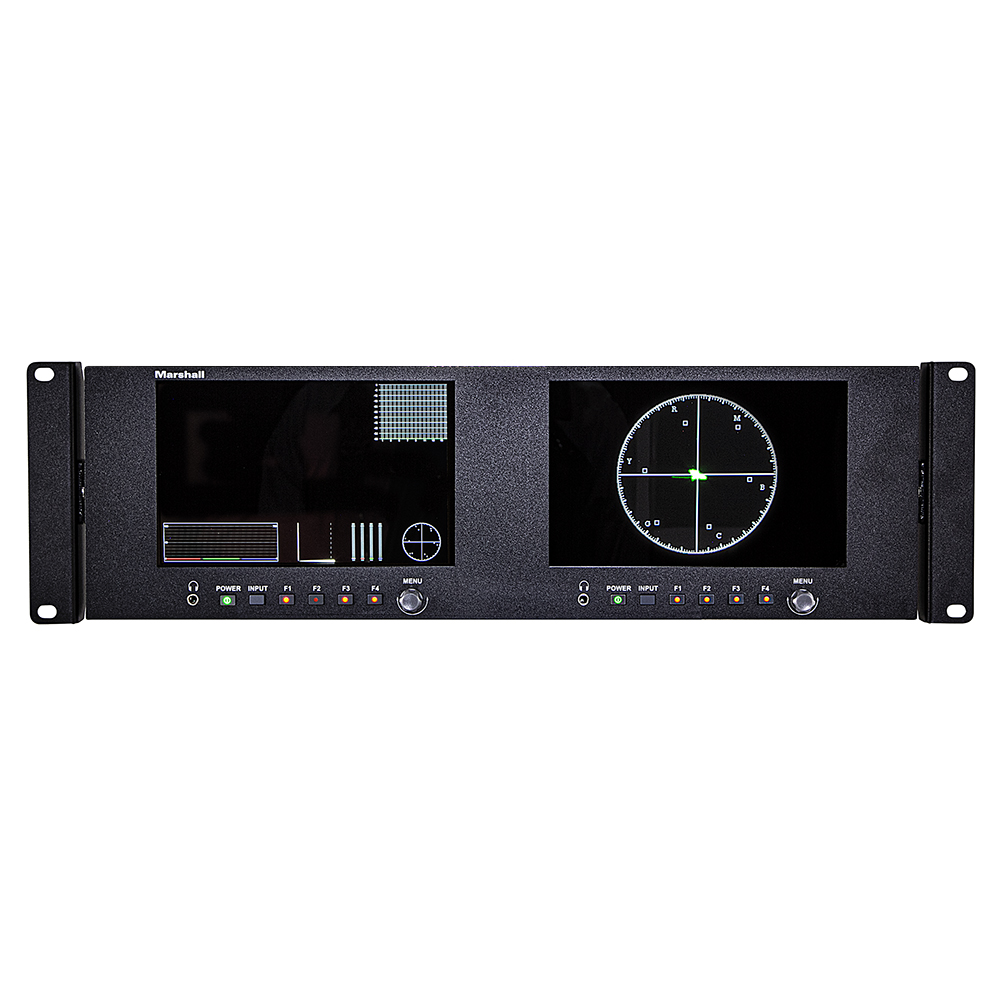

Features Color space, camera log (default log and user log), Gamma adjust,
HDR, safety marker, aspect marker, center marker, marker color, scan
modes, aspect ratio, H/V delay, check field, image freeze, Image flip,
waveform, vectorscope, peaking color, peaking level, false color,
exposure level, histogram, time code, audio meter, 4 user defined
function buttons
