V-702W Dual 7" Rackmountable Monitor with HDMI and 3G-SDI Inputs


V-702W

Dual 7" Rackmount Monitor with HDMI and 3G-SDI and Inputs

Owner's Manual Marshall Monitor Control PCSet V1.5 Fimrware Update Instructions Download Latest Firmware Download Images

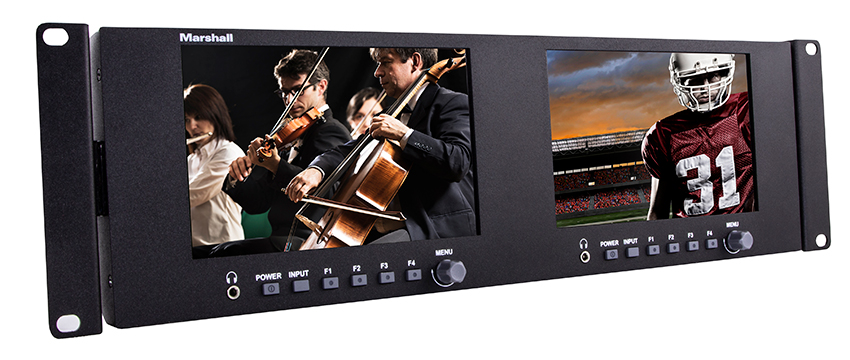

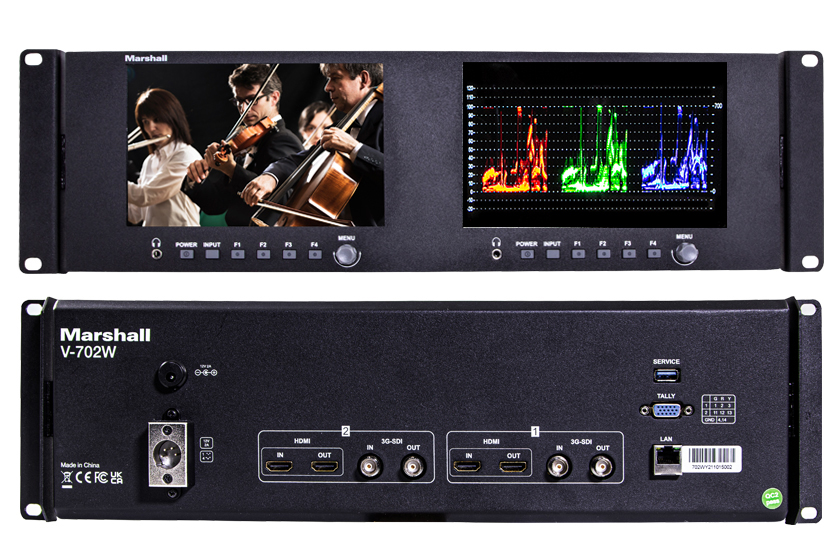

The Marshall V-702W dual 7" LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. The V-702W adds multiple analysis functions to a monitors with great images and pricing. Features like Waveform Monitor, Vectorscope, Audio Phase, HDR modes, S-Log conversions and user LUT's (with split-screen comparison) makes this monitor a versatile QC platform. * Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

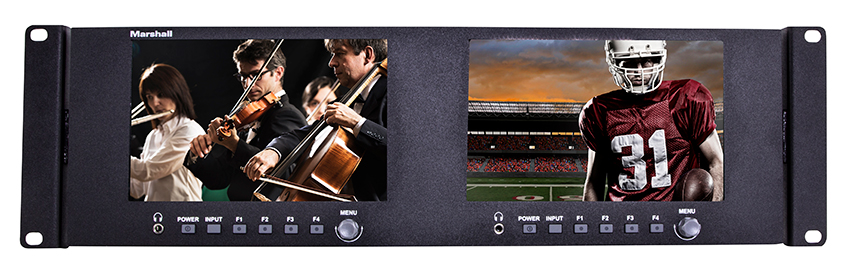

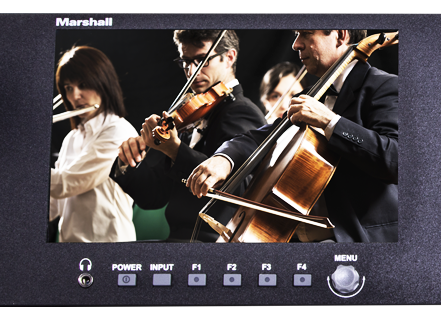

Dual Full HD Screens

Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.
ML-454-V2 4 panels with full time viewing access

Split-Screen Comparison

Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.
Split-Screen Comparison

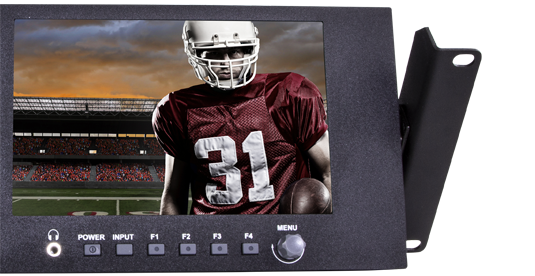

Great Off-Axis Performance

Excellent angle of viewing allows the user to position the rack in any number of physical locations.
ML-702 has excellent angle of viewing allows the user to  position the rack in any in any number of physical locations




V-702W specifications
Number of Panels 2
Panel Size Dual 7-inch
Resolution (Pixels) 1920 x 1080
Aspect Ratio 16:9
Viewing Angle 160° / 160° (H/V)
Brightness (in cd/m2) 450
Backlight type LED
Compatible Input Formats Video Formats via SDI Input:
1080p 50/59.94/60
1080p 29.97/25/24/23.98
1080PsF 24/23.98
1080i/ 50/59.94/60
720p 50/59.94/60
576i 50, 480i 59.94
1080p 50/59.94/60
1080p 29.97/25/24/23.98
Video Formats via HDMI Input:
1080i 50/59.94/60
720p 50/59.94
576i 50, 480i 59.94
Audio Output Headphone jack, 3.5mm mini-phone
Power Supply Included
Weight 5.2 lbs, 2.32 Kg
Size 19" W x 5.3" H x 1.2" D
482.6mm W x 134.62mm H x 30.48mm D
Rack Ears Included - adjustable tilt
