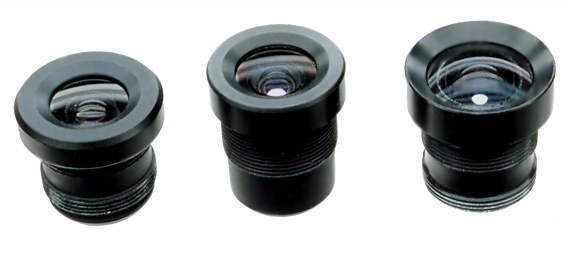

Miniature Glass Lenses For Board
Cameras Excellent for robotics, imaging, machine vision, security, OEM applications  The 4300 series lenses use a M12 x 0.5 thread and are compatible with various bullet size and board cameras. The V-LH04 and V-LH08 lens holders can be used for OEM designs using our V-4300 series lenses. Custom designed metal or plastic lens holders are available to meet any requirement. For more information, call us.  *BFL: Note lens element is recessed in barrel on some models |
| Part No. | Focal Length | Relative Aperture | Sensing Area | Back Focal Length | # of Elements | Angular Field of View | D1 (mm) | D2 (mm) | Min. Object Distance | Weight | Length (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | L5 (mm) | LT (mm) | Price | |||||
| 1/3" CCD | 1/4" CCD | ||||||||||||||||||||||
| (H) | (V) | (D) | (H) | (V) | (D) | ||||||||||||||||||
| V-4301.68-2.5FT | 1.68mm | 2.5 | 1/4" | 3.48 | 5 | - | - | - | 132.9° | 101.1° | 170° | ø12.0 | ø15.0 | 40cm-∞ | 6.4g | 15.1 | 1.9 | 2.8 | 0.2 | 9.4 | 1 | 18.4 | $38.00 |
| V-4301.9-2.0FT | 1.9mm | 2 | 1/4" | 4.5 | 5 | - | - | - | 118° | 91° | 150° | ø11.0 | ø15.0 | 40cm-∞ | 4.5g | 15.1 | 4.5 | 9.1 | 1.5 | - | - | 18.8 | $38.00 |
| V-4301 | 2.1mm | 2 | 1/3" | 5.6 | 6 | 131° | 101° | 155° | 99.5° | 74.8° | 122° | ø12.5 | ø17.0 | 40cm-∞ | 6.5g | 19.1 | 4.5 | 6.1 | 3 | 2 | 3.5 | 24.1 | $38.00 |
| V-4302 [EOL] | 2.9mm | 2 | 1/3" | 5.88 | 6 | 94° | 69.9° | 129° | 71.7° | 53.1° | 88.4° | ø10.8 | ø15.0 | 40cm-∞ | 5.5g | 15.5 | 4.5 | 5.5 | 3 | 2.5 | - | 20.9 | $29.00 |
| V-4302-2 [EOL] | 2.9mm | 2 | 1/3" | 5.85 | 6 | 94° | 69.9° | 129° | 71.7° | 53.1° | 88.4° | ø10.8 | ø15.0 | 40cm-∞ | 6.2g | 18 | 6.4 | 3.3 | 3 | 2.8 | 2.5 | 23.2 | $29.00 |
| V-4303-2.0 [EOL] | 3.0mm | 2 | 1/3" | 5.75 | 4 | 97.8° | 70.2° | 126° | 71.4° | 52.1° | 90.3° | ø8.8 | ø14.0 | 30cm-∞ | 5.9g | 15.1 | 3.9 | 2.6 | 3 | 2 | 3.6 | 20.4 | $25.99 |
| V-4303-2.0FT [EOL] | 3.0mm | 2 | 1/3" | 5.75 | 4 | 97.8° | 70.2° | 126° | 71.4° | 52.1° | 90.3° | ø8.8 | ø14.0 | 30cm-∞ | 5.9g | 15.1 | 3.9 | 8.2 | - | - | 3 | 20.4 | $25.99 |
| V-4303.6-1 [EOL] | 3.6mm | 2 | 1/3" | 4.55 | 5 | 78.6° | 59.3° | 104° | 58.8° | 44° | 72.7° | ø8.0 | ø14.0 | 40cm-∞ | 5.0g | 16.1 | 3.7 | 5.3 | 2.5 | 2 | 2.6 | 19.8 | $27.15 |
| V-4303.6-1-2FT [EOL] | 3.6mm | 2 | 1/3" | 4.55 | 5 | 78.6° | 59.3° | 104° | 58.8° | 44° | 72.7° | ø8.8 | ø14.0 | 40cm-∞ | 5.0g | 16.1 | 3.7 | 5.3 | 2.5 | 2 | 2.6 | 19.8 | $27.15 |
| V-4303.6-1.8 | 3.6mm | 1.8 | 1/3" | 4.7 | 4 | 78.6° | 59.3° | 104° | 58.8° | 44° | 72.7° | ø8.6 | ø14.0 | 40cm-∞ | 5.5g | 15.6 | 3.7 | 3.3 | 3 | 2 | 3.4 | 20.3 | $27.15 |
| V-4303.6-4 [EOL] | 3.6mm | 2 | 1/3" | 5.6 | 4 | 78.6° | 59.3° | 104° | 58.8° | 44° | 72.7° | ø8.6 | ø14.0 | 40cm-∞ | 5.5g | 15.6 | 3.7 | 3.3 | 3 | 2 | 3.6 | 20.7 | $27.15 |
| V-4304-1 | 4.0mm | 2 | 1/3" | 6.7 | 4 | 70.1° | 52° | 98° | 52° | 38° | 64.6° | ø8.0 | ø15.0 | 40cm-∞ | 5.0g | 16.2 | 3.7 | 4.5 | 3 | 2 | 3 | 22.4 | $27.15 |
| V-4304.3-2.0 | 4.3mm | 2 | 1/3" | 6.4 | 4 | 65.7° | 48.6° | 85° | 49° | 36.7° | 61.2° | ø8.0 | ø15.0 | 40cm-∞ | 6.0g | 15.6 | 3.3 | 4.2 | 3 | 2 | 3 | 21.4 | $27.15 |
| V-4305.7-2.0 | 5.7mm | 2 | 1/3" | 7.7 | 5 | 47.1° | 36.2° | 57° | 35.5° | 26.8° | 44.8° | ø8.0 | ø15.0 | 40cm-∞ | 4.2g | 13.1 | 3.3 | 2.6 | 2.5 | 2 | 2.7 | 20.4 | $27.15 |
| V-4305.7-1.3-A [EOL] | 5.7mm | 1.4 | 1/3" | 5.2 | 5 | 47.1° | 36.2° | 57° | 35.5° | 26.8° | 44.8° | ø8.0 | ø15.0 | 40cm-∞ | 5g | 15 | 3.3 | 3.2 | 3 | 2 | 3.52 | 20 | $34.00 |
| V-4306.5-2.0 [SPECIAL ORDER MOQ] | 6.5mm | 2 | 1/3" | 6.5 | 4 | 44.8° | 33° | 56° | 29.9° | 24.8° | 41.6° | ø5.0 | ø15.0 | 40cm-∞ | 4.5g | 12.8 | 3.7 | 7.6 | - | - | 1.5 | 18.6 | $27.15 |
| V-4308 | 8.0mm | 2 | 1/3" | 9.1 | 5 | 28° | 20.9° | 39° | 21.6° | 16° | 26.6° | ø8.0 | ø15.0 | 40cm-∞ | 5.7g | 19.3 | 3.3 | 8.8 | 3 | 4 | - | 25.3 | $27.15 |
| V-4308-2 | 8.0mm | 2.5 | 1/3" | 6.33 | 3 | 28° | 20.9° | 39° | 21.6° | 16° | 26.6° | ø4.2 | ø15.0 | 80cm-∞ | 3.4g | 13.5 | 3 | 3 | 2.5 | 2 | 3 | 19.4 | $32.00 |
| V-4308-2FT | 8.0mm | 2.5 | 1/3" | 6.33 | 3 | 28° | 20.9° | 39° | 21.6° | 16° | 26.6° | ø4.2 | ø15.0 | 80cm-∞ | 3.4g | 13.5 | 3 | 7.5 | - | - | 3 | 19.4 | $32.00 |
| V-4312 | 12.0mm | 2 | 1/3" | 9.4 | 3 | 22.2° | 16.6° | 27.9° | 16.9° | 12.5° | 20.9° | ø6.0 | ø15.0 | 80cm-∞ | 3.2g | 12 | 4 | 2 | 2.5 | 3.5 | - | 18.4 | $32.00 |
| V-4312-FT | 12.0mm | 2 | 1/3" | 10 | 3 | 22.2° | 16.6° | 27.9° | 16.9° | 12.5° | 20.9° | ø6.0 | ø15.0 | 80cm-∞ | 4.0g | 12 | 4 | 6 | - | - | 2 | 19 | $32.00 |
| V-4316-2.0 | 16.0mm | 2 | 1/3", 1/4" | 12.3 | 3 | 15.9° | 11.42° | 20.4° | 11.4° | 9.14° | 14.8° | ø9.6 | ø14.0 | 80cm-∞ | 4.2g | 14.5 | 4.5 | 4.5 | 3.0 | 2.5 | ~ | 23.1 | $32.00 |
| V-4316-2.5 | 16.0mm | 2.5 | 1/3", 1/4" | 12.3 | 3 | 15.9° | 11.42° | 20.4° | 11.4° | 9.14° | 14.8° | ø9.6 | ø14.0 | 80cm-∞ | 4.2g | 14.5 | 4.5 | 4.5 | 3.0 | 2.5 | ~ | 23.1 | $32.00 |
| V-4325 | 25.0mm | 2.5 | 1/3", 1/4" | 11.8 | 4 | 10.7° | 7.8° | 13.5° | 8.2° | 5.9° | 9.9° | ø15.0 | ø25.0 | 20cm-∞ | 18g | 23.2 | 6.7 | 9.2 | ~ | ~ | 7.3 | 31.3 | $49.99 |
| V-4335-2.0 | 35.0mm | 2 | 1/3", 1/2" | 18.9 | 4 | 7.3° | 5.4° | 9.8° | ° | ° | ° | ø15.9 | ø25.0 | 20cm-∞ | 15.4g | 23.5 | 6 | 3.0 | 7.5 | ~ | 7.3 | 39.3 | $74.95 |
| V-4350-2.5 | 50.0mm | 2.5 | 1/3", 1/2" | 33.9 | 4 | 5.1° | 3.7° | 6.8° | ° | ° | ° | ø20.6 | ø27.0 | 40cm-∞ | 27.1g | 52.8 | 8 | 16 | - | 17.8 | 11.0 | 56.9 | $49.99 |
