Here, Now!
NEW HIGH TEMPERATURE HARSH ENVIRONMENT PINHOLE LENS
HIGH TEMPERATURE HARSH ENVIRONMENT FURNACE PINHOLE LENS PROCESS VIDEO CLIPS
CLICK HERE

448, 450, 452, 463, 743, 820mm length models

135°, Forward, 90° direction of view, 3.3mm, 7.5mm focal lengths, CS-Mount

New 600 high Temperature Lense


V-PL-HITEMP-448 X 120 $1,238.00 3.3mm F3.5 HiTemp CS-Mt 448mm OL 120° PH Lens
V-PL-HITEMP-450 X 135 $1,238.00 3.3mm F3.5 HiTemp CS-Mt 450mm OL 135° PH Lens
V-PL-HITEMP-452 $1033.00 3.3mm F3.5 HiTemp CS-Mt 452mm OL PH Lens
V-PL-HITEMP-463 X 90 $1099.00 7.5mm F4.5 HiTemp CS-Mt 463mm OL 90° PH Lens
V-PL-HITEMP-743 X 120 $2188.00 3.3mm F3.5 HiTemp CS-Mt 743mm OL 120° PH Lens
V-PL-HITEMP-820 $2,518.00 3.3mm F3.5 HiTemp CS-Mt 820mm OL PH Lens
* Click PN for data sheet.


V-PL-HITEMP 448 X 120 High tem harsh environment pinhole lens diagram
V-PL-HITEMP-448 X 120

450 x 135 High tem harsh environment pinhole lens diagram
V-PL-HITEMP-450 X 135

452mm High tem harsh environment pinhole lens diagram
V-PL-HITEMP-452

452mm High tem harsh environment pinhole lens diagram

V-PL-HITEMP-463 X 90

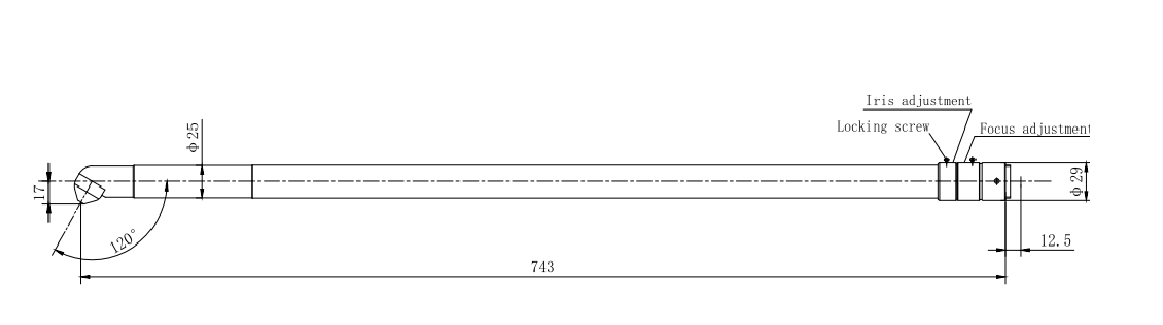

V-PL-HITEMP-743 x 120 High tem harsh environment pinhole lens diagram

V-PL-HITEMP-743 X 120

V-PL-HITEMP-820 High tem harsh environment pinhole lens diagram

V-PL-HITEMP-820

400 - 900mm Length Models HIgh Temperature Maximum Operating Time / Temperature
Continuous operation up to 150° C
Continuous lens front operation: -80°C - +400°C
Entire lens: Four hours operation up to 200° C
Entire lens: Two hours operation up to 250° C

[Lens only; camera must have cooling capability as needed.]
