Pro HD/4K Cameras

The Marshall CV366 camera delivers exceptional full-HD video with true-color and offers the unique ability to sync cameras via Tri-Level (Genlock) Sync. The Tri-Level Sync method runs at higher frequency which makes transition faster and more seamless.


CV366

Compact Genlock Camera
(3GSDI & HDMI)

Owner's Manual Camera Tips and Tricks Download Camera Control Software Download Latest Firmware Visca Command List Color Matrix Guide Hirose 12-pin Connector Pinout Download Images

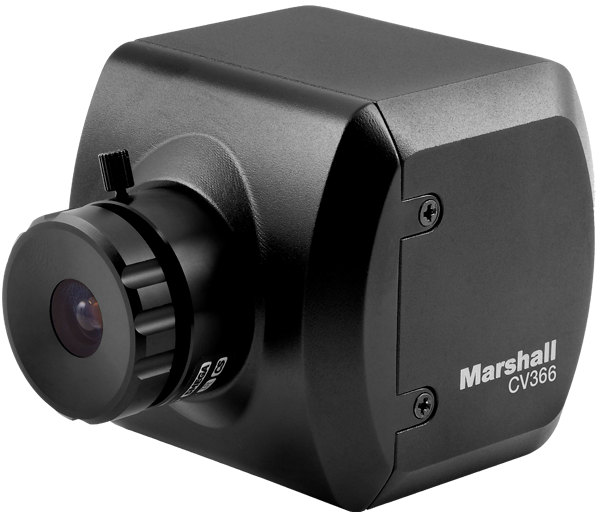

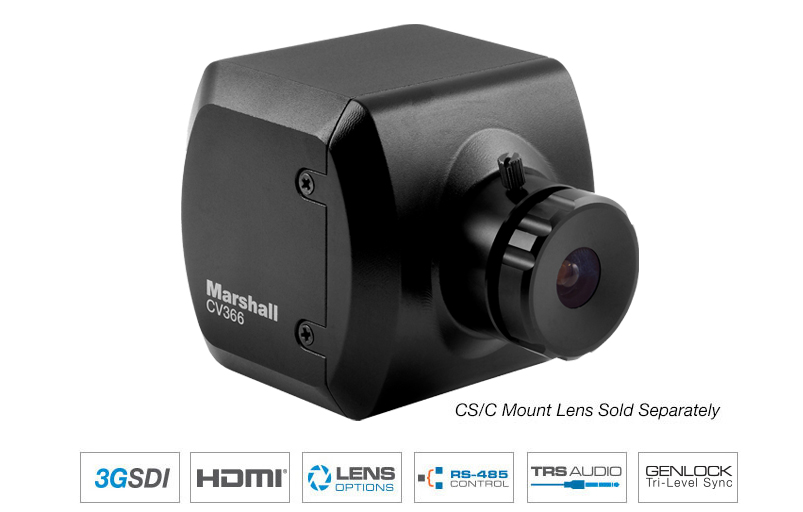

The Marshall Compact CV366 Genlock Camera is built around a next generation Sony 1/2.8" solid-state sensor with 2.2 Megapixels and Tri-Level (Genlock) Sync feature. CV366 delivers exceptional video performance through 3GSDI and HDMI simultaneously with true-color even in low-light (0.01Lux). Choose HD resolutions up to 1920x1080p (progressive), 1280x720p (progressive) & 1920x1080i (interlaced) with a wide selection of framerates including 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60fps serving a variety of applications. * All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.


CV366 has New Sony 1/2.8 inch (6.46mm) CMOS Solid-Sate Image Sensors

New Sony 1/2.8" (6.46mm) CMOS Solid-Sate Image Sensors

The next generation Sony Exmor sensors provide clear HD images with true color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR light wavelengths can be captured.

CV366 Genlock Tri-level Sync

Genlock Tri-Level Sync Feature

Tri-level sync runs at higher frequency which allows multiple cameras to be plugged into HD workflows already in sync (genlock) with much less latency when switched and more seamless transitions.

CV366 is a Durable, Flexible, and Powerful

Durable, Flexible, Powerful

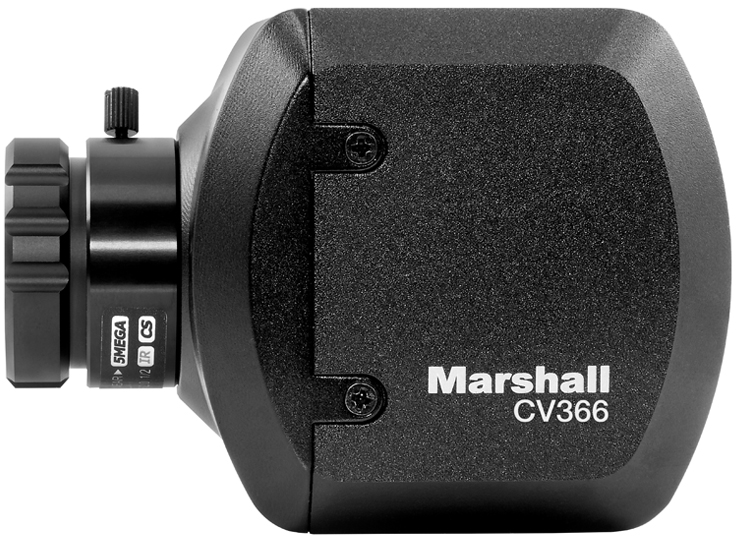

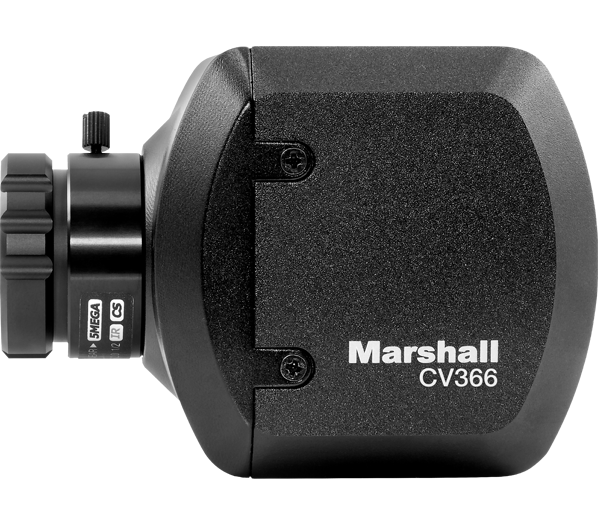

The durable CV300-series cameras are chiseled from one block of aluminum alloy with rear panel protection, which enable them to be used in rough environments and continue to produce clean reliable signals.

CV366 Broadcast Performance

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter.

  • 2.2 Megapixel (1/2.8") Sony sensor
  • Color Matrix function: Style, Master Level, Master Phase, Color Level, Color Phase
  • Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz
  • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current

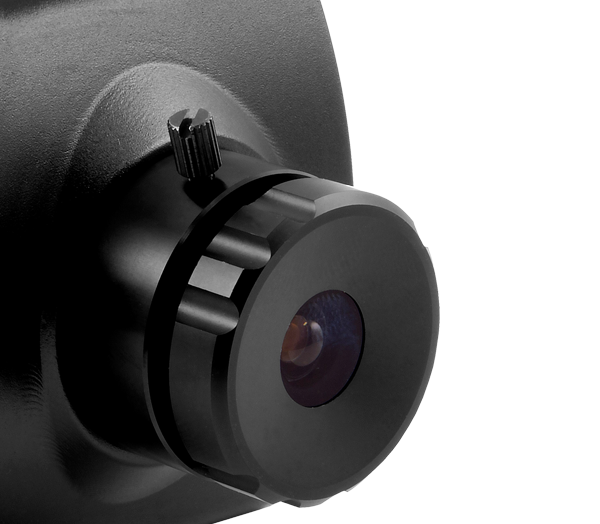

  • Durable body with rear connection protection ears and flexible CS/C lens mount

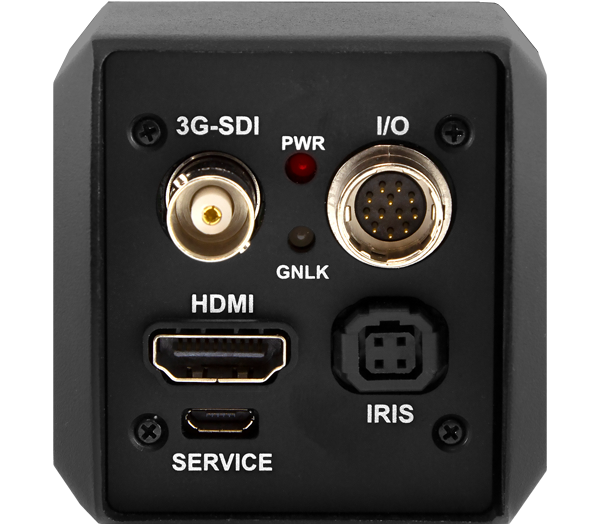

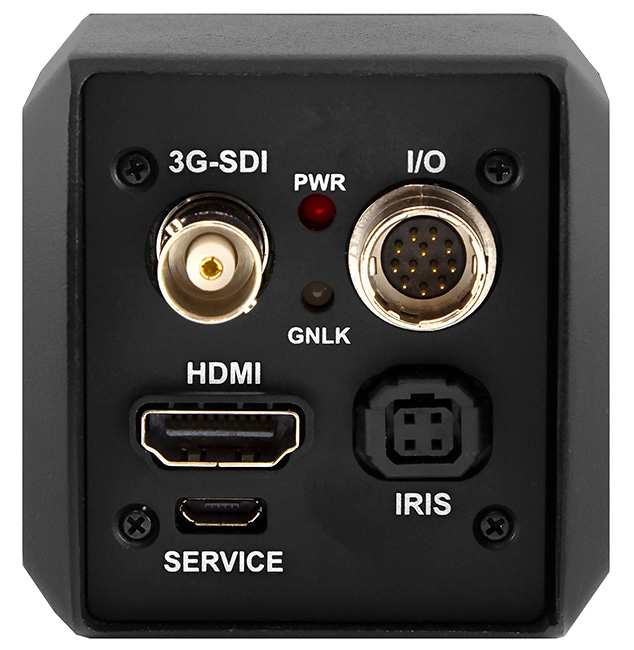

  • 3GSDI + HDMI outputs with Genlock 3G/HD-SDI Tri-Level Sync for quick switching
  • HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i
  • Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources
  • Micro-USB port for firmware upgrades in the field (downloadable from website)
  • Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
  • Includes 12V+/-10% Power Supply (6W)


Applications:

The 366 is suitable for use in 3GSDI as well as HDMI workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, concerts, house of worship and many more.

Lens Options

CS mount Varifocal Manual Focus Lens options for CV344, CV346, CV366, CV368
  Part No. Mount Type Megapixel Rating Focal Length Horizontal AOV Iris F-Stop M.O.D.
CS mount 3MP Varifocal Lens VS-M2812-4MP CS Mount 4MP 2.8~12mm 110°~25° DC Auto (4 pin) F1.4~close 0.3m
CS mount 3MP Varifocal Lens VS-M550-5 CS Mount 3MP 5~50mm 55°~6° DC Auto
(4 pin)
F1.4 0.3m
CS mount 3MP Varifocal Lens VS-M660 CS Mount 3MP 6~60mm 50°~5° DC Auto
(4 pin)
F1.4 0.3m
CS2810MP 10MP CS mount focal length Iris F-stop focus range CS2810MP CS Mount 10MP 2.8mm 105.6° Manual F1.6 0.3m
CS1150-8MP 8MP CS mount focal length Iris F-stop focus range CS1150-8MP CS Mount 8MP 11~50mm 45°~10°approx DC Auto (4 pin) F1.4~close 0.8m
CS-3.2-12MP CS-3.2-12MP CS 12MP 3.2mm 131° Fixed F2.0 0.3m~∞
CS3610-8MP CS3610-8MP CS Mount 8MP 3.6~10mm 107~45.6° (1/8") DC Auto
(4 pin)
F1.5 0.3m~∞
CS-3816-8MP CS-3816-8MP-V2 CS 8MP 3.8~16mm 68°~18° (1/2.8") DC (4 pin) F1.4 (W) ~ 1.6 (T) 0.5m~∞
C1670-8MP 8MP CS mount focal length Iris F-stop focus range C1670-8MP C Mount 8MP 16~70mm 30°~7°approx DC Auto (4 pin) F1.4~close 0.8m


Fixed Prime (CS mount) Lens options for CV344, CV343, CV346, CV345, CV365, CV366, CV366
  Part No. Megapixel Rating Focal Length Horizontal AOV F-Stop M.O.D.
Fixed Prime CS mount lens V-555.0-5MP-VIS-IR 1/2 5MP 5.0mm 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") F2.0 0.8m - ∞
Fixed Prime CS mount lens V-557.6-5MP-VIS-IR 1/2 5MP 7.6mm 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") F2.0 1.5m - ∞
