4-Input Seamless 3G/HDSDI Switcher with Quadview

Owner's Manual VSW-2200 RS232 Control ProtocolVSW-2200 Technical NotesDownload ImagesDownload Latest Software

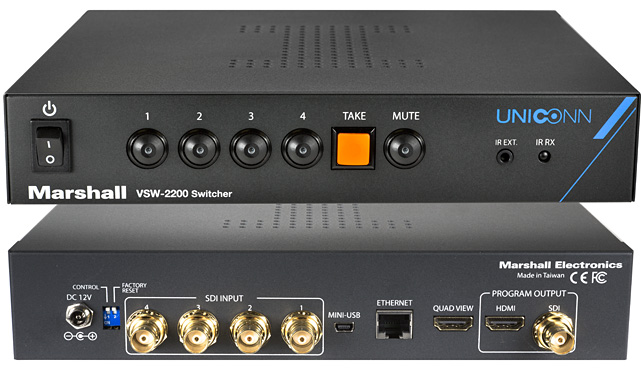

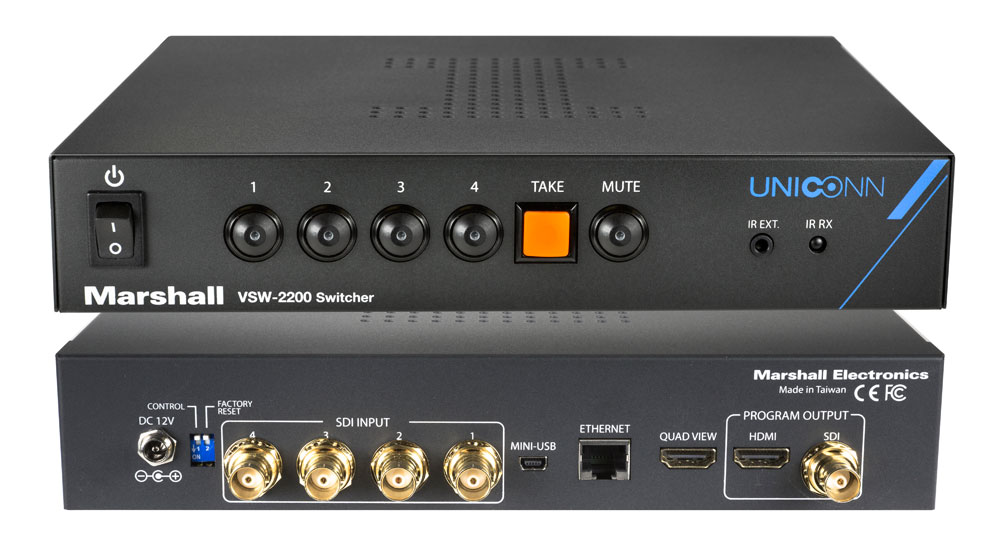

4-Input Seamless 3GSDI audio-video Switcher with Quadview

The VSW-2200 allows seamless switching between up to 4 HD-SDI video feeds, delivering broadcast-quality transitions for live broadcasts, teleconferences or live-streamed events. All four inputs may be simultaneously monitored in a single “Quad-View” display. In addition to the four live inputs, the VSW-2200 can store up to four still images for use as full-screen graphics pages. Switching is seamless between video sources whether interlace or progressive, varying resolutions and differing frame rates. The embedded processor converts signals from various input source formats to match the native resolution of monitors, flat panel displays, projectors, encoders, etc. Program and Quad-view outputs are separately selectable up to 1920x1080 @ 50/60 fps. Program Output is provided in both SDI and HDMI formats while the Quad-view is output only via HDMI.

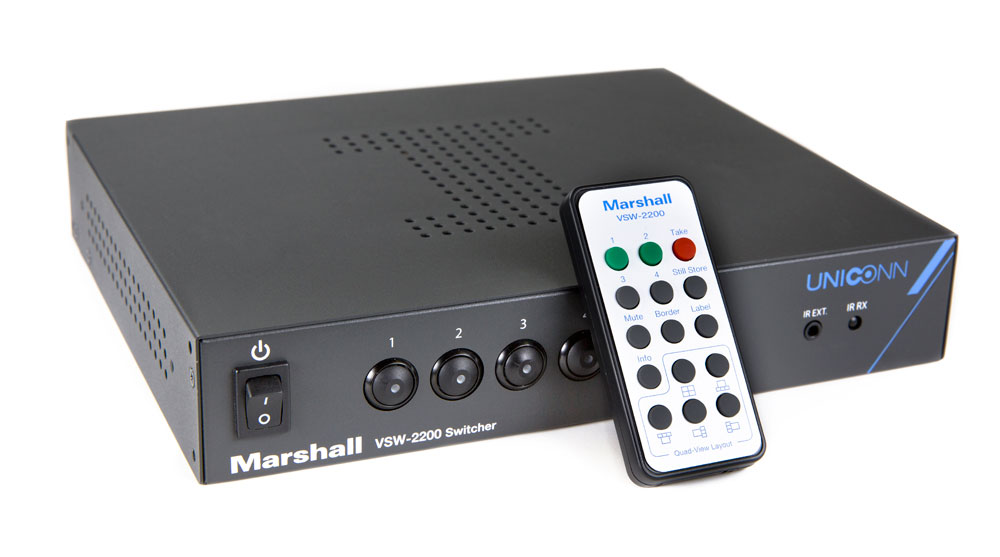

Flexible control is provided using the front panel buttons, hand-held remote, or connected to USB and Ethernet computer interfaces. The included software control application provides adjustment of Brightness, Contrast, Saturation, Horizontal and Vertical Positioning, Quad-View Layout, Labels and Borders.

  • 4 Inputs, supports clean swi tching between 3G/HD/HD-SDI formats
  • SDI & HDMI Switched Output, HDMI Preview Output
  • Controllable via Ethernet, USB or IR remote allowing flexible system design
  • Inputs provide re-clocking, equalization, scaling and up/down conversion
  • Ideal for small to medium-sized conferences or productions
  • Desktop or rack-mountable (1 RU)
  • Supports video formats from PAL & NTSC up to 1080p50/59.94/60

VSW-2200 Applications:

• Broadcast Television • Live Broadcasts • Teleconferences • Live-Streamed Events

VSW-2200 specifications
Video Inputs 4 x BNC (3G,HDSDI)
Input Formats Supported 480i59.94, 576i50, 720p50/59.94, 1080i50/59.94, 1080p23.98/24/25/50/59.94/60
Embedded Audio support Pass or mute 2-channel or one 5.1 surround mix from SDI (48KHz sample rate)
Video Outputs (Program) 1 x BNC (3G, HDSDI) & 1 x HDMI
Program Output Formats 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/25/29.97/30/50/59.94/60
Video Output (Preview) 1 x HDMI
Preview Output Formats 720p50/59.94/60, 1080p23.98/25/29.97/30/50/59.94/60
Housing Metal enclosure
Dimensions [L x W x H] Model: 239 x 201 x 44 mm [9.4” x 7.9” x 1.8”]
Package: 376 x 240 x 112 mm [14.8” x 9.4” x 4.4”]
Carton: 590 x 510 x 405 mm [1.9” x 1.6” x 1.3”]
Weight Model: 1.2kg
Package: 2kg
Mounting 1RU x ½ width case with rack mounting ears (included)
Power supply 12VDC @ 5A (included)
Power consumption 14.5 Watts Nominal
Operation Temperature 0~40°C [32~104°F]
Storage Temperature -20~60°C [-4~140°F]
Relative Humidity 20~90% RH [no condensation]
ESD protection Human body model - ±12kV [air-gap discharge] & ±8kV [contact discharge]

Flexible Broadcast A / V Solutions with VSW-2200 Seamless Switcher

4 Input Seamless 3G Switcher set up diagramm

VSW-2200 GUI

Main Menu

Seamless 3G/HDSDI Switcher gui interface
The Main Menu is designed to provide a very simple and clean interface.
Operation of this screen is designed to mimic manual operation of VSW-2200, with a few select differences:
The Still Store button turns the stored image on and off. If there is no stored image, the button will have no effect.
The Take Enable check box selects the operating mode. When it is checked, the switcher will be in Preset/Take mode.
When unchecked, the switcher is in Immediate Take mode.

Menu Settings

Seamless 3G/HDSDI Switcher graphical user interface
1. Quad-View Layout area. This area shows graphically how the Input Sources will be arranged in the Quad-View output (HDMI) from the switcher.
This graphic represents the location and text of the labels, as well as the Input which is currently selected as the Program output.
The active Input is shown with a highlighted border.
2. Layout Selection area. Five different Quad-View layouts are available by clicking on one of the five icons located below the graphic.
3. Switcher Control area. This area has the same functions as the Main Menu screen.
4. Label area. Type the desired name for each Input here then click on the Apply button to make the label appear on the Quad-View output.
5. Label Position area. Select a label position for each label from the pull down menus then click the Apply button.
6. Border/Label area. Select whether the Quad-View borders and labels appear on screen.
7. Quad-View Out. Select the desired video output format of the Quad-View (HDMI). The format will change immediately, as a selection is made.
