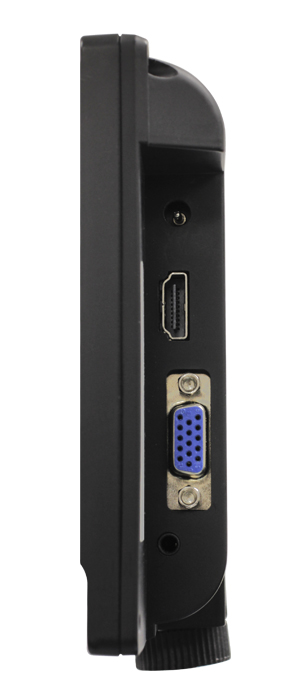

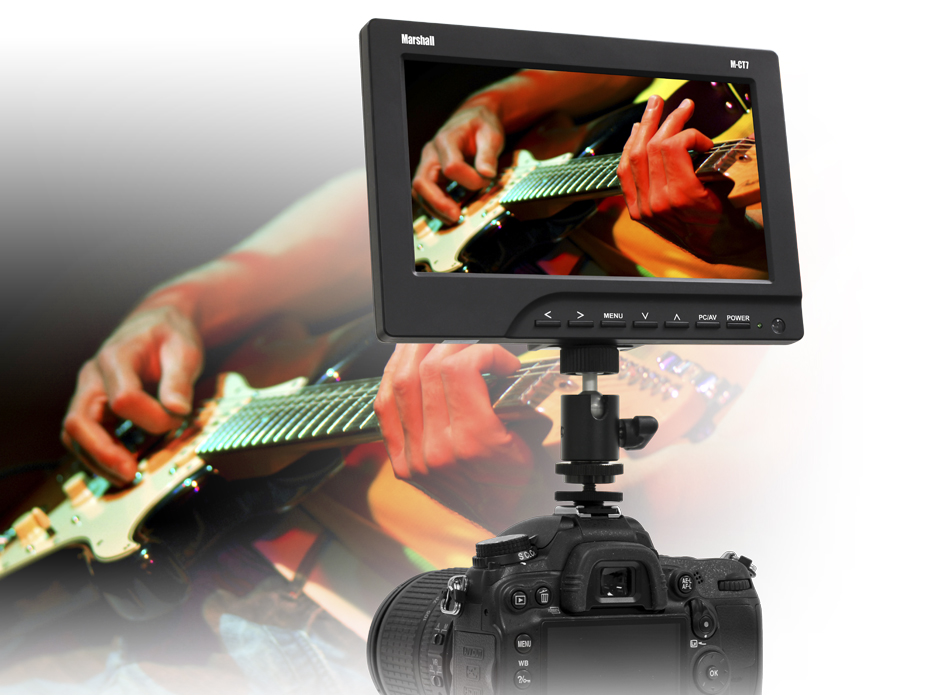

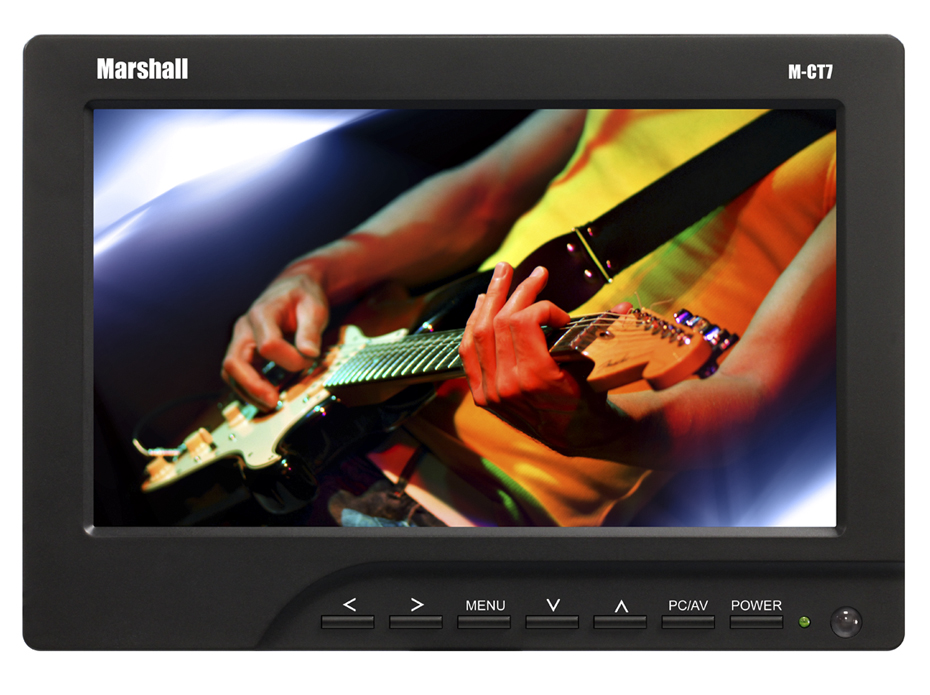

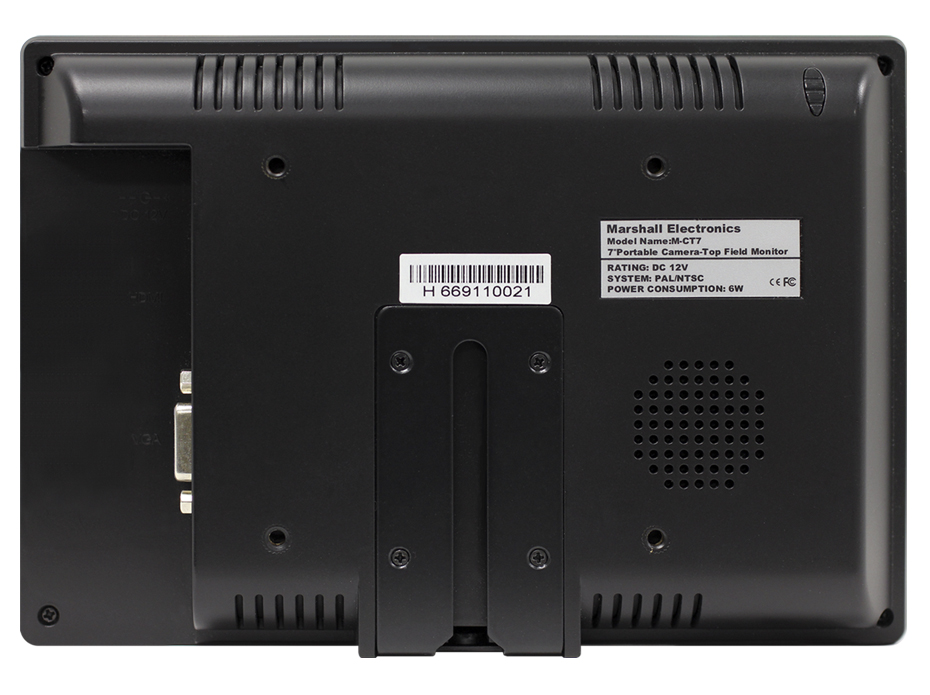

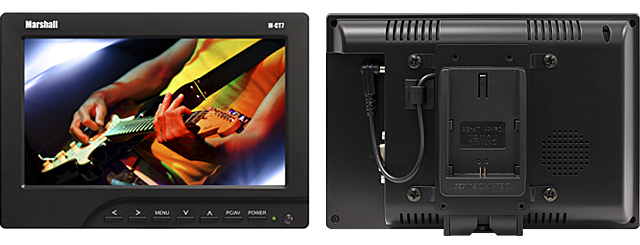

The M-CT7 monitor kit provides a lightweight 7" 800 x 480 LCD monitor with HDMI that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. This unit offers two composite video inputs and one audio input, along with HDMI and VGA (PC) connectivity. A variety of features include a Rear Speaker for audio monitoring, Auto Aspect Ratio Detect, Image Flip/Flop and Color Temperature Adjustment (HDMI/PC).

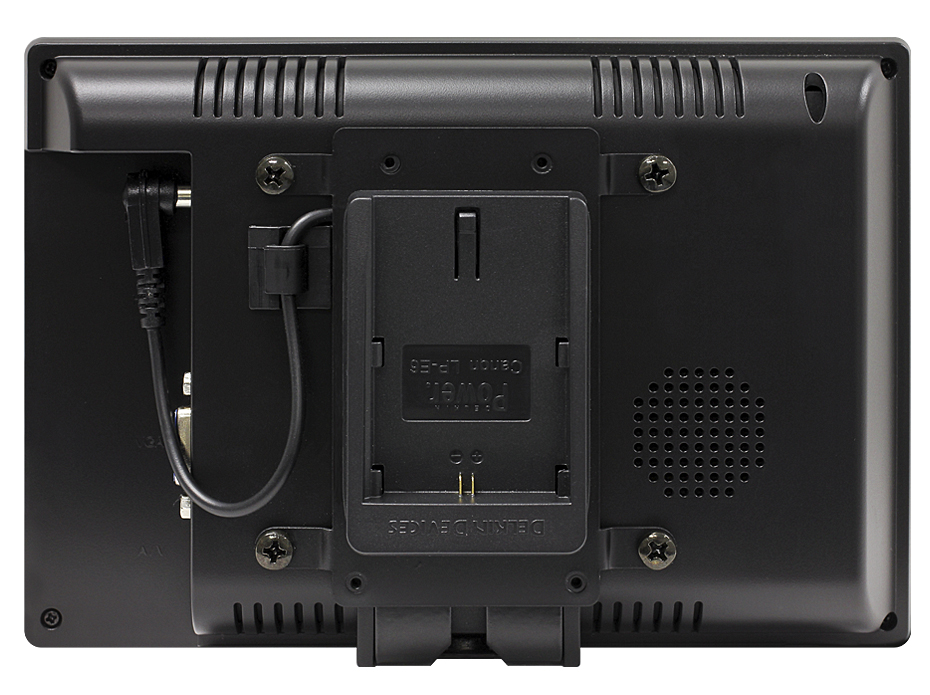

Users also have the ability to power this monitor using a standard DSLR battery*. This feature allows the monitor to be powered using an existing DSLR battery for mobile on-the-go monitoring.
Accessories provided include Mini HDMI to HDMI cable, standard HDMI cable, A/V cable, cigarette lighter adapter, AC/DC power supply, hot shoe camera mount adapter, remote control, battery plate*, DSLR battery* and battery charger.*
* User may configure their kit by choosing one of the following battery adapters that are currently being offered:
· Canon BP511 (M-CT7-C511)
· Canon LP-E6 (M-CT7-CE6)
· Nikon EN-EL3e
Optional Battery Adapters:
Canon BP-970G / JVC BN-V438U / Panasonic CGA-D54 / Panasonic VW-VBG6 / Sony NP-QM91 / Sony NP-F970Batteries and battery charger are generic and considered equivalent to original manufacturer's equipment.
| M-CT7-AA | 7" TFT LCD HDMI LED Backlight Camera Top Monitor w AA Battery Holder |
$323.00*
|
| M-CT7-AAK | 7" TFT LCD HDMI LED Backlight Camera Top Monitor w AA Battery Holder, 2 AA Batteries & Charger |
$368.00*
|
| M-CT7-C511 | 7" TFT LCD HDMI LED Backlight Camera Top Monitor w Canon BP-511 Battery Assembly (Replaces M-LCD7-HDMI-C511) |
$323.00*
|
| M-CT7-CE6 | 7" TFT LCD HDMI LED Backlight Camera Top Monitor w Canon LP-E6 Battery Assembly (Replaces M-LCD7-HDMI-CE6) |
$323.00*
|
| M-CT7-NEL15 | 7" LCD Monitor with NEL 15 battery/charger |
$323.00*
|
| Viewable Area / Type | 7" TFT LCD |
| Resolution (Pixels) | Up to 1920(H) x 1440(V) |
| Pixels | 800 x 480 |
| Aspect Ratio | 16:9 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 500:1 |
| Viewing Angle | 70°/70° (L/R), 50°/70° (U/D) |
| Audio Output | 2.5W / 8 ohms x 2 |
| Input Signal | AV1, AV2, HDMI, VGA |
| Backlight | LED |
| Voltage | DC 12v ±15% |
| Operating Temperature | -4°F-131°F / -10°C-75°C |
| Power Consumption | <6W |
| Dimensions | 7.2"W x 5.0"H x 1.2"D |
| Weight (w/o battery) | 14.1oz / 400g |
Included Accessories:
- Standard Mini HDMI to HDMI cable
- HDMI to HDMI cable
- A/V Cable
- Power Supply
- Car Charger
- Remote Control
- Hot shoe mount
- Battery
- Battery Charger
- User manual
* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
