M-CT710 is a 7-inch 1024 x 600 Native Resolution LCD display attaches directly to DSLR or HD video cameras, HDMI Pass-Through, Peaking Filter, Video monitor for photographers and videographers,focus clearly and take the guesswork out of framing. Converts tiny built-in camera screen to easy-to-view display. Shoot hard-to-reach places without ladders, stools or hazardous climbing


M-CT710

7" High Resolution Portable Camera-Top Field Monitor

Owner's Manual Spec Sheet

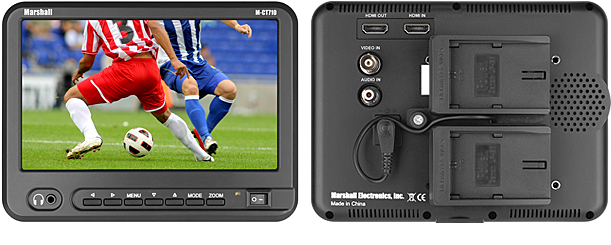

M-CT710 7 inch High Resolution Portable Camera-Top Field Monitor
  • 7-inch 1024 x 600 Native Resolution LCD display

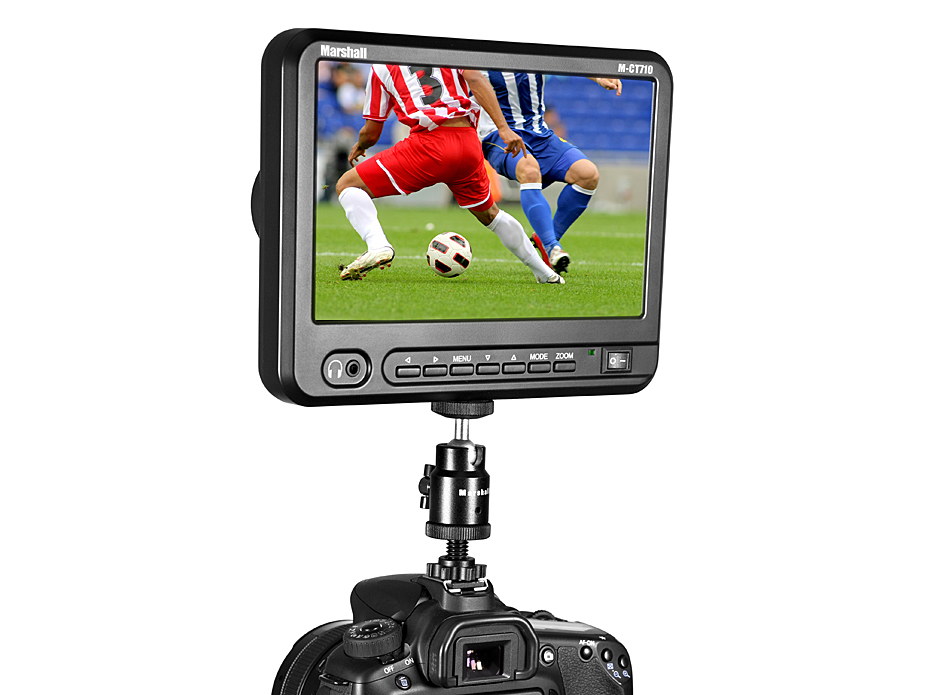

  • Attaches directly to DSLR or HD video cameras
  • HDMI Pass-Through
  • Peaking Filter
  • A must-have tool for photographers and videographers
  • Focus clearly on shots and take the guesswork out of framing
  • Converts tiny built-in camera screen to easy-to-view display
  • Shoot hard-to-reach places without ladders, stools or hazardous climbing

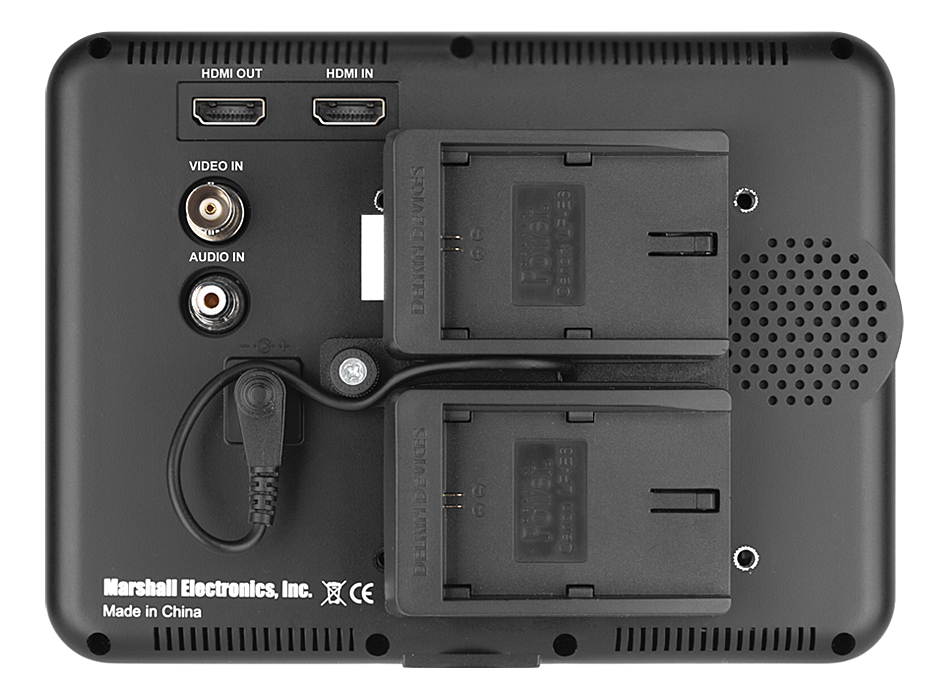

  • The M-CT710 monitor kit provides a lightweight 7-inch 1024 x 600 LCD monitor with HDMI In/ Out that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. This unit offers a compostite video input and audio input, along with HDMI In/Out connectivity. A variety of features include a 3.5mm stereo headphone jack, rear speaker for audio monitoring, Auto Aspect Ratio Detect, Zoom, Image Flip/Flop and full Color Adjustment, and Focus Aid (Peaking Filter). Users also have the ability to power this monitor using a standard DSLR battery for mobile on-the-go monitoring.

    Accessories provided include a mini-HDMI to HDMI cable, standard HDMI cable, AC/DC power supply, hot shoe camera mount adapter, battery plate, DSLR battery, battery charger and sunhood.




    Compatible with the following batteries:

    Canon BP511 • Canon LPE6 • Nikon EN-EL15 • Nikon EN-EL3 • AA / Canon BP-970G • JVC BN-V438U • Panasonic CGA-D54 • Panasonic VW-VBG6 • Sony NP-QM91 • Sony NP-F970

    Peaking Filter

    The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have these colored highlights. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has the colored highlights.
    The original version of the peaking filter removed the color from the image leaving a black and white picture with Red highlights. This new version not only keeps the original color but adds a choice of four colors, Red, Green, Yellow and Pink to choose from for the highlights as well as adjustable sensitivity for even finer control of focus.

    Please note that this feature is most effective when the subject is properly exposed and contains enough contrast to be processed.


    ORIGINAL FILTER



    NEW PEAKING FILTER

    Subject In-Focus with Filter off

    Peaking Filter with Yellow Highlights
    Subject In-Focus with Filter off   Peaking Filter with Yellow Highlights
    Subject In-Focus with Filter on

    Peaking Filter with Red Highlights
    Subject In-Focus with Filter on   Peaking Filter with Red Highlights

    M-CT710 specifications
    Screen Size 7” TFT LCD
    Resolution 1024 x 600 (Native), up to 1920(H) x 1440(V)
    Video Input HDMI, Composite, Audio (AV)
    Video Output HDMI
    Audio Output 2.5W Speaker, 3.5mm Stereo Jack
    Speaker Yes
    Aspect Ratio 16:9
    Brightness 350 cd/m²
    Contrast 500:1
    Viewing Angles (CR>=10) 75° / 75° (L/R), 70° / 70° (U/D)
    Power Consumption ≤8W
    Input Power 7V-16V
    Dimensions 7.25"W x 5.75"H x 1.125"D
    Weight 12oz / 340g
    Battery Mounts Available DSLR, Camcorder, AA
    Features Peaking (Focus Assist)
    Center Screen Marker
    Screen Marker - 80%, 85%, 90%,93% ,96%
    Field Check -R, G, B, Gray, Normal
    Zoom
    Warranty 2 years, with registration

    Included Accessories:

    • Standard Mini HDMI to HDMI cable
    • HDMI to HDMI cable
    • AC/DC power supply
    • Power Supply
    • Car Charger
    • Sunhood
    • Hot shoe mount
    • Battery
    • Battery Charger
    • User manual

    Quick Change Camera-Top Battery System

    Quick Change Camera-Top Battery System
    quick change base battery plate

    Base Plate

    Part# 0032-1308-A Price: $15.00

    No Tools Required

    Easily change the battery plate on your camera-top monitor using Marshall's Quick Change Camera-Top Battery System. The system consists of a base plate that mounts onto the back of the monitor and accepts different types of battery plates. The base plate and battery plate disengage with the twist of a single screw. No tools are required. Simply turn the screw to remove one battery plate and replace it with another.

    This system is perfect for rental houses, schools, and production studios where multiple cameras may be used with one monitor. When a user switches cameras, the battery plate on the monitor can be replaced in seconds. Marshall's Quick Change Battery System is designed save valuable time when switching easily between different pieces of equipment.

    Base Plate (Part# 0032-1308-A) is supplied with:V-LCD56MD, V-LCD70MD, V-LCD90MD, M-CT710, V-LCD71MD and V-LCD70-AFHD

    Dual universal  battery assembly for Canon and Nicon

    Dual DSLR

    Marshall Product # Description Price
    BP-LPE6-DUAL Canon E6 Dual uni battery assembly
    $39.00*
    BP-NEL15-DUAL Nikon EL15 Dual uni battery assembly
    $34.95*
    BP-NEL 3-DUAL Nikon EL3 Dual uni battery assembly
    $34.95*
    * Batteries are not included
    Marshall Camera-top monitor battery assembly for Panasonic and JVC

    Camcorder Batteries

    Marshall Product # Description Price
    7-CGS-D54-PM Panasonic CGA-D54 battery assembly M-LCD / M-CT7
    $42.00*
    7-NP-F970-SL Sony NP-F970 battery assembly M-LCD / M-CT7
    $42.00*
    7-NP-QM91-SM Sony NP-QM91 battery assembly M-LCD / M-CT7
    $42.00*
    7-VW-VBG6-PV Panasonic VW-VBG6 battery assembly M-LCD / M-CT7
    $45.00*
    7-BN-V438U-JM JVC BN-V438U battery assembly M-LCD / M-CT7
    $42.00*
    7-BP970G-CM Canon BP-970G battery assembly M-LCD / M-CT7
    $42.00*
    * Batteries are not included

    * Pricing does not reflect freight costs and applicable taxes and duties
    * Pricing, specification and features are subject to change
