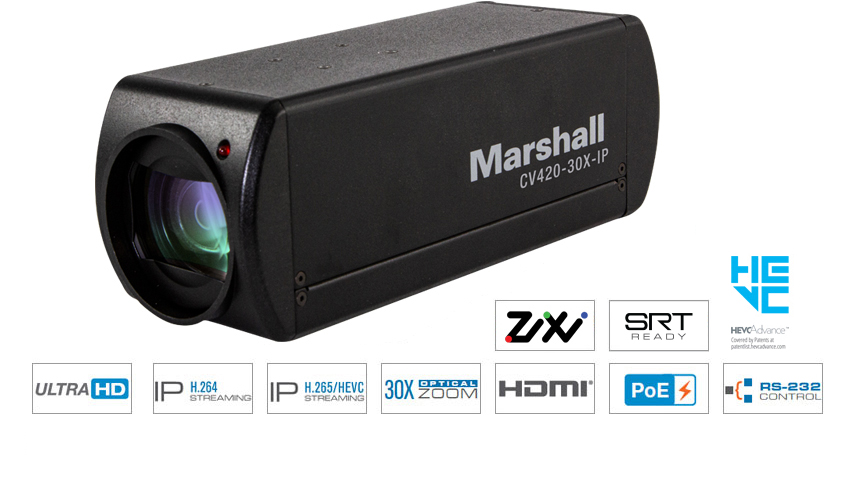

The Marshall CV420-30X-IP (CV42030XIP) 30X Zoom IP Camera captures stunning 4K (UHD) and HD video up to 3840x2160p, with a 30X optical zoom block for enhanced versatility and performance. The CV420-30X-IP can be remotely controlled and adjusted via RS-232 or IP networked control offering the convenience of one Ethernet cable to camera for video, control, and PoE power.


Home | Discontinued Products | CV420-30X-IP - 4K60 30x IP (HEVC) & HDMI

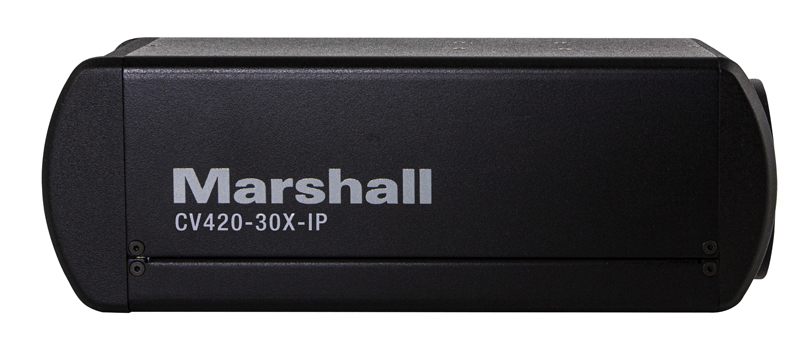

Marshall CV420-30X-IP

4K60 30x IP (HEVC) & HDMI

Download Manual Compare 30x Zoomblock Cameras Cut Sheet Multiple Control Setup Illustration Quick IP Camera Setup Facebook Live Setup Quick Installation Guide 30X IP Zoom Cameras Comparison RS232 to CAT Cable Connectors RS232 Command List Crestron IP Control Modules Download Latest Firmware Video Management Software OBS Studio Plugin & Dock Instructions Marshall Q-SYS Packaged Installation Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP Download Images
The CV420-30X-IP 30X optical zoom IP (HEVC/SRT) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp UHD video up to 3840x2160p at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.


CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model

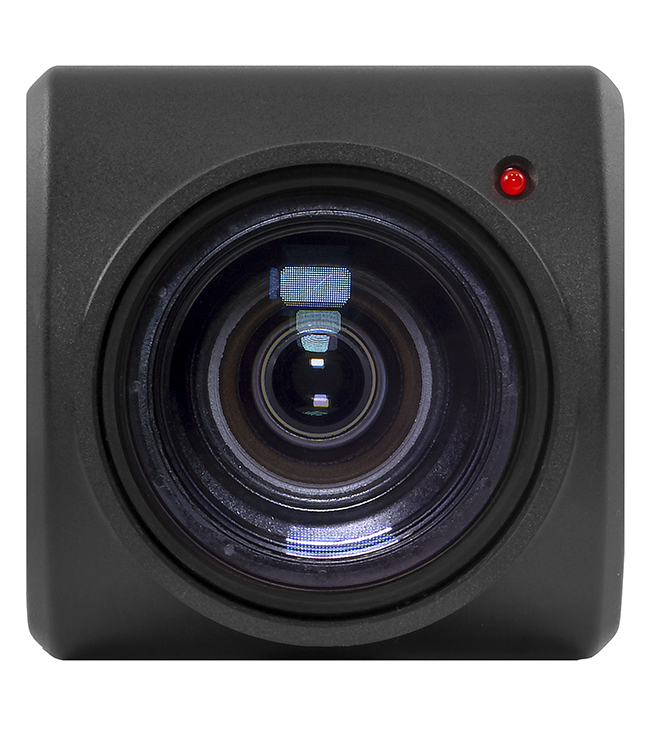

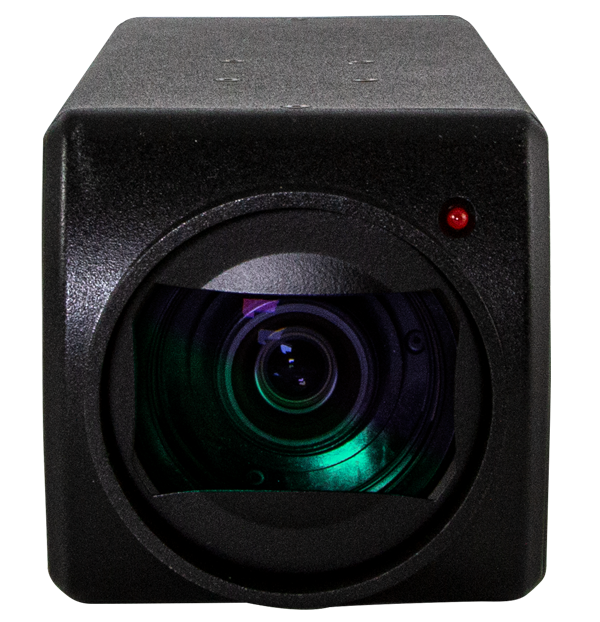

30X Optical Zoom

The 30X optical zoom block offers an extensive zoom range from 4.6mm to 135mm starting at 68° all the way out to 3° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.

CV630-IP is a versatile camera with a 30x optical zoom

IP (HEVC/SRT) Workflow

SRT stands for Secure Reliable Transport. SRT is an open-source video transport protocol and technology stack that optimizes video streaming performance across unpredictable networks. With secure streams and simplified firewall traversal, SRT delivers the best quality video over the worst networks.

CV420-30X IP featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p progressive and 1920x1080i interlaced

Low-light Sensitivity

The CV420-30X-IP operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

VS-PTC-IP is a PTZ camera controller for CV630-IP camera

IP (HEVC) Convenience

One cable to camera provides up to UHD video, audio, control, and power (PoE) over one cable with IP (HEVC) and HDMI simultaneous outputs with stereo audio embedding.

  • 8 Megapixel (1/2.5") HD sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • Up to 3840x2160p, 1920x1080p and 1280x720p
  • Frame rates: 59.94/50/29.97/25fps
  • IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
  • IP (HEVC/SRT) and HDMI simultaneous outputs
  • Ethernet I/O supports video, control, audio and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough

CV420-30X-IP Applications:

The CV420-30X-IP is suitable for use in networked HD and 4K (UHD) workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

CV420-30X-IP Specifications
Housing Color Black
Lens 30x optical zoom
Angle of view (H) 68~3.5°
Minimum working distance 1.5m (Tele/Wide)

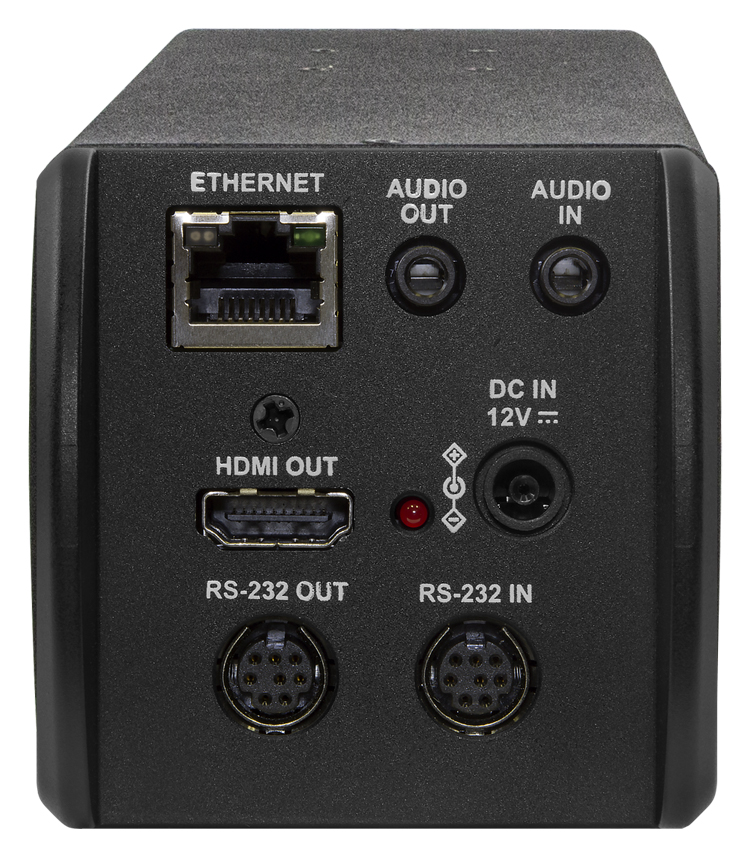

Interface
Power Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
HD Output HDMI 2.0/Ethernet
Control RS-232/Ethernet
OSD English/Chinese
Ouput resolution 3840x2160/59.94p
3840x2160/50p
3840x2160/29.97p
3840x2160/25p
1080p/59.94
1080p/50
1080p/29.97
1080p/25
1080i/59.94 (SDI & HDMI only)
1080i/50 (SDI & HDMI only)
720p/59.94
720p/50
720p/29.97
720p/25
Video Compression Format H.265/H.264
Stream H.265 4K 60fps
H.264 1080p 60fps
H.264 640x360 30fps
Audio in x1
Audio Out x1
Audio Compression Format AAC/G.711
Preset groups 256
Function
Electronic shutter 1/1 to 1/10,000 s
Flip / Mirror Yes
White balance Auto / Manual
Gain Auto / Manual
AE control Auto / Manual
Brightness control Yes
Backlight compensation Yes
Flicker cancel Sync with output mode
Focusing system Auto, One-push AF, Manual
Noise Reduction Yes
Protocols VISCA, PELCO D, VISCAIP, ONVIF
Storage temperature –20°C to +60°C (-4°F to 140°F)
Operating temperature 0°C to 40°C (32°F to 104°F)
Power consumption PoE: 10W
DC In: 9W
Form Factor
Color Black
   Dimension(WxHxD) 67x67x188.4 mm
   Weight 1kg
