The Marshall CV420-30X camera features an 8.5 Megapixel Sony sensor with 30X Optical Zoom range, capturing stunning 4K (UHD) 3840x2160p video up to 60fps through 12GSDI, HDMI and IP (HEVC/SRT). The CV420-30X can be remotely controlled and operated through RS-232, Video Management Software (VMS), Software GUI through web browsers, Plugins/Docks and more offering convenience of one Ethernet (CAT) cable to camera for video, audio, control, tally and power. This camera is a perfect 4K60 camera tool for high quality video capture, streaming or production.


Home | Discontinued Products | CV420-30X - 4K60 30x 12GSDI, IP (HEVC) & HDMI

Marshall CV420-30X

4K60 30x 12GSDI, IP (HEVC) & HDMI

Download Manual Compare 30x Zoomblock Cameras Multiple Control Setup Illustration RS232 to CAT Cable Connectors RS232 Command List Crestron IP Control Modules Download Latest Firmware Video Management Software OBS Studio Plugin & Dock Instructions Marshall Q-SYS Packaged Installation Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP Download ZIXI Firmware (only upload to camera if using Zixi platform) Download Images

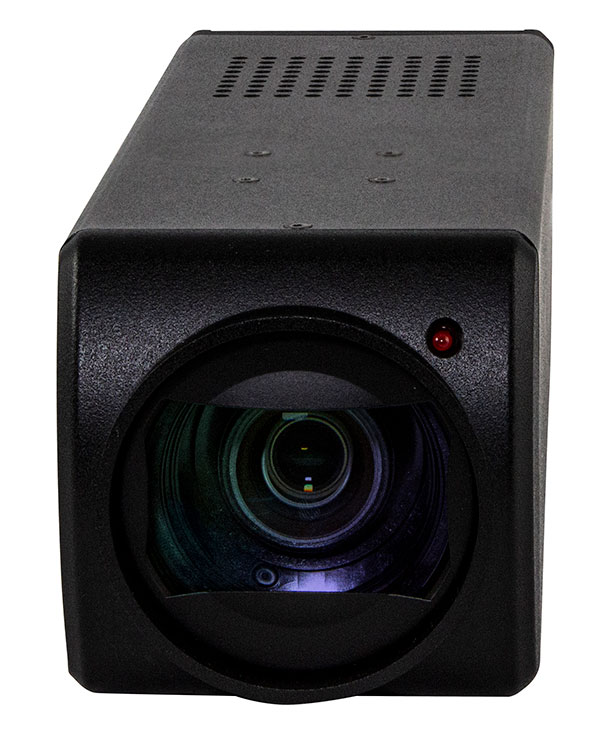

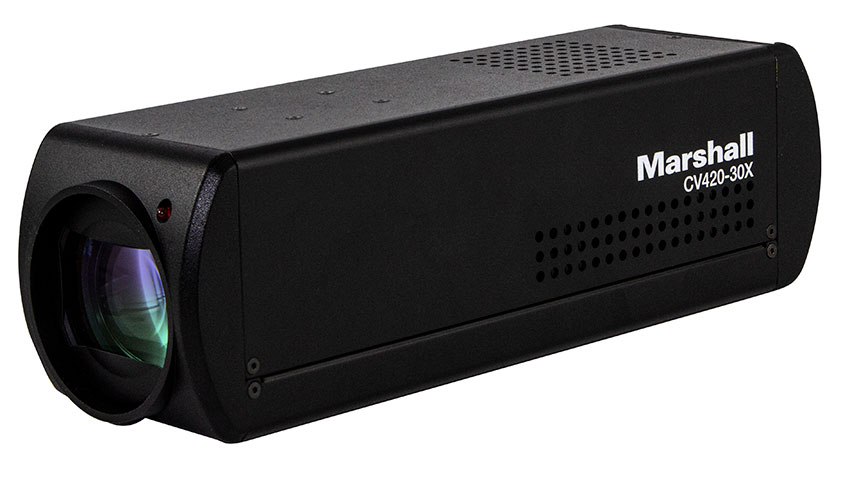

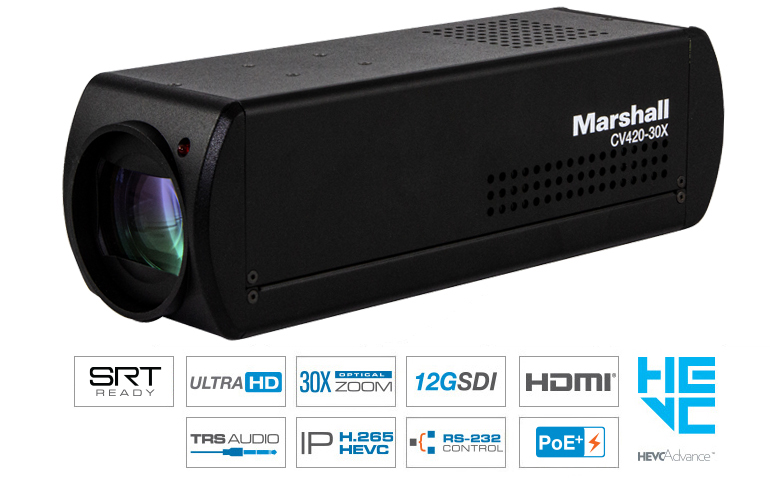

The CV420-30X is a 30X optical zoom 12G-SDI camera utilizes a professional grade 8.5 Megapixel Sony sensor to capture crisp 4K (UHD) video up to 3840x2160p at 60fps through multiple output interfaces including 12GSDI, HDMI and IP (HEVC/SRT). Marshall's straight forward design and ease of use make this camera a valuable camera for a wide variety of broadcast and professional A/V applications. CV420-30X can be setup through the one-cable to camera alternative which uses one Ethernet (CAT) cable to carry power (PoE), video, audio, tally and control over IP.


Ultra-Long 30x Optical Zoom Range

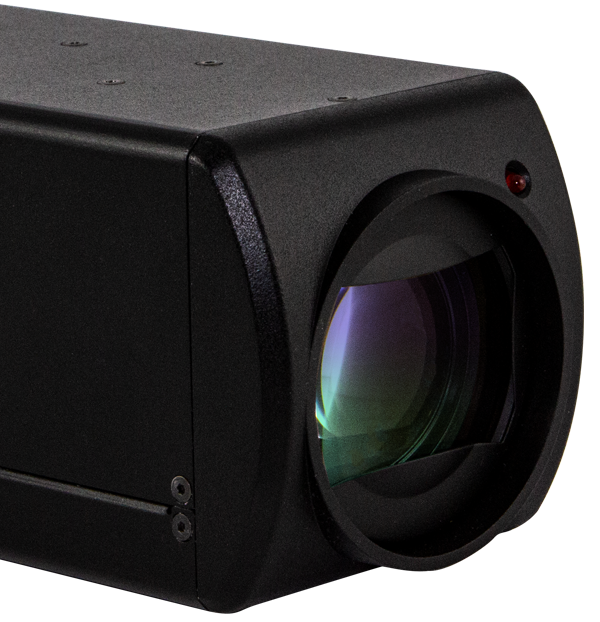

The long 30X optical zoom lens offers an extended zoom range from 4.6mm to 135mm starting at just under 70° all the way out to 3° horizontal angle-of-view for maintaining image crispness from ultra-wide to ultra-long telephoto shots.

CV420-30X - HEVC and SRT with DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, MPEG-TS, RTMP, and RTMPS

12GSDI + IP (Ethernet) Workflow Flexibility

CV420-30X offers 12GSDI (BNC) output as well as three IP streams with multiple protocol support including HEVC and SRT (4K60). SRT is an open-source video transport protocol and technology stack that optimizes video streaming performance across unpredictable networks. Also, DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, MPEG-TS, RTMP, and RTMPS.

CV420-30X - Low-light Sensitivity

Low-light Sensitivity

The CV420-30X operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

4K60 30x 12GSDI, IP (HEVC) and HDMI

One Cable to Camera

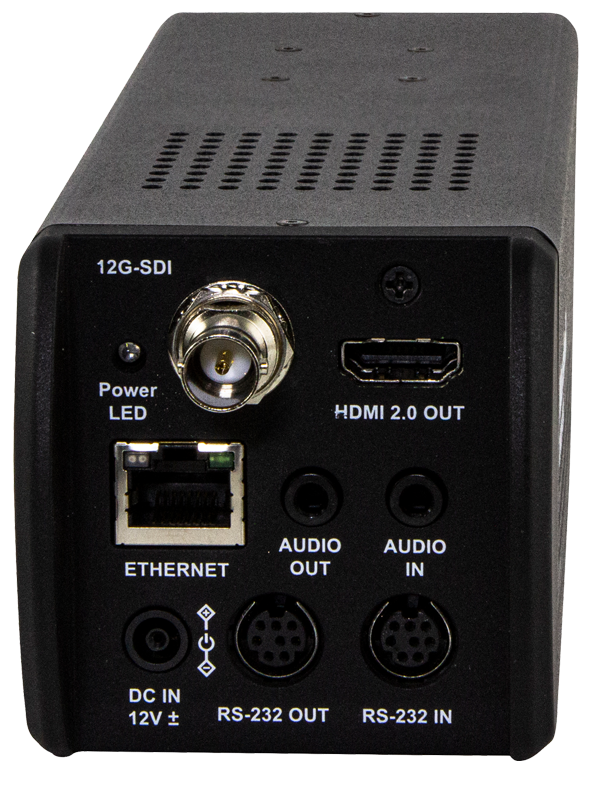

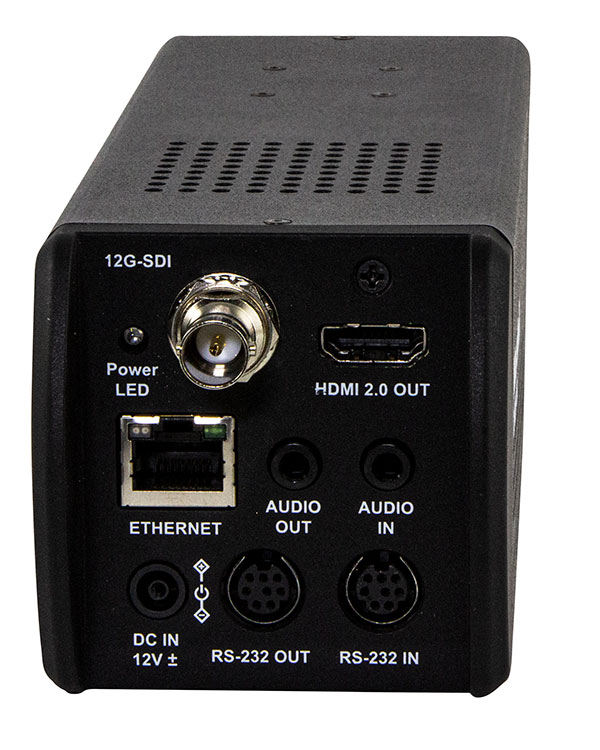

One cable to camera provides up to UHD video, audio, control and power (PoE) over one CAT cable with IP (HEVC), 12GSDI, and HDMI simultaneous outputs with stereo audio embedding.

  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor
  • 30X Optical Zoom (4.6~135mm) - 68° AOV
  • 4K (UHD) Resolution: 3840x2160p up to 60fps, 1920x1080p, 1080i & 720p
  • IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
  • 12G-SDI (BNC), HDMI and IP Triple Stream (HEVC/H.265/H.264) with SRT (4K60)
  • Ethernet I/O supports video, audio, control, tally and PoE over one-cable
  • Control Options: VMS, Software GUI, Joysticks (IP or RS232), Plugins, Docks
  • RS232 and 3.5mm audio (stereo) IN/OUT with passthrough
  • Power Draw: 17W (DC) and 19W (PoE)

CV420-30X Applications:

The CV420-30X is suitable for use in networked UHD and HD workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

CV420-30X Specifications
HousingColor Black
Sensor 1/2.5"8MP CMOS
Lens 30xoptical zoom
Angle of view (H) 66~3.3
Minimum working distance 1.5m(Tele/Wide)
Interface
Power 1.Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
2. POE (802.3at)
HD Output HDMI/Ethernet/SDI
Control RS-232/Ethernet
OSD English/Chinese
Ouput resolution 3840x 2160p / 59.94
3840 x 2160p / 50
3840 x 2160p / 29.97
3840 x 2160p / 25
1080p / 59.94
1080p / 50
1080p / 29.97
1080p / 25
720p / 59.94
720p / 50
720p / 29.97
720p / 25
1080i / 59.94
1080i/ 50
Video Compression Format HEVC/H.264
Stream HEVC4K 59.94
H.264 1080p 59.94 *
H.264 640x360 29.97
Audio in x1
Audio Out x1
Audio Compression Format AAC/G.711
Preset groups 256
Function
Electronic shutter 1/1to 1/10,000 s
Flip / Mirror Yes
White balance Auto/ Manual
Gain AGC,Manual gain
AE control Auto/ Manual
Brightness control Yes
Backlight compensation Yes
Flicker cancel Syncwith output mode
Focusing system Auto,One-push AF, Manual
Noise Reduction Yes
Control Protocols VISCA,PELCO D, VISCA Over IP
Ethernet Protocols DHCP,DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP,RTMPS
Storage temperature –20°Cto +60°C (-4°F to 140°F)
Storage Humidity 90%,non-condensing
Operating temperature 0°Cto 40°C (32°F to 104°F)
Operating Humidity 20~80%,non-condensing
Power consumption DC:≦17W ，PoE: ≦19W
Form Factor
Color Black
Dimension(WxHxD) 67.0 x 67.0 x 225.7(mm)
Weight 0.82kg
