Full HD Mega-Pixel Rugged PTZ Camera

VS-WM202-HDSDI icons

Owner's Manual (PDF)
Full HD Mega-Pixel Rugged PTZ Camera


  • 1/2.8" 2M Pixel CMOS image sensor that supports FULL HD (High Definition)
  • Progressive scan and Auto WDR
  • 20x optical zoom and F1.6 aperture (optical zoom + 12x digital zoom = 240x)
  • Great low-light performance using high precision Noise Reduction function
  • Video signals can be output as digital HDSDI and analog CVBS outputs
  • Up to 63 preset positions
  • Variable speed control for all motorized functions
  • 360° unobstructed rotation using the heavy duty long life slip ring
  • All weather, lightweight, high impact aluminum die-cast enclosure (IP66)
  • Built-in wiper system
  • Super IR LED 30pcs. (effective Illumination distance 200m / manual focusing)
  • Smart IR response by Auto Light Control (100 steps)
  • Auto position calibration during power on sequence
  • Auto pan with 16 steps

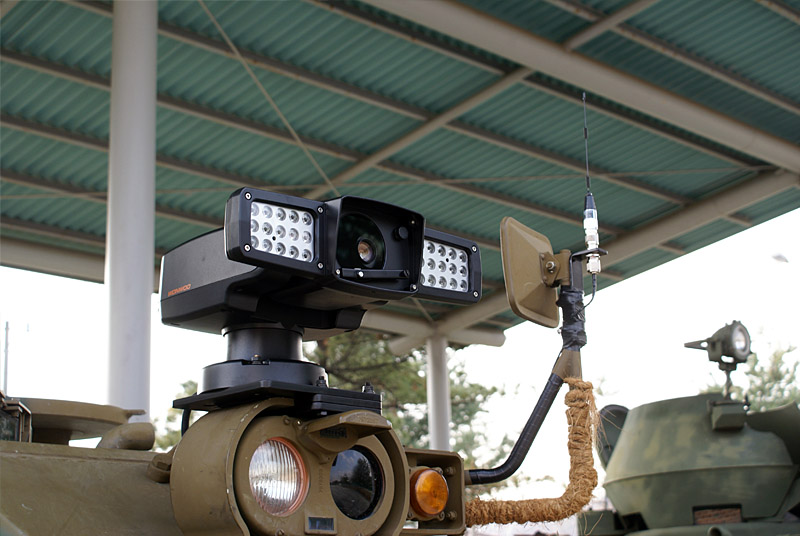

PTZ Camera in use 2PTZ Camera in use 2

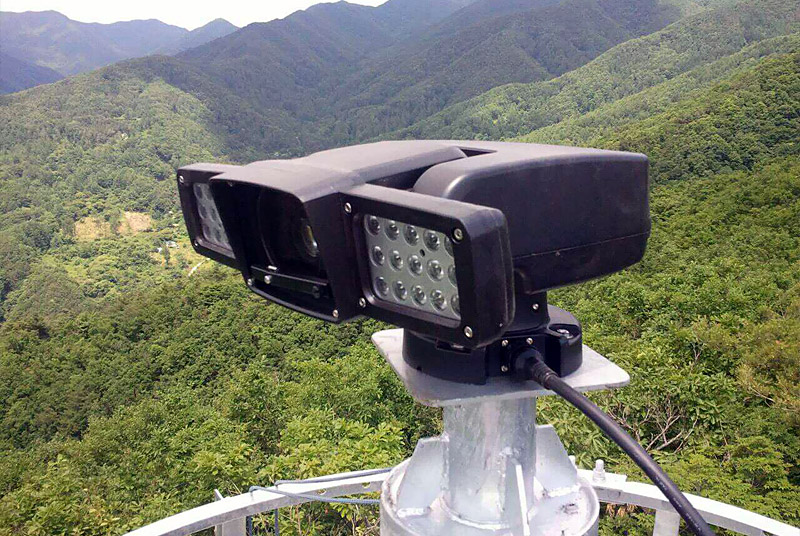

PTZ Camera in use 3PTZ Camera in use 3

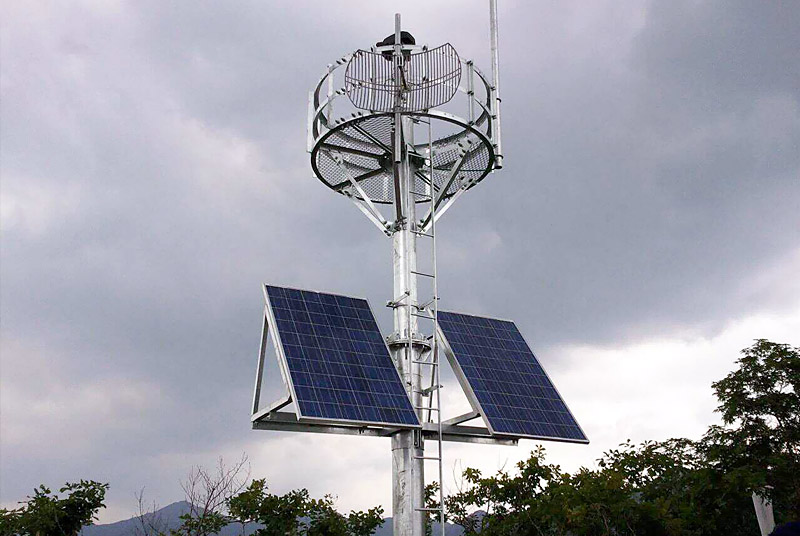

PTZ Camera in use 4PTZ Camera in use 4

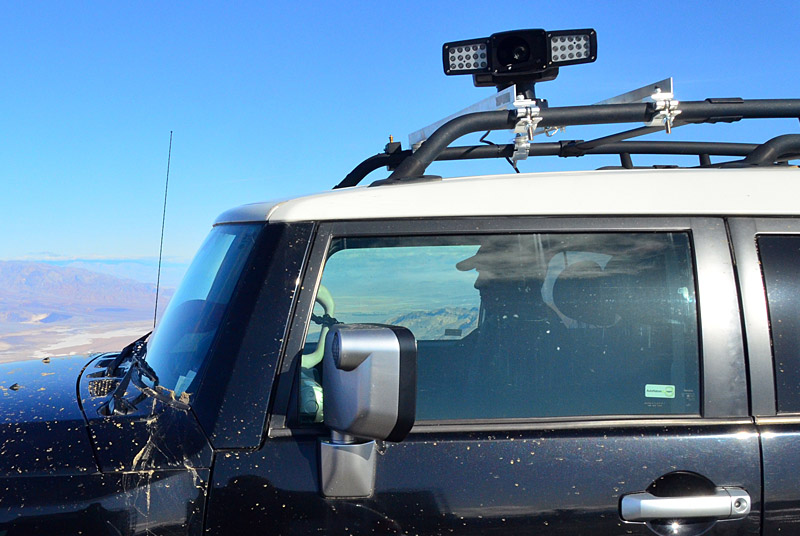

PTZ Camera in use 5PTZ Camera in use 5

From Tank to Tower, Car or OB Van the VS-WM202-HDSDI is ideally suited for Military, Law Enforcement, News Gathering and Surveillance. The VS-WM202-HDSDI is designed to be used in the most demanding environments with extreme reliability. The VS-WM202 uses precise Stepping motor technology in conjunction with heavy duty worm gear drive to provide exceptional pan tilt accuracy and stability. The included IR illuminators allow crisp images from up to 600 feet (200m) with manual focus while the 1/2.8" 2M Pixel sensor produces dazzling broadcast quality 1080i/60 (1080p/30) HDSDI video, the 24-pin heavy duty long life slip-ring allows full 360° panning. Low light is no problem for the VS-WM202 "Tank Cam" as the camera will capture images with as little as 0.5 lux at 1/30 sec.

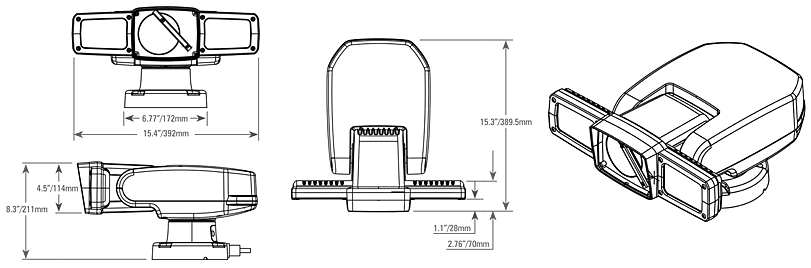

VS-WM202-HDSDI dimentional drawing

VS-WM202-HDSDI camera specifications
Image 1/2.8" 2M Pixel CMOS Sensor
Picture Elements 1920 x 1080 Pixels
Lens 20x zoom F= 4.7 mm (WIDE) to 94.0 mm (TELE), F1.6 to F3.5
Digital Zoom 12x (240x with optical zoom)
Angle of view (H) Approx. 55.4 degrees (WIDE end), approx. 2.9 degrees (TELE end) (1080i mode)
Approx. 37.6 degrees (WIDE end), approx. 2.0 degrees (TELE end) (720p mode)
Min. working distance 10 mm (WIDE end), 800 mm (TELE end)
Sync system Internal
Min. Illumination
(with no IR illumination)
0.5 lux/1/30 sec, 50% (Interlace mode) (High Sensitivity mode ON)
1.7 lux/1/30 sec, 50% (Typical value) 0.26 lux/1/4 sec (NTSC)
1/3 sec (PAL) (Typical value)
ICR-ON Mode 0.0005 lux/1/4 sec (NTSC), 1/3 sec (PAL)
Recommended illumination 100 to 100,000 lux
S/N ratio 50 dB (Weight On)
Back light compensation ON / OFF
Electronic shutter speed 60/30 mode: 1/1 to 1/10000 sec (22 steps)
50/25 mode: 1/1 to 1/10000 sec (22 steps)
White balance AUTO, ATW, Indoor, Outdoor, One Push WB
Manual WB, Outdoor Auto, Sodium Vapor
Gain Auto/Manual (-3 dB to +28 dB, 16 steps)
Wide dynamic range ON / OFF / AUTO
Noise reduction ON/OFF (level 5 to 1 / OFF, 6 steps)
Color Enhancement ON / OFF
Aperture control 16 Steps
Preset 6 positions
IR LED Distance 200m (600ft) with Manual Focusing
Power OSRAM 87On, 1W, 30pcs
Video Out HD-SDI - 1 channel (1080i60,1080p30,720p60,1080i50, 1080p25, 720p50 )
CVBS - 1 channel
Pan Angle 360° Continuous pan
Manual Speed 0.1° to 90°/sec (64 step proportional to zoom)
Preset Speed 150°/sec, ±0.1° Accuracy
Tilt Angle 180°(±90°)
Manual Speed 0.1° to 90°/sec (64 step proportional to zoom)
Preset Speed 150°/sec, ±0.1° Accuracy
Dimensions 392mm(W) x 211mm(H) x 389.5mm(D) (15.4" x 8.3" x 15.3")
Weight less then 12.5Kg (27.6 lbs.)
Motor Holding Torque 13.5Kgf/cm, 1.35N.m
Step Angle 1.8° Deg.
Winding Type Bipolar
Ingress Protection IP66
Temperature Operating Temp -20°C to 50°C (-4°F to 122°F)
Storage Temp -20°C to 60°C (-4°F to 140°F)
Fan -10° to 40°C (14°F to 104°F) 4 Step Control
Heater -10° to 0°C (14°F to 32°F) 4 Step Control
Operating Control Humidity 50% to 90% (4 Step Control)
PTZ Control Method RS-422 (4 wire), RS485 (2 wire)
Power Voltage DC11.5V ~ DC30V, AC15 ~ AC30V (60HZ), Dual Power
Current DC15V,8A / AC24V,5A
Heater / Fan 10W, 3.4W

Included Accessories Optional Accessories
Universal power supply 5 foot weatherized hookup cable Keyboard Controller

Universal power supply

110/240VAC to 24VDC. Part#: VP-UP350S24L

5 foot weatherized hookup cable

VS-TKC-100 / Keyboard Controller

Price: $419.00

* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
