The OR-434 is only 2RU and has 5 user-assignable function keys with a joystick menu system. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain

• Real-Time Waveform Monitor
• Real-Time Color Vectorscope
• Sixteen 64-segment Tri-color Audio Meters
• Tri-Color Tally Indicator
• On-Screen Time Code
• 7 assignable GPI inputs
• Adjustable Color Temperature
• Optional Input Modules
• Auto-Sensing Front Panel Headphone Jack
• Auto-Sensing Rear Unbalanced Stereo Output
• Adjustable Clipping Indicator
• Precision Gamma Settings
• Adjustable Color Temperature
• Variety of Safety Markers
• HD-SDI / SDI Inputs and Outputs
• Automatic Color Calibration with ORCHID Color Probe

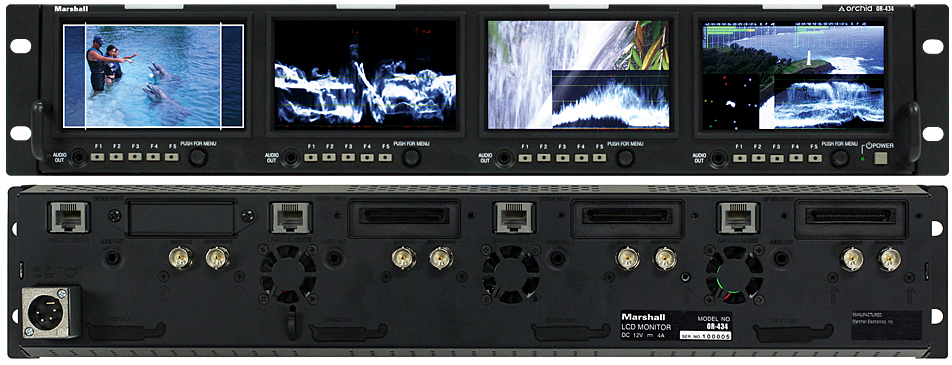

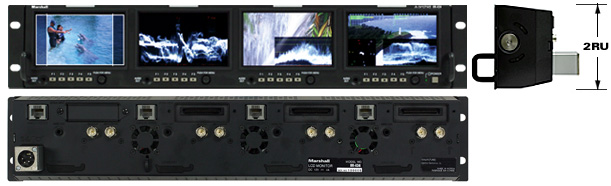

The OR-434 Quad 4.3" ORCHID® rack mount monitor has all the features that customers have asked for and more. The OR-434 is only 2RU and has 5 user-assignable function keys with a joystick menu system.

The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen.

The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.

All screens are color matched at the factory and can be auto-adjusted in the field using an optional color probe system.

The OR-434 will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-434 comes standard with auto-sensing HD-SDI inputs, re-clocked outputs, and an open modular slot for additional inputs in the future.

FEATURE EXPLANATION
		WAVEFORM MONITOR The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The Waveform Monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits.
		REAL-TIME COLOR VECTORSCOPE The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The Vectorscope has adjustable gain from 1x to 5x.
		CLIP GUIDE The Clip Guide function operates with both the Waveform display and Monochrome/Color picture display. Both the upper and lower Clip Guide levels are user-adjustable in order to accurately display over-and-under exposures during different shooting conditions. For example, the upper Clip Guide limit may be set to 85 IRE and the lower limit to 10 IRE. With these settings, any exposures over the set limit of 85 IRE will display red on both the Waveform and picture (if selected). The same will be true for blacks under 10 IRE.
		PRECISION GAMMA It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels.
		AUDIO LEVEL METERS De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels. The Audio Level Meters provide numerical indicators and headroom levels, as well as peak hold function. Audio Channel Loss Warning prevents errors during monitoring.
		FRONT AND REAR PANEL AUDIO OUTPUT Monitor any two channels at once through the front audio output jack or rear line output jack.
		EXTENSIVE MENU SYSTEM 7 user-assignable function keys with Rotomenu system.
		WHITE BALANCE White balance adjustment is essential in order to render colors correctly. To display colors correctly, gray scale should maintain identical color temperature. The white balance for ORCHID monitors defaults to D65 (6500K) so the user does not need to adjust white balance. LCD monitors have color-matching issues because white balance can be affected by a change in luminance level. Our unique color management system solves this problem.
		ONE BUTTON COLOR CALIBRATION The ORCHID operating system includes an Automatic White Balance function that allows a "One Button" calibration procedure when used with a Konica Minolta CA-310 color analyzer. All ORCHID Series LCD panels are calibrated at the factory to ensure color conformity between screens.

OR-434 specifications

Panel	Number of Panels	4
	Panel Size	4.3” Diagonal
	Resolution	800 x 480
	Aspect Ratio	16:10
	Active Area	93.0 x 55.8 mm
	Type	LCD Panel
	Brightness	200 cd/m²
	Contrast	400:1
	Color Gamut	YUV, RGB
	Viewing Angles (CR>=10)	-65°~+65°
	Backlight type	LED
Features	Video Formats	1080p/1080i/720p/625i/525i
	Loss of Input Curtain	Yes
	Color Temperature	D65,93
	Blue Only	Yes
	Scan Zoom	Yes
	Waveform	Yes
	Vectorscope	Yes
	Self-Sensing	Yes
	Re-clocked/Re-Shaped	Yes
Input Connectors	SD-SDI	Yes
	HD-SDI	Yes
Output Connectors	SD-SDI	Yes
	HD-SDI	Yes
Audio	Audio Meters	Yes
	Headphone Jack	Yes
	Embedded audio from SDI	Yes
	Input Status Display	Yes
Control Inputs	Tally / GPI	Tally
	RS-485/422 w/ Loop Through	No
	Ethernet	No
Extras	Controls on front Panel	Yes
	User-Defined Function Buttons	Yes
	RotoMenu™ Control	Yes
	Pivot Angle	Yes
	Handles/Rack Ears	Yes
Power	Voltage	12VDC
	Consumption	4 Amp (Max) @ 12VDC
	Power Switch	Yes
	Connector	4-Pin XLR Connector
Compliance	Compliance	CE approved
Environmental	Operating Temperature (C°)	32° F to 104° F
	Storage Temperature (C°)	-4° F to104° F
Dimensions	Rack Unit dimensions	18.9” x 3.46” x 3.54
	Weight (Main Body)	5.29 lbs

ORCHID® is a registered trademark of Marshall Electronics, Inc.
