Occupying only 6 SRU and weighing just 12 pounds, the V-R171P-AFHD features our Completely Digital TFT-Megapixel™ system and can display high definition images on the LCD/TFT screen with 2.95 million pixels. Analog signals are digitized using an advanced 10 bit process with over sampling and adaptive 5 line comb filter. Images are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates adaptive pixel interpolation and precision Gamma correction. Additional features include, Pixel-to-Pixel™ native resolution scaling, Color Temperature adjustment, Motion Compensation, setup memory, Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions The V-R171P-AFHD has been designed for field and studio applications with a rugged, all metal enclosure.


17" Rack Mount or Desktop HD Monitor Accepts all Analog or Digital Video formats

Owner's Manual (PDF)

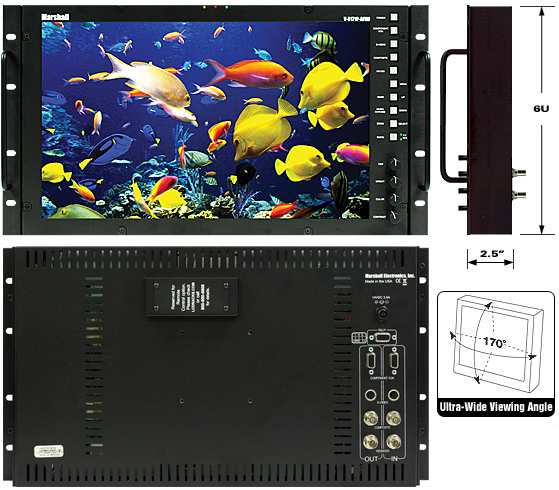

17 inch Rack Mount or Desktop HD Monitor Accepts all Analog or Digital Video formats

  • High Resolution wide screen 1280 x 768 Dots with 2.95 million pixels
  • 16.7 million colors
  • CRT style viewing radius - 170 degrees in any direction provides superior visibility when the viewer is not directly in front of the screen
  • Bright 450 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
  • 500:1 contrast ratio
  • 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
  • Mono display (Black and White)
  • Built-in Color Bars
  • 6 Frame Marker Overlays with Center Mark
  • Easy to see three color tally indicators
  • Adjustment Settings Memory

  • Standard Multiformat inputs:

  • HDSDI (all formats)
  • SDI (ITU-R BT601 format)
  • Component Analog HD/SD
  • Composite Video PAL/NTSC
  • XGA Display Zoom function

Optional desktop stand
Optional Desktop Stand
Occupying only 6 RU and weighing just 12 pounds, the V-R171P-AFHD has a high resolution LCD display with 2.95 million pixels. It includes our Universal Input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop-through on each connection for HD-SDI/SDI, Y/C, and composite video with PAL/NTSC automatic recognition. There is also a multiformat connector for HD or SD analog component signals. For computer graphic applications, this unit also has a scalable XGA input. Additional features include setup memory, Zoom function, 6 Frame Marker Overlays and direct access for adjustment and selection functions. With an optional VESA adapter, this monitor can be wall or ceiling mounted. Instruction manual and universal power supply are included.

Display (Viewing Area) 17" (13.30" × 8.75 ")
Resolution (Pixels) 1280 H × 768 V (2.4 million pixels) (16.7 million colors)
Dot Pitch 0.105mm × 0.161mm
Brightness (in cd/m²) 450
System NTSC/PAL auto recognition
Screen Formats 640 x 480 - 59.94i, 60i, 29.97P,30P, 59.94P 60P
1280 x 720 - 23.97P, 24P, 25P, 29.97P, 30P, 59.94P, 60P
1920 x 1080 - 23.97P, 24P, 25P, 29.94P, 30P, 50i, 59.94i, 60i
Inputs HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, YPbPr) 75Ω
BNC for Composite Video (PAL/NTSC) 75Ω with AGC
4 Pin Mini Din for S-Video (Y/C)
Dimensions 19.12"W x 10.50"H x 2.5"D
Approx. Weight 12 lbs
Power Consumption 12 VDC, 3.0Amps max - UL Class 2
