One-Touch BNC Connector / BNCS Series

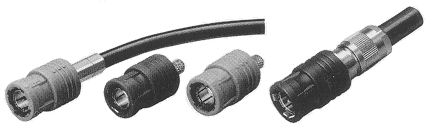

Quick and reliable ONE TOUCH LOCK "PUSH-PULL" connection suitable for dense panel, fast installation and freguent connection and removal. Equivalent connection strength to conventional BNC, realized by innovative rotary mechanism.

BNCS701-P8 BNCSS707-P0

Soldering Plugs

Part No.	Cable	Length	Remark
BNCS707-P( )	3C-2V, 5C-2V	43mm	75W Type

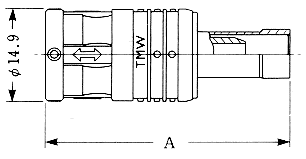

Crimping Plugs

Part No.	A mm	Cables	Crimp Tool	Remark
BNCS502-P( )	37.5	RG-58/U	DCC-T0097/T0098	50W Type
BNCS701-P( )	37.5	3C-2V	CWB-T0105/T0106	75W Type
BNCS702-P( )	39.5	5C-2V	CWB-T0105/T0106
BNCS705-P( )	37.5	RG-58/U	CWB-T0095/T0096

Color	BLACK	BROWN	RED	YELLOW	GREEN	BLUE	GRAY	WHITE
Code No.	0	1	2	4	5	6	8	9

Available in colors. Add register color code in ( )

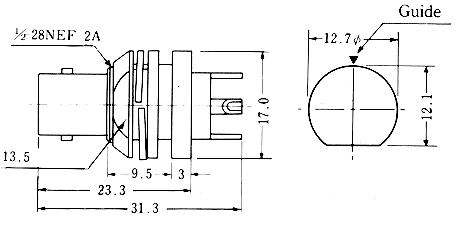

Isolated Receptacles

The BNC isolated panel mounting receptacles & adapters are designed to be isolated totally from chasis or panel. The metal mounting nut and threaded shell insure a tight secure fit.

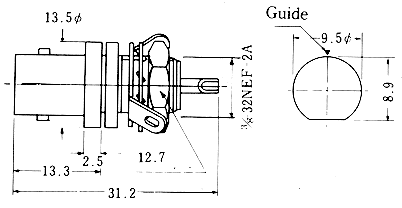

Front Mount Receptacle
BNC284-BR
