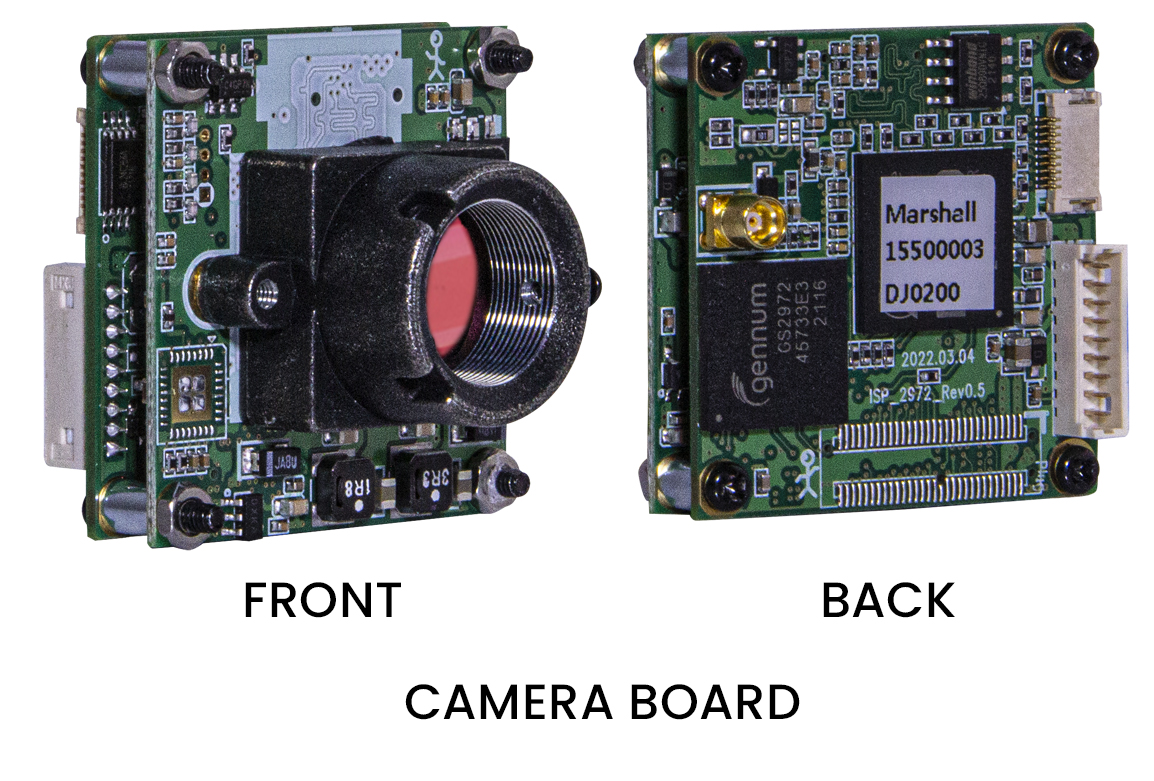

V-1294-2MP Full HD Color Board Camera
2 Megapixel 1/2.8 inch CMOS Sensor , M12 Lens Mount with IR Cut Filter
|
Captures sharp vivid color images. 0.02 lux (low light sensitive). New WDR function supports high speed high sensitivity for all visible light sources.
OSD Menu Joystick on Breakout Cable (included). Stepped (Red / Blue) Gain Control, Gamma, Brightness, Shutter Adjust, Etc.
|
 |
 |
Image Sensor |
1/2.8” Progressive CMOS |
Sensor Size |
12mm x 9.3mm |
Effective Pixel |
Horizontal 1920, Vertical 1080 |
Pixel Size |
2.9um(H) x 2.9um(V) |
Resolution / frame Rate |
1080i at 50, 59.94, 60s |
720p and 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
Output |
3G/HDSDI |
Color Space |
4:2:2 (YCbCr) 10bit |
Min. Illumination |
0.02Lux (Day) / 0.002(Night) |
Camera Control |
RS-485, Adjustment Key OSD Menu Joystick on Breakout Cable |
Rated voltage |
DC 12V |
Current consumption |
200mA (2.4W) |
|
| |

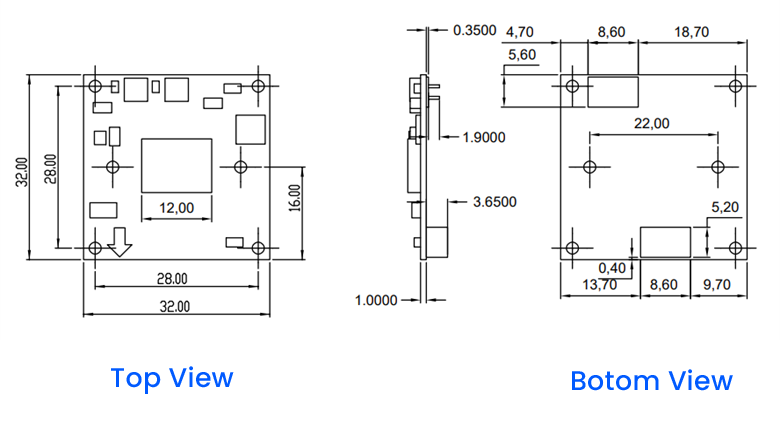

| V-1294 Sensor Board |
 |
| |

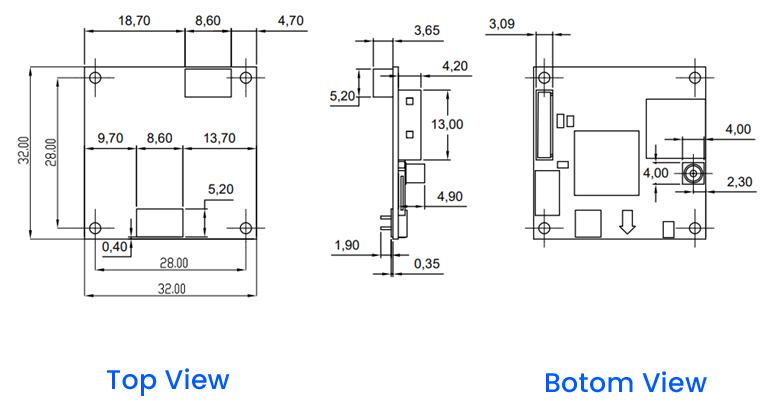

| V-1294 DSP Board |
 |
| |
| OPTIONAL MARSHALL M12 LENSES |
