The Marshall CV355-27X-ND3 FHD60 25x with NDI® (NDI HX2, NDI HX3) & 3GSDI captures crisp HD video up to 3840x2160 resolution through a 27x optical zoom block for enhanced versatility and performance. The CV355-27X-ND3 can be remotely controlled via RS-232 and IP networked control interface offering the convenience of one Ethernet cable to camera for video, control, and power (PoE).


Home | Pro HD/4K Cameras | CV355-27X-ND3 HD60 27x with NDI® (NDI HX2, NDI HX3) & 3GSDI

CV355-27X-ND3

FHD60 27x with NDI®
(NDI HX2, NDI HX3) & 3GSDI

Specsheet Download Multiple Control Setup Illustration Quick IP Camera Setup Facebook Live Setup RS232 to CAT Cable Connectors RS232 Command List Crestron IP Control Modules Marshall Q-SYS Packaged Installation Marshall OBS Plugin and Dockable Controller Ver.2.0.12 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.12 Mac Mac iOS Camera Control Software for USB & IP Download Images

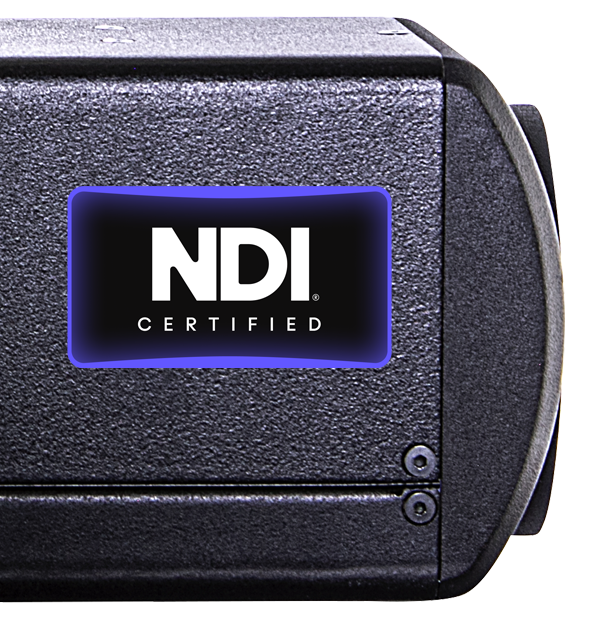

NDI Certified
The CV355-27X-ND3 27X optical zoom NDI® (NDI HX2, NDI HX3) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp FHD video up to 1920x1080 at 60fps with support for all FHD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.


CV355-27X-ND3 has an optical zoom of 27X for maintaining image crispness from ultra-wide to long telephoto shots

27X Optical Zoom

The 27X optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.

CV355-27X-ND3 ready for NDI HX2, NDI HX3 Workflows

NDI® (NDI HX2, NDI HX3) Workflow

keep your productions looking great NDI® preserves visual quality, frame accuracy, and source synchronization. NDI® also opens up a wide range of NDI® Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI® workflows.

CV355-27X-ND3 has Low-light Sensitivity

Low-light Sensitivity

The CV355-27X-ND3 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

NDI Network with 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding

NDI® Network

Ideal for use in NDI® networked and A/V installations, the CV355-27X-NDI offers the convenience of NDI® HX2|HX3, 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding.

  • 8.5 Megapixel (1/2.5") FHD sensor
  • 27x Optical Zoom (5.56~150.29mm) & 12X digital zoom
  • HOV Wide/Tele: 68° / 3.2°
  • Resolutions and frame rates:
    1080p 60/59.94/50/30/29.97/25 fps
    1080i 60/59.94/50 fps
    720p 60/59.94/50/30/29.97/25 fps
  • Supports NDI HX2 and HX3
  • NDI/IP, 3G/HD-SDI, and HDMI simultaneous outputs
    Switchable NDI and IP output
  • Ethernet I/O supports video, control, and PoE over a single cable
  • RS232 and 3.5mm audio input with passthrough

CV355-27X-ND3 Applications:

The CV355-27X-ND3 is suitable for use in networked FHD and workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

CV355-27X-ND3 Specifications
Sensor IMX317
Optical Zoom 27x
Digital Zoom 12x
Angle of view (H) 60°
Vertical Viewing Angle 35°
Diagonal Viewing Angle 68°
Aperture F1.66~F4.98
Focal Length f=5.56mm~150.29mm
Focus Distance Wide：1m ~ ∞ / Tele：1.5m ~ ∞
MTF Wide: center 1100/corner 900
Tele: center 1100/corner 800
Field of View Wide Horizontal viewing angle=60° (+/-5%)
Tele Horizontal viewing angle=3.2°  (+/-5%)
Minimum Environmental illumination 10 lux
Camera
Stream Dual Stream (Main/Sub) / Webpage
Streaming Protocol RTSP / RTMP / RTMPS / SRT / NDI(HX2/HX3)
Video Compression HEVC (H.265) / AVC (H.264) / MJPEG
Audio Compression G.711 / AAC
Preset 256
Preset Speed NA
Focus System Auto/ One-Push AF / Manual
Electronic shutter 1/1 to 1/10000 sec
Exposure Control Auto / Shutter Pri / Iris Pri / Manual
Gain Control Auto, Manual
Brightness control Yes
3D NR Yes
WDR Yes
Backlight Compensation Yes
White Balance Auto, Manual R/B Gain
Flip / Mirror Yes
Firmware Update Operation on Webpage
Output Resolution
HDMI 1080p : 60 / 59.94 / 50 / 30  / 29.97 / 25 fps
1080i : 60 / 59.94 / 50 fps
720p : 60 / 59.94 / 50 / 30  / 29.97 / 25 fps
3G-SDI 1080p : 60 / 59.94 / 50 / 30  / 29.97 / 25 fps
1080i : 60 / 59.94 / 50 fps
720p : 60 / 59.94 / 50 / 30  / 29.97 / 25 fps
Stream PTZ view
1080p : 60 / 59.94 / 50 / 30  / 29.97 / 25 fps
1080i : 60 / 59.94 / 50 fps
720p : 60 / 59.94 / 50 / 30  / 29.97 / 25 fps
360p :  30 / 29.97 / 25 fps

Webpage :
PTZ: MJPEG 360p
Interface
Line In x1 ; 3.5mm phone jack
Line Out x1 ; 3.5mm phone jack
Audio Output HDMI / 3G-SDI / RTSP / RTMP / SRT
Audio Type Stereo, Unbalanced
Audio Compression Format AAC
HDMI x1
Audio Output Yes
HDMI Color Format RGB / YUV422
3G-SDI x1
Audio Output Yes
Serial RS232
RS232 In RS232 In ; Mini-Din x1
RS232 Out RS232 Out ; Mini-Din x1
Network
Ethernet RJ45 Port x1 ; 1Gbps
Number of clients (connection) RTSP 1080P60 *5
Network Protocol DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
Network Security No Critical issues
Camera control
Serial Control RS-232 In x1 ; RS-232 Out x1
Protocol VISCA
Baud Rate 9600 / 38400
Network Webpage
HTTP CGI
HTTP API
Onvif Profile S
VISCA over IP
General
Tally Light Yes ; Red
Service Button NA
Power Supply POE ; IEEE 802.3af
DC 12V/3A ; EIAJ Type 4
Power consumption PoE : ≦ 10.5W ; DC : ≦9W
Operating Temperature 0 °C to 40 °C
Storage Temperature -20 to 60 °C
