High Performance Video Output

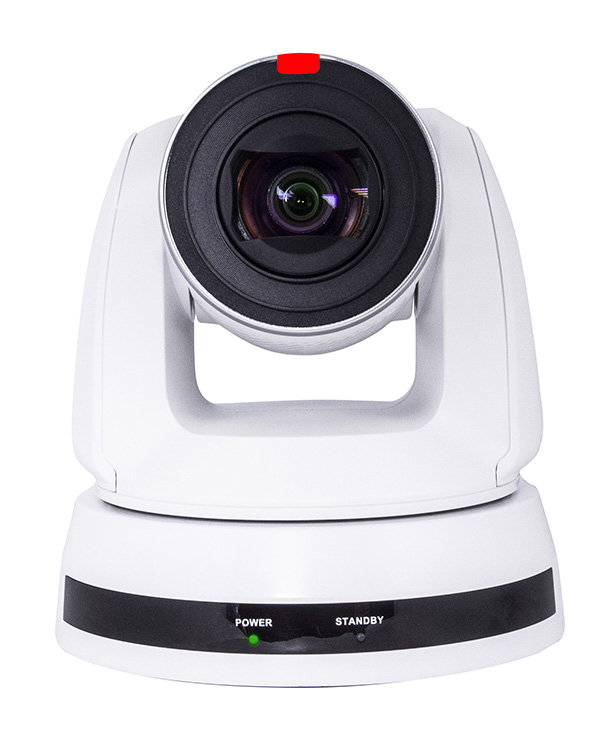

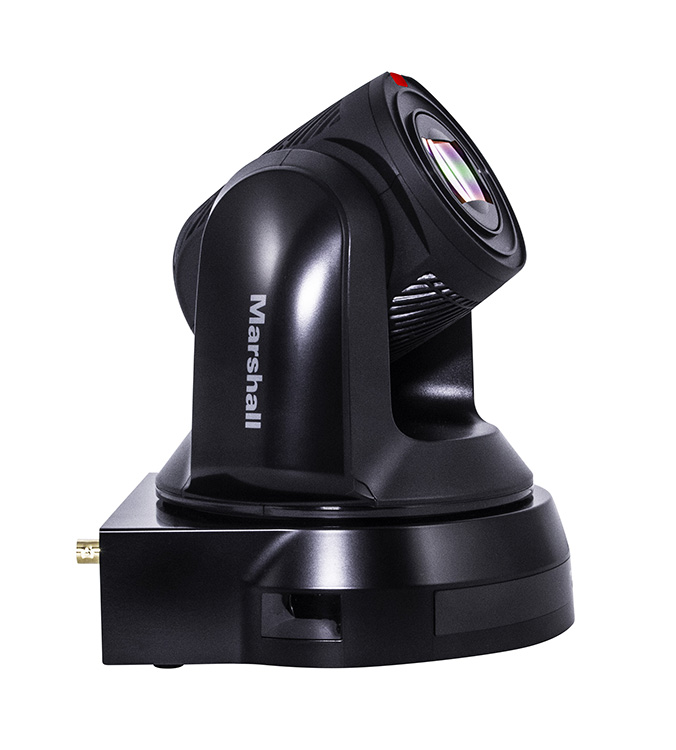

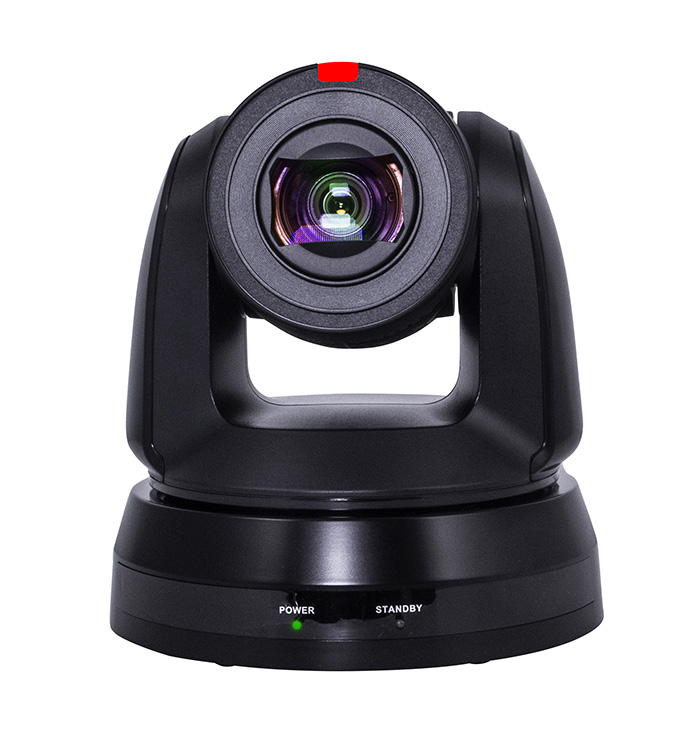

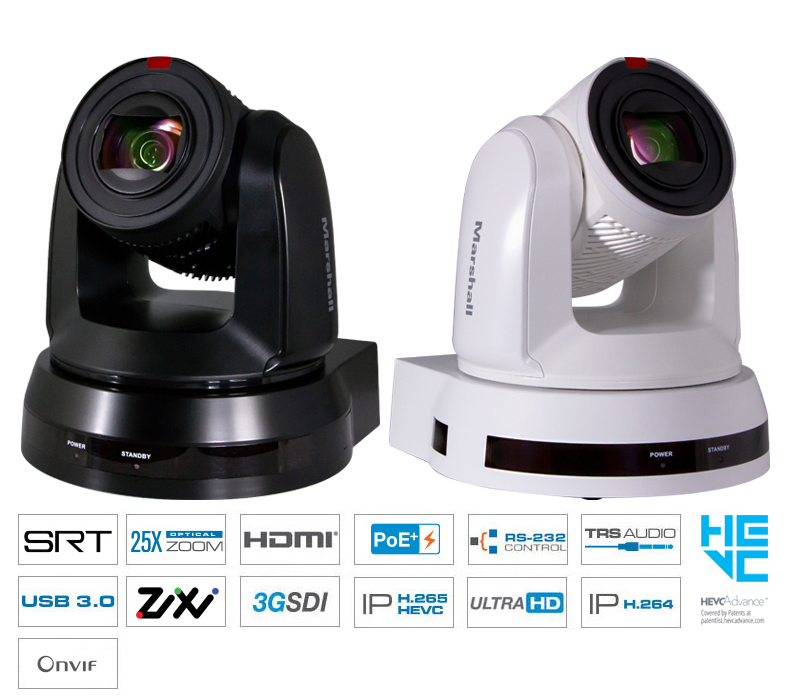

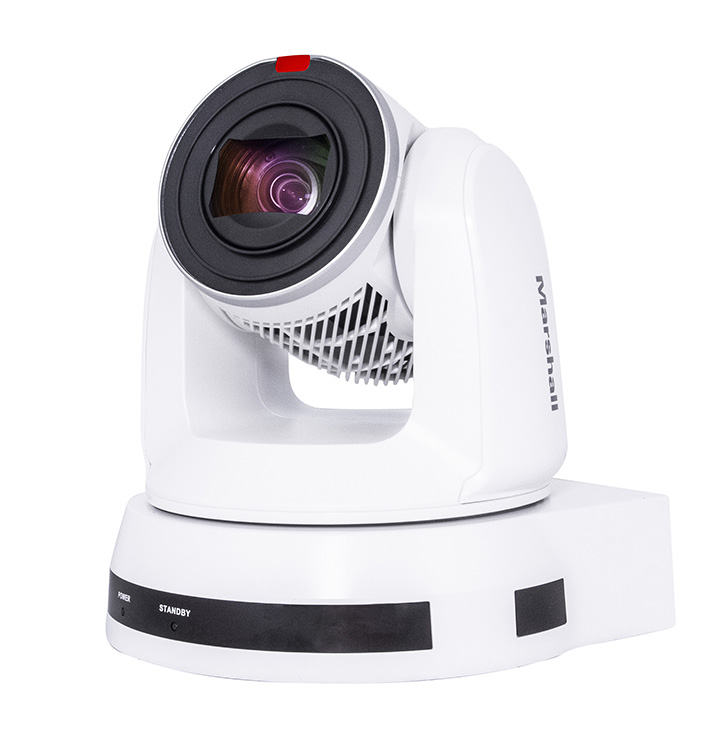

At its core, the CV630-BI and CV630-WI both pack a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, 1280x720p, 1920x1080i.

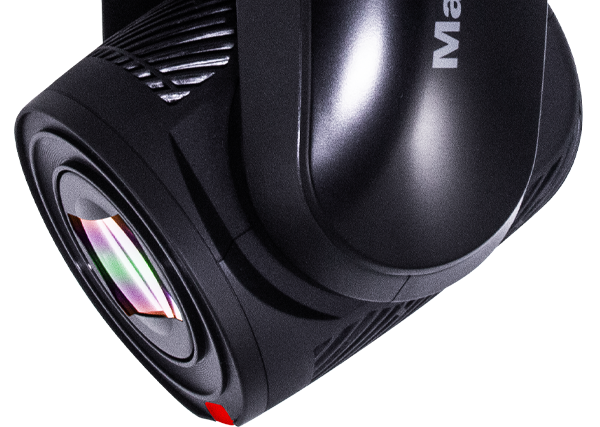

Versatile Camera Positioning

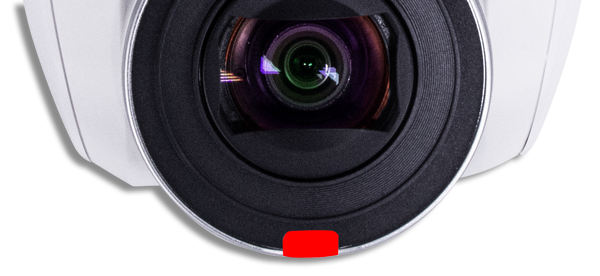

The CV630-BI and CV630-WI are equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 120.5mm, with a nearly 68-degree angle-of-view at its widest.
Simultaneous Networked and Streaming Outputs

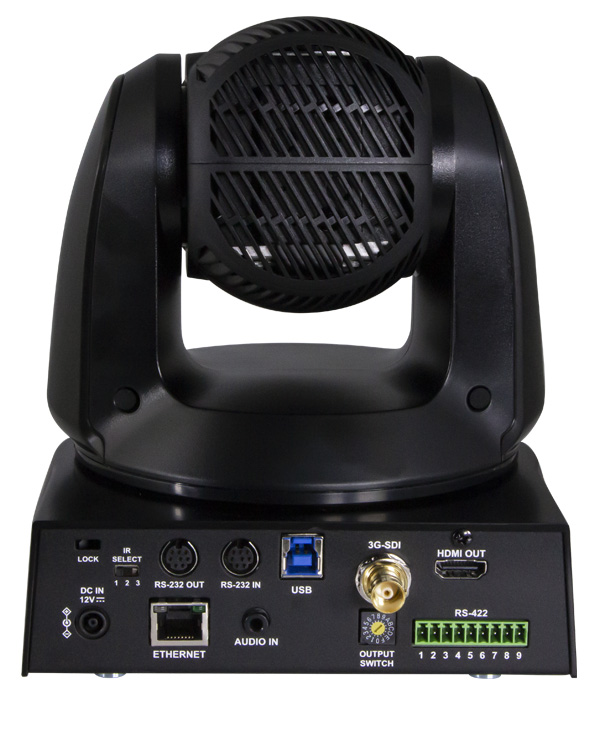

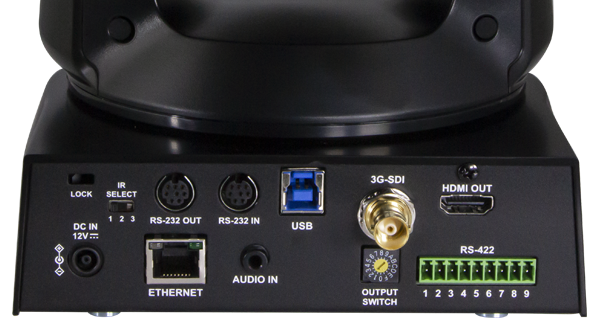

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
Flexible Control Options
The CV630-BI and CV630-WI offer easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

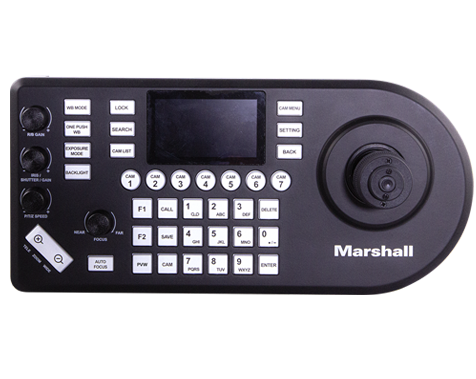

Additionally, the CV630-BI and CV630-WI are compatible with Marshall's
VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.
- 8MP 1/2.5" sensor
- 25X Optical Zoom (4.6~120.5mm) near 68-degrees AOV at widest
- 3GSDI, HDMI, and IP simultaneous outputs
- Simultaneous pan, tilt, and zoom
- H.265 (HEVC) and H.264 (triple-stream) networked outputs
- IP formats: RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
- 3840x2160p, 1920x1080p, 1280x720p, and 1920x1080i
- Stereo audio input (mic or line level) embedding
- PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
- 340° pan, 120° tilt, and 25X zoom range
- Front tally light
- Free-D protocol support and CGI protocol commands
Applications:
The CV630 cameras are suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
