Marshall CV730-BHN is a full PTZ camera with 30x optical zoom and an 9.2 MP UHD Sony sensor which makes it a high performance camera for Broadcast and production applications of all types. Broadcast, ProAV, AV, AV over IP, network, internet and intranet.


Home | Pro HD/4K Cameras | CV730-BHN / CV730-WHN 30x UHD60 NDI® PTZ Camera

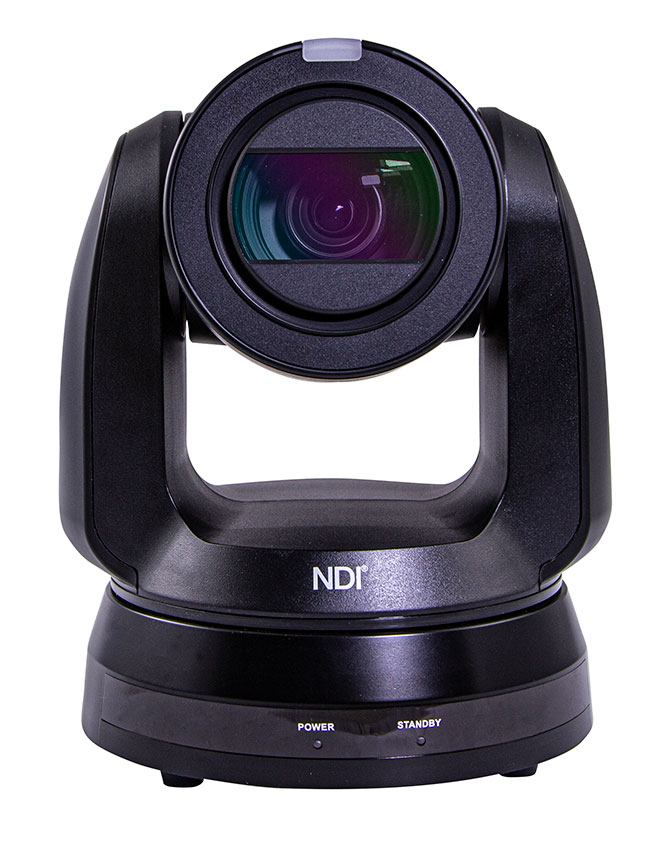

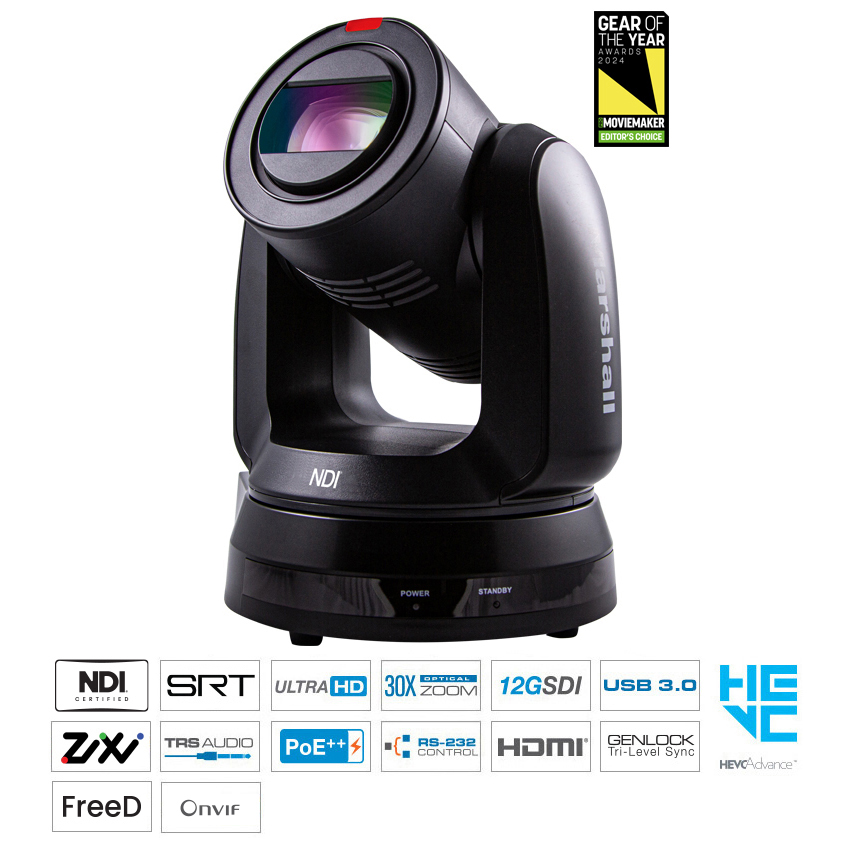

CV730-BHN/CV730-WHN

30X UHD60 NDI PTZ Camera

Download Manual Spec Cut Sheet Multiple Control Setup Illustration Facebook Live Setup Quick Setup of VS-PTC-200 controller with CV630-IP PTZ camera RS232 to CAT Cable Connectors RS-232/422 Wire Diagrams Crestron IP Control Modules Download Latest Firmware Video Management Software Download ZIXI Firmware (only upload to camera if using Zixi codec platform) Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP Download Images
NDI NDI HX NDI HX
Marshall CV730-BHN PTZ cameras feature 9.2 million-pixel Sony sensors with a long 30x optical zoom range and flexible simultaneous 12GSDI & HDMI outputs along with networkable full-NDI®, NDI|HX3, NDI|HX2, IP (HEVC), SRT and other common IP codecs. The crystal-clear UHD (4K) images up to 3840x2160p at 60fps offers a flexible professional camera source to any production. Full NDI® delivers the lowest latency, highest quality, frame-accurate video, and audio in real time to IP workflows. NDI®5.5 and other NDI|Tools opens the ability to integrate more video devices and applications into your production workflow. Also, ability to Genlock the SDI signals via Black Burst or Tri-Level Sync and optional USB3.0 workflow.

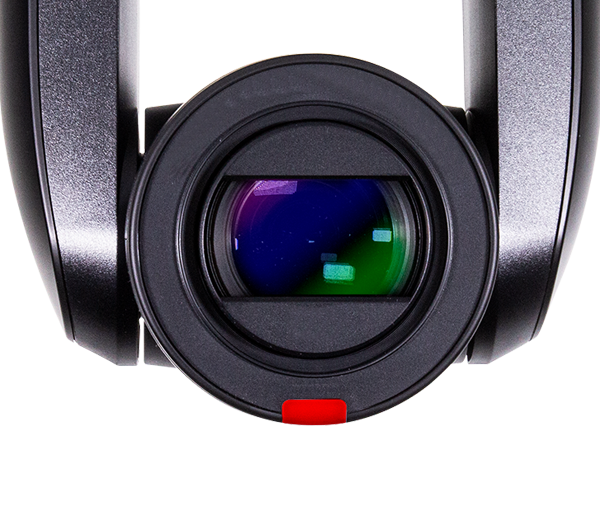

CV730-BHN is a professional broadcast camera with cutting edge production capabilities

Best of Class

Featuring output options of 12GSDI, HDMI, USB and IP simultaneous outputs from a professional grade 9.2 million pixel 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through NDI, IP, RS232/RS422 using universal open source protocols.

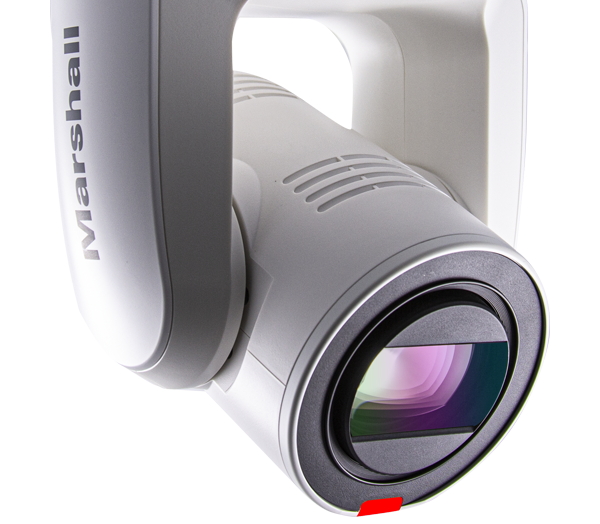

CV730-BHN - Flexible Zome Range with precision of 30X optical zoom

Flexible Zoom Range

Designed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures crystal clear head & shoulder shots at very long distances.

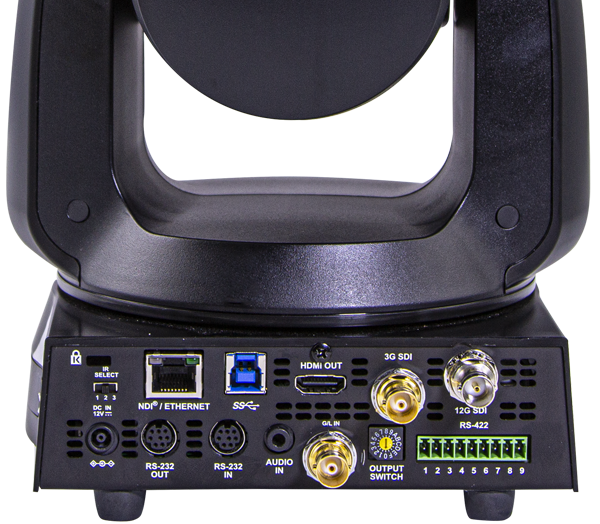

CV730-BHN - Easy one-cable to camera setup

Ease of Use

Install one-cable from IP switch with PoE++ to ethernet port on rear panel of camera – THAT’S IT – or use Ethernet for PoE/Control/Preview and send traditional outputs (12/6/3G-SDI or HDMI) to production, switching or archiving.

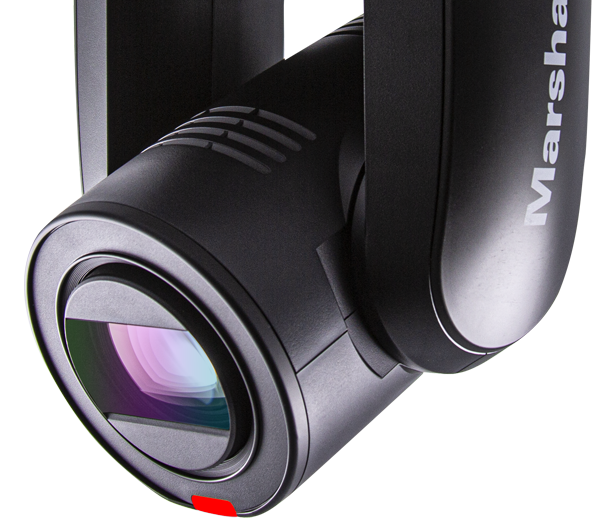

CV730-BHN is a professional broadcast camera with cutting edge production capabilities

Professional Broadcast Performance

Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. Full NDI, NDI|HX3, SRT, IP, Dante AV-H and more to come.

  • 9.2 million pixel UHD Sensor (1/1.8") with Sony square pixel array
  • 30x Optical zoom (6.5mm~202mm) starting at 65° H.AOV
  • Smart Auto-Focus AI System ensures faces and eyes stay in focus at all times
  • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
  • 12GSDI, 3GSDI, HDMI2.0, NDI|HB, NDI|HX3 or IP (SRT/HEVC)
  • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i and 1280x720p
  • All framerates have access to 59.94, 50, 29.97, 25fps framerates
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power Supply included (30W max) and PoE++
  • Low-light performance – 0.05 lux (F1.6, 50IRE)


Applications:

Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation

NDI® and NDI®|HX2. are registered trademarks of NewTek, Inc.
CV730-BHN Specifications
Sensor Sony IMX334 1/1.8 inch
Video Format Resultion : 4K/1080p/720p
Frame Rate : 59.94/50/29.97/25
Video Output (HD) Interface HDMI,Ethernet,12G-SDI,3G-SDI, USB 3.0
Optical Zoom 30x lens
Horizontal Viewing Angle 63° (Wide) to3° (Tele)
Panning Angle  +/-170°
Panning Speed 160 °/sec
Tilting Angle  -30 °～+90°
Tilting Speed 160 °/sec
Aperture F1.6~F18
Focal Length (lens spec) 6.5mm~202mm
Shutter Speed 1/1 to 1/10,000 s
Minimum Object Distance 1.5M
Focus System Auto/Manual
Gain Control  0~45db
White Balance  Auto/Manual
Exposure Control Auto/Shutter priority/Iris priority/Manual
WDR Yes
3D NR Yes
Image Flip Off/Mirror/Flip/Mirror+Flip
Preset Positions 256
Control Interface VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote/ USB
Control Protocol ONVIF,VISCA, PELCO D
Tally Light Yes
PoE POE++,IEEE 802.3bt
Video Stream A Group：RTSP / RTMP / RTMPS / SRT /MPEG-TS
B Group：NDI|HX
C Group：High Bandwidth NDI
Ouput mode：A+C or B+C
Video Compression HEVC/ H.264/ MJPEG
Audio Input MIC/ Line In
Audio Output Ethernet / 12G-SDI / HDMI2.0 / USB 3.0
IR Pass-through Yes
IR Receiver Yes
IR Remote Control Yes
Power Consumption DC :  ≦39W ，PoE : ≦40W
Weight 2.9Kg
Dimensions 188mmx189mmx233mm
storage temerature –20°C to +60°C (-4°F to 140°F)
operating temperature 0°C to 40°C (32°F to 104°F)
