Marshall CV730 is a full PTZ camera with 30x optical zoom and an 8.5MP UHD Sony sensor which makes it a high performance camera for Broadcast and production applications of all types.


CV730-NDIW

30x UHD60 NDI® PTZ Camera

Download Manual Spec Sheet Multiple Control Setup Illustration Facebook Live Setup Quick Setup of VS-PTC-200 controller with CV630-IP PTZ camera RS232 to CAT Cable Connectors RS-232/422 Wire Diagrams Crestron IP Control Modules Download Latest Firmware Video Management Software Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP Download Images
NDI NDI HX

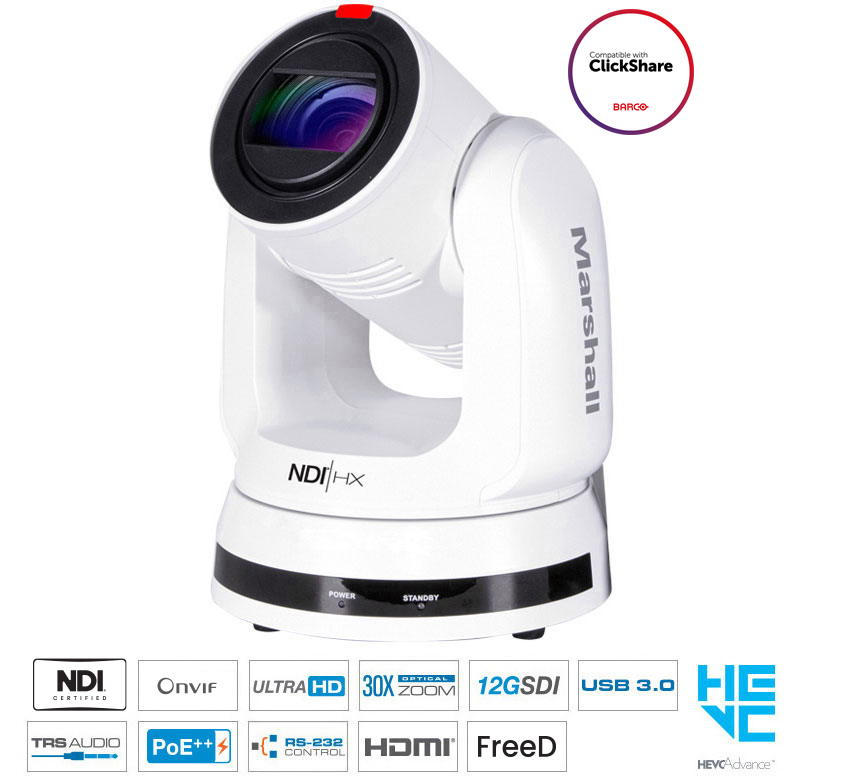

Marshall CV730-NDIW PTZ cameras feature a nine (9) million-pixel sensor with a long 30x optical zoom range and flexible simultaneous 12GSDI and HDMI outputs with NDI®|HX and USB3 capability. The crystal-clear UHD (4K) images up to 3840x2160p at 60fps offers a professional camera source to any production. NDI®|HX delivers low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI®5.5 and NDI|Tools opens the ability to integrate more video devices and applications into your production workflow.

Also Available: CV730-ND3 Black NDI|HX3 Camera


Best of Class

Featuring output selections of 12GSDI, HDMI, IP and USB3.0 from a professional grade 1/1.8" Sony sensor with 9.2 million pixels and smooth synchronous movements. CV730-NDIW is the first to deliver UHD60 performance with NDI®|HX2. ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI®|HX2. provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.

CV730 - Flexible Zome Range with precision of 30X optical zoom

Flexible Zoom Range

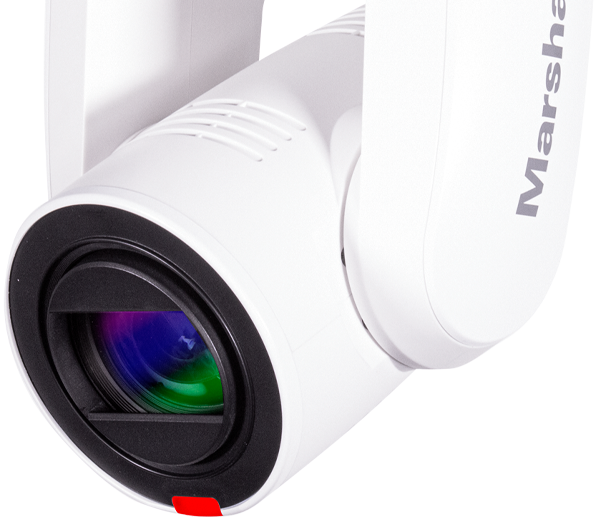

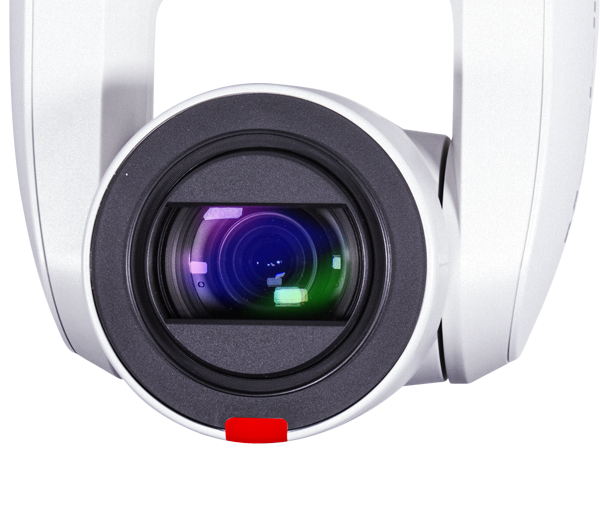

Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.

CV730 - Easy one-cable to camera setup

Ease of Use

Install one-cable to camera with NDI®|HX2. for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.

CV730 is a professional broadcast camera with cutting edge production capabilities

Professional Broadcast Performance

Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. CV730-NDIW constitutes the World's first NDI®|HX2. PTZ camera with Ultra-HD video quality at 60fps.

  • 9.2 Megapixel Sony UHD sensor (1/1.8")
  • 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
  • Smart Auto-Focus System; AI-enabled focus ensures faces stay in focus
  • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
  • 12G/6G/3G-SDI, HDMI2.0, USB3.0 and NDI®|HX2. simultaneous outputs
  • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
  • 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power Supply included and PoE++ (IEEE802.3bt)
  • Min. Illumination - 0.05 lux (F1.6, 50IRE, 30fps)


Applications:

The CV730-NDIW is suitable for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation.

NDI® and NDI®|HX2. are registered trademarks of NewTek, Inc.
CV730-NDIW Specifications
Sensor 1/1.8" 8MP CMOS
Lens 30x optical zoom
Angle of view (H) 63~3.3°
Minimum working distance 1.5m (Tele/Wide)
Motor
Pan  +/-170° (Max speed: 100°/sec.)
Tilt   -30 °~+90° (Max speed: 100°/sec.)
Minimum °/step 0.062° ±5%

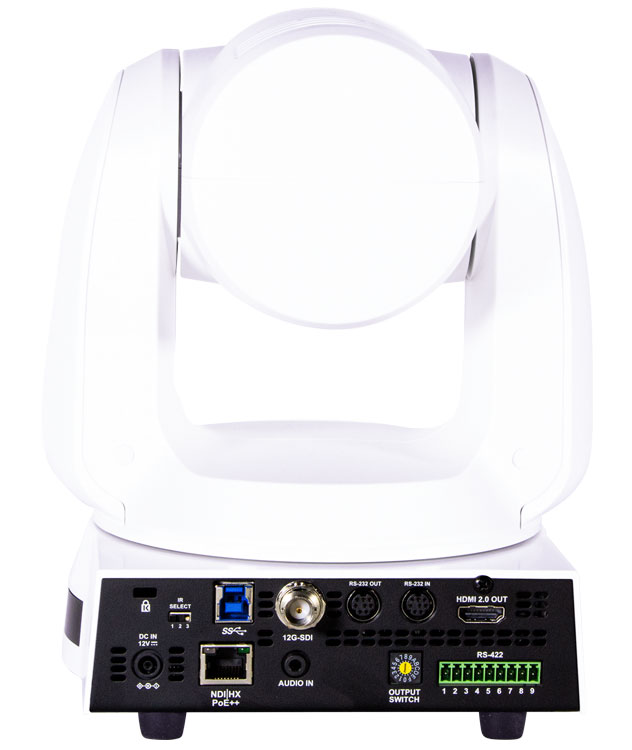

Interface
Power 1. Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
2. POE ++ (802.3bt)
Output HDMI/12G-SDI/Ethernet/USB3.0(Reserved)
Control RS-232/RS-422/Ethernet/USB3.0(Reserved)
OSD English/Chinese
Ouput resolution 2160p59.94
2160p50
2160p29.97
2160p25
1080p59.94
1080p50
1080p29.97
1080p25
1080i/59.94 (SDI & HDMI only)
1080i/50 (SDI & HDMI only)
720p59.94
720p50
Video Compression HEVC/H.264
Multiple Video Stream Two streaming structure
HEVC 4K60fps + H.264 640x360 30fps
Audio in x1
IR Select Switch x1
Output Switch x1
Infrared signal output Yes
Preset groups 256
Function
Electronic shutter 1/1 to 1/10,000 s
Flip / Mirror Yes
White balance Auto / Manual
Gain Auto / Manual
AE control Auto / Manual
Brightness control Yes
Backlight compensation On / Off
Flicker cancel Sync with output mode
Focusing system Auto, One-push AF, Manual
Noise Reduction Yes
Protocols VISCA, PELCO D, VISCAIP
Ethernet Protocols DHCP
DNS
HTTP
HTTPS
IPv4
UDP
NDI
Storage temperature –20°C to +60°C (-4°F to 140°F)
Storage Humidity 90%, non-condensing
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 20~80%, non-condensing
Power consumption <30W
Form Factor
Color Black/White
Dimension(WxHxD) 232 x 188 x 189 mm
Weight 3.0Kg
