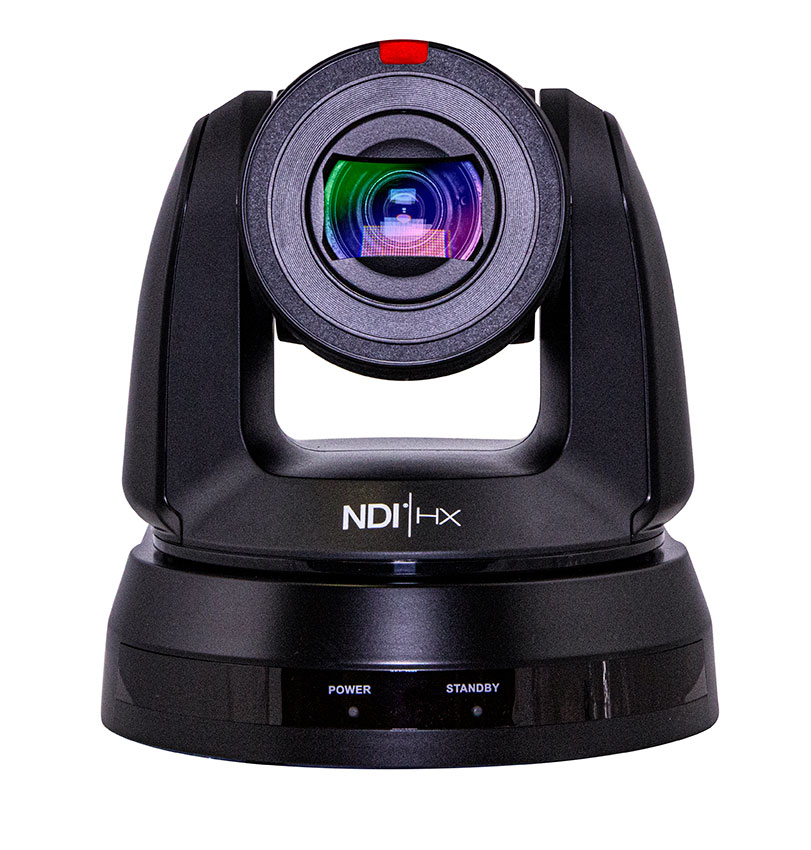

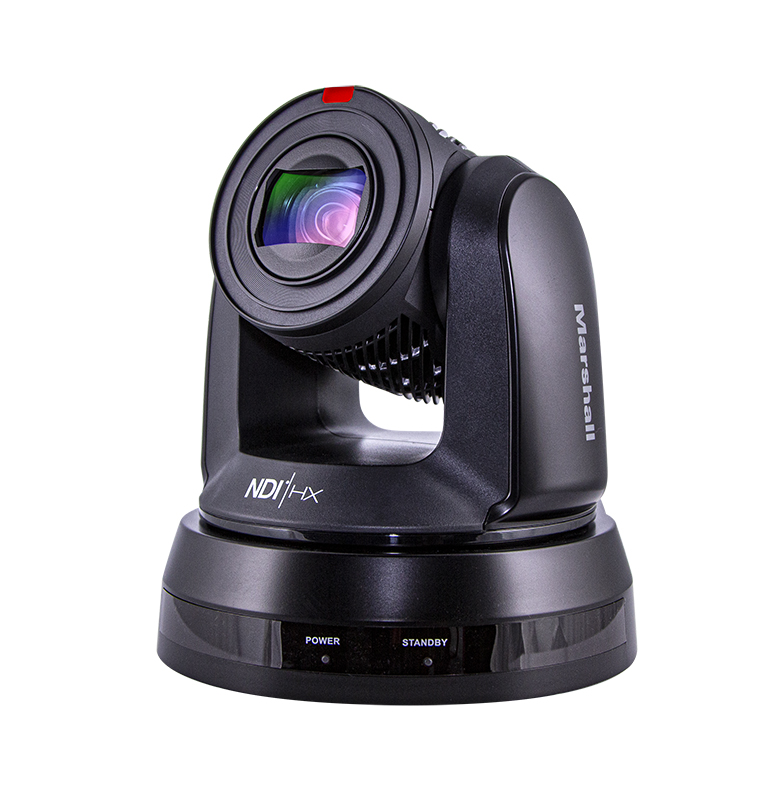

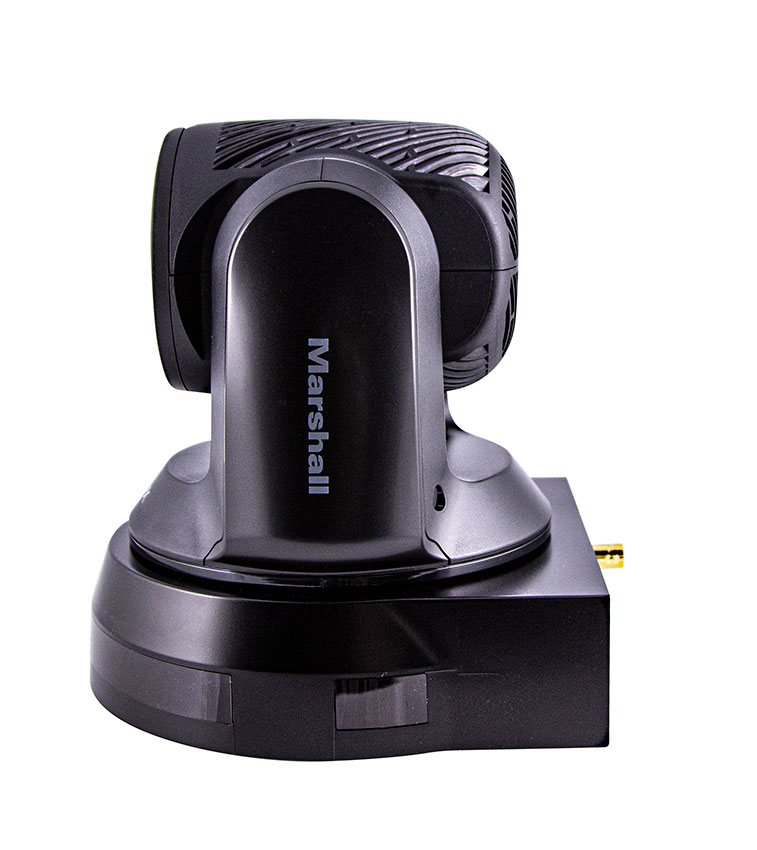

The Marshall CV630-ND3 PTZ Camera is a professional PTZ camera offering broadcast-quality video output over HDMI, 3GSDI, or Ethernet (H.265/H.264 streaming). Robust image settings and PTZ control can be adjusted over networked cable, RS-232, or RS-422 with support for common camera control protocols.


CV630-ND3

25x UHD30 NDI® HX3 PTZ Camera

Download Manual Multiple Control Setup Illustration Facebook Live Setup Quick Setup of VS-PTC-200 controller with CV630-ND3 PTZ camera RS232 to CAT Cable Connectors RS-232/422 Wire Diagrams RS232 Command List Crestron IP Control Modules Download Latest Firmware Extron Control Drivers Video Management Software Marshall Q-SYS Packaged Installation Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP Download Images
NDI Certified
The Marshall CV630-ND3 PTZ camera captures crisp UHD video combined with smooth PTZ camera positioning and 25X optical zoom for a versatile NDI® networked video solution. NDI® HX provides low latency, high quality, frame-accurate video, and audio in real time to NDI® workflows. Use NDIĀ® Tools to easily discover, monitor, adjust and open up remote video sources into your production workflow. * Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

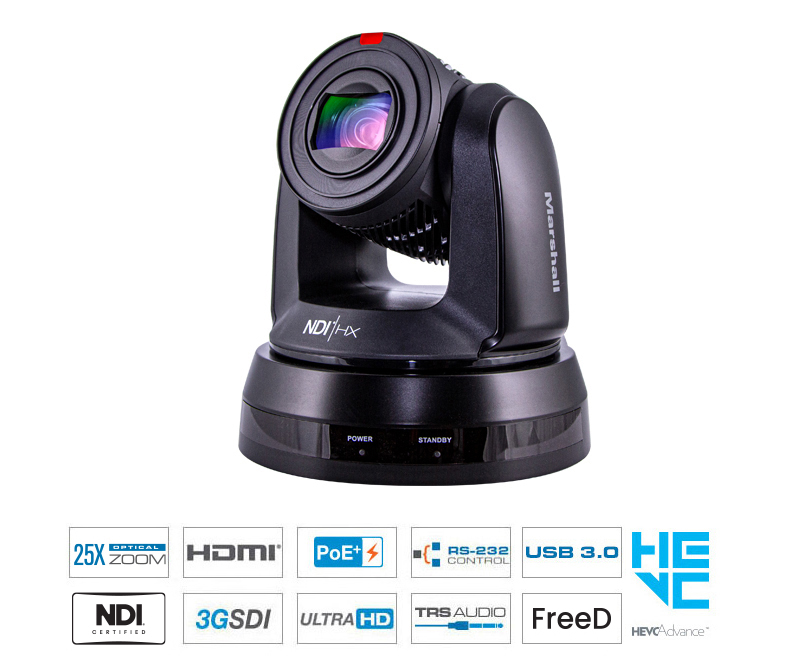

CV630-ND3 is a high performance camera

High Performance Video Output

Featuring NDI® HX3. with simultaneous HDMI and 3GSDI from a professional level 8-megapixel UHD sensor and smooth synchronous movements. At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video at 30fps, with support for HD resolutions.

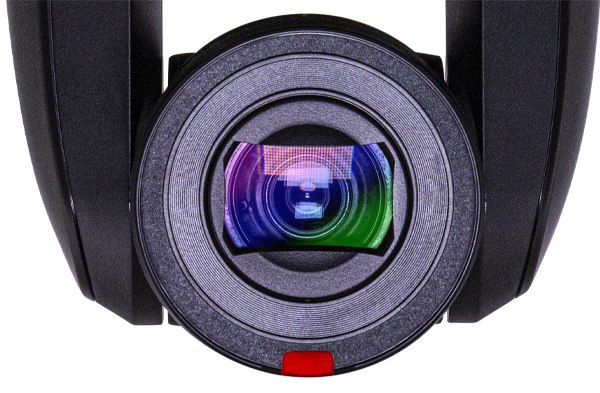

CV630-ND3 is a versatile camera with a 25X optical zoom

Versatile Camera Positioning

The CV630-ND3 is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.8mm to 120.5mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.

CV630-ND3 has several streaming outputs

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, USB 3.0 and NDI® HX3.. Install one-cable to camera with NDI® HX3. for all functions, simple connect to any Ethernet port - THAT'S IT - or use Ethernet for Power/Preview and other outputs (3GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.

VS-PTC-300 is a NDI PTZ camera controller for CV630-ND3 cameras

Flexible Control Options

The CV630-ND3 offers easy control over broadcast settings controllable from NDI® Tools such as NDI Studio Monitor and other NDI® Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-ND3 is compatible with Marshall's VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.

  • 8MP 1/2.5" sensor
  • 25X Optical Zoom (4.8~120.5mm) near 70-degrees AOV at widest
  • Simultaneous 3GSDI and HDMI with NDI® HX3. plug and play
  • Simultaneous pan, tilt, and zoom
  • 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • 340° pan, 120° tilt, and 25X zoom range
  • Simply Connect to any Ethernet Port - THAT'S IT
  • Video, Audio, Control, Tally, and Power (PoE+) over ONE ETHERNET CABLE


Applications:

The CV630-ND3 is suitable for use in live NDI® HX3. broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications

NDI® and NDI® HX3. are registered trademarks of NewTek, Inc.
CV630-ND3 / CV630-ND3 Specifications
Model Name CV630-ND3
Color Black
Sensor 8MP CMOS (IMX317)
Video Format 2160p : 59.94 / 50 / 29.97 / 25
1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50 / 29.97 / 25
1080i : 59.94 / 50
Video Output (HD) Interface 3G-SDI / HDMI / Ethernet / USB3.0
Optical Zoom 25x
Horizontal Viewing Angle 68
Aperture F1.5~F3.4
Focal Length 4.8~120.5(mm)
Shutter Speed 1/1 ~ 1/10,000 sec
Minimum Object Distance 1.5m
Focus System Auto, Manual, Smart AF
Gain Control Auto, manual
White Balance Auto, manual
Exposure Control Auto, manual
WDR Yes
3D NR Yes
Image Flip Yes
Preset Positions 256
Control Interface RS-232 / RS-422 / Ethernet / USB 3.0
Control Protocol VISCA  / VISCA IP / PELCO D / ONVIF / UVC/CGI
Tally Light Yes
IP Protocol NDI|HX3 / NDI|HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
IP Streaming Output HX3: 1080P , OK
HX2: 1080P/4K , OK
RTSP :
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
PoE PoE+ (IEEE802.3at)
Video Compression H.265/H.264
Audio Input Line In/MIC In , Phone Jack 3.5mm x1
Audio Output Ethernet / 3G-SDI / HDMI / USB 3.0
IR Receiver Yes
IR Remote Control Yes
Power Consumption PoE : 18W DC In : 16W
Weight 2 kg
Dimensions 174x186x190
Operating Temperature 0 °C to 40 °C
Storage Temperature -20 to 60 °C
