The Marshall CV605 PTZ camera features a 2 Megapixel sensor with 5x Optical and 10x Digital Zoom range starting at a wide AOV just under 85°, capturing clear HD video up to 1920x1080p at 60fps through 3GSDI and IP at an affordable price point. The CV605 camera can be remotely controlled from Marshall's VS-PTC-200 or VS-PTC-IP controllers, or IR remote included. Also, can be controlled through the IP (Ethernet) connection using Video Management Software (VMS) or Software GUI through a web browser. This camera is a perfect HD60 camera tool for high quality video capture, streaming or production on a budget. Easy setup with a one-cable to camera setup option with video, audio, control and power all carried over one ethernet cable.

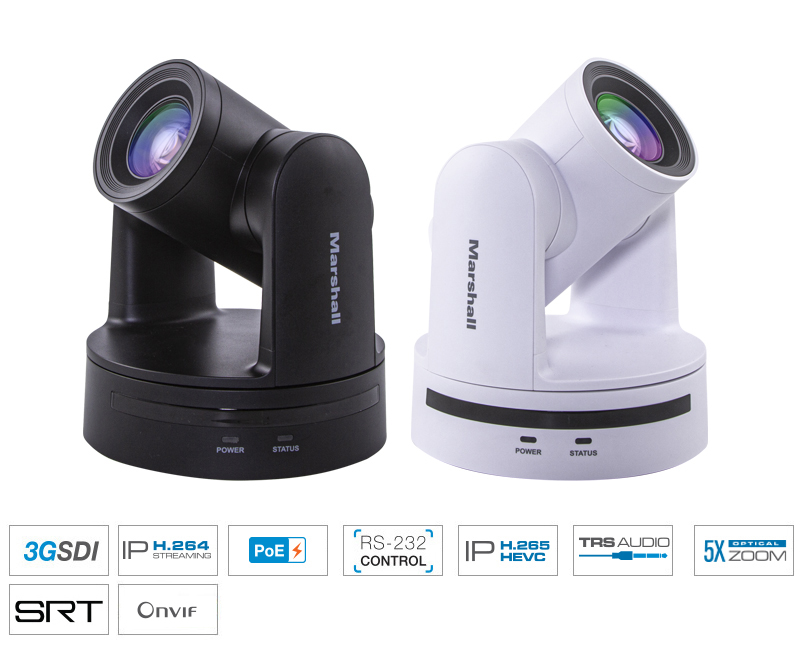

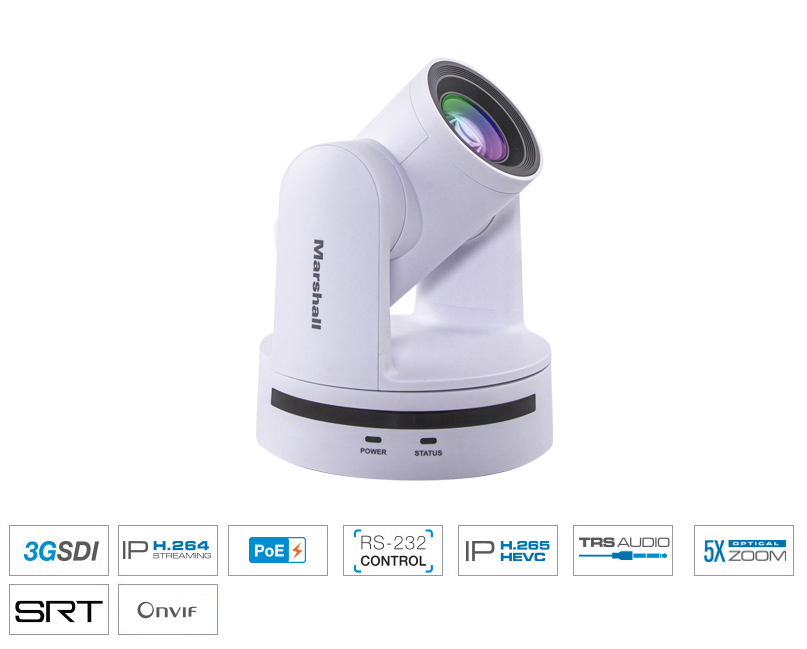

CV605-BK / CV605-WH

5x HD60 IP PTZ Camera

Download Manual Download Images
The CV605 5X optical zoom 3GSDI camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple available outputs include 3GSDI and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional A/V applications. CV605-BK/WH can be setup through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.


CV620 HD Video Quality

Ultra-Wide 85° with 5x Optical Zoom Range

The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.

CV620 Camera Positioning

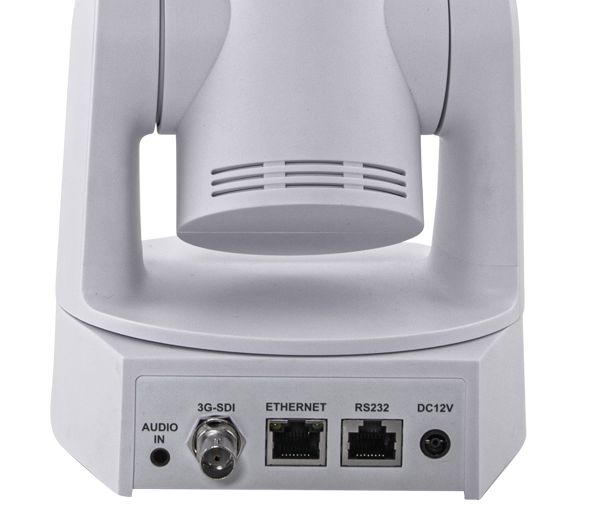

3GSDI + IP (Ethernet) Workflow Flexibility

CV605 offers low latency 3GSDI (BNC) output as well as IP interface with multiple protocol supported. An IP interface provides easy one-cable setup with ethernet (Cat) cable handling video, audio, control and PoE (power).

CV620 Outputs and Control Interface

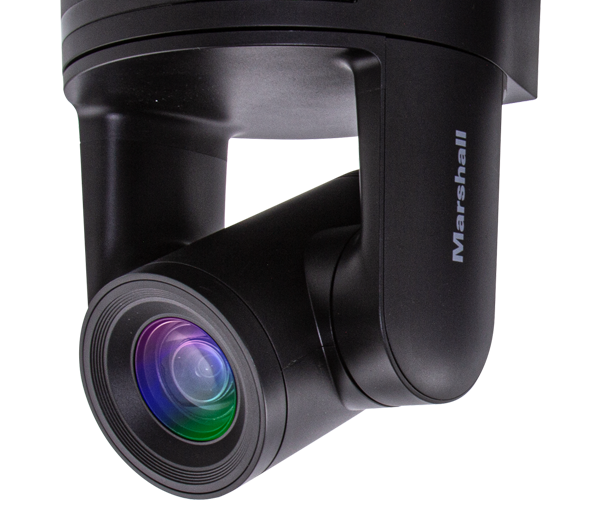

Low-light Sensitivity

The CV605 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

VS-PTC-IP Flexible Control Options

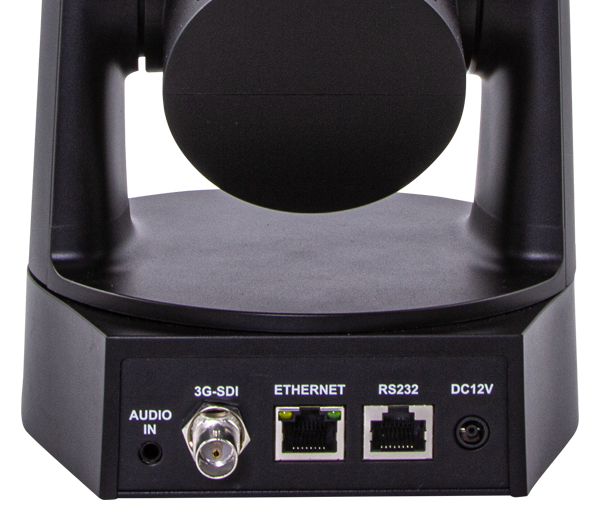

One Cable to Camera

One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.

  • 2 Megapixel (HD) sensor
  • 5X Optical Zoom (3~15mm) - starting at 85° AOV
  • HD Resolution: 1920x1080p, 1920x1080i & 1280x720p
  • Resolution/Framerate choices:
    • 1920x1080p at 60/59.94/50/30/29.97/25fps
    • 1920x1080i at 60/59.94/50fps
    • 1280x720p at 60/59.94/50/30/29.97/25fps
  • Low Illumination capability at 0.5Lux (F1.8) for challenging environments
  • 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
  • Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable
  • Control Options: IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422) or Custom
  • 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)


Camera Applications:

The CV605 is suitable for use in networked HD workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

CV605 Series Mount Accessories

CV605-WM - Wall Mount for CV605-series cameras (back)

CV605-WMW - Wall Mount for CV605-series cameras (white)

CV605-CM - Ceiling Mount for CV605-series cameras
Compact Weatherproof Dome Housing for PTZ w/Fan and Heater

CV6XX-HFH

Compact Weatherproof Dome Housing for PTZ w/Fan and Heater Read more
PTZ IP Camera Controller

VS-PTC-IP

PTZ IP Camera Controller
Compatible Controller for all CV620 series,
CV612 series, and CV610 series cameras
Preferred Controller for CV620 PTZ Cameras. Read more
VS-PTC-200 - PTZ Keyboard Controller Preferred Controller for CV620 PTZ Cameras

VS-PTC-200

PTZ Keyboard Controller

Read more
CV-PTZ-BOX - Wall Installation Mount for PTZ Cameras

CV-PTZ-BOX

Wall Installation Mount for PTZ Cameras
(Camera not included)
CV-PTZ-DCM - Drop Ceiling Mount for Marshall PTZ Cameras

CV-PTZ-DCM

Drop Ceiling Mount for Marshall PTZ Cameras

Click Here For Additional Accessories
