Pro HD/4K Cameras

The Marshall CV612-TBI CV612-TWI - PTZ camera features a 12 Megapixel sensor with 5x Optical and 10x Digital Zoom range starting at a wide AOV just under 170°, capturing clear HD video up to 1920x1080p through 3GSDI, USB 3.0 and HDMI at an affordable price point.


CV612-TBI / CV612-TWI

12x AI Auto Track and Framing PTZ Camera

Download Manual Multiple Control Setup Illustration RS232 Pinout Diagram Download Latest Firmware Download Images
Dante Ready - activate AV-H video and audio
The CV612-TBI/CV612-TWI 12X optical zoom 3GSDI camera utilizes a professional-grade 2.07-megapixel sensor to capture crisp HD video starting at a Pan rotation of 170° and a tilt rotation of -90°-+90°, all in a 1920x1080p resolution. Multiple available outputs include 3GSD, HDMI, USB 3.0 and IP. Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of live streams, broadcast, and professional A/V applications for all your streaming applications. * Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.


AI Auto Track Technology

The CV612 models can automatically track, follow, and frame presenters using AI facial learning for accurate and smooth self-adjusting maneuvers. Tracking features include Presenter real-time tracking and Zone regional tracking, Presenter mode follows a single person and ignores others.  Regional mode follows a person from one established shot to another.

CV612-TBI - Live Streaming Made Simple

Live Streaming Made Simple

The camera can stream HEVC/H.264 directly via RTSP/RTMP/SRT while simultaneously outputting video via SDI, HDMI making it an ideal solution to stream live to YouTube, Livestream, Facebook (Meta), Twitch, etc. High quality USB-C is available also. When USB and SDI are set to the same format/frame rate, all four video output types are available simultaneously.

CV612-TWI Flexibility Workflow

Flexibility Workflow

CV612 camera is equally at home in houses of worship, classrooms, reality shows, pod casting channels and corporate boardrooms. It's compact size allows it to fit on a desktop, on a shelf, or concealed by set decorations in a reality shoot. It operates equally well on a surface or mounted upside down from an overhead location.

CV612-TBI Easy to Handle

High Compatibility

Multiple output types, multiple control methods and P0E+ power make life easy for system designers. Nearly all common control methods are supported including Visca & Pelco (RS232), Visca-over-IP, ONVIF, USB UVC, Web Browser setup and control, plus a hand-held IR Remote. It's a perfect match for Marshall’s VS-PTC-300 PTZ control panel as well as many 3rd party products.

  • Accurate auto-track, follow and frame subjects using AI facial learning technology
  • 1/2.8" high quality HD CMOS sensor with 2.07 megapixel-inch
  • Format Resolutions 1920x1080, 1280x720, 640x480
  • Video outputs include: 3GSDI, HDMI, USB3.0 and IP
  • 12x optical zoom (4.1~49.2mm)
  • Supports real time tracking and regional tracking up to 8m
  • Dante Ready AV-H supports up to 1080p and 2 audio channels (Requires end user activation in Dante Controller)
  • Horizontal Angle of View 6.6°- 70.3°
  • Pan rotation of +/- 170°, Tilt rotation of -90°-+90°


Camera Applications:

The CV612-TBI/CV612-TWI cameras are suitable for use in networked HD workflows where image quality and versatility are of utmost concern, including live broadcast productions, conference rooms, live streaming, online content, courtroom capture, corporate video, government assembly, house of worship and many more.
CV612-TBI / CV612-TWI Specifications
Optical Zoom >12X, f=4.1~49.2mm
Sensor >1/2.8-inch-high quality HD CMOS sensor, 2.07 megapixel

Video Output Format

HDMI and SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

To USB3.0 port on PC:
YUY2:
1920*1080  @60/50/30/25fps
1280*720   @60/50/30/25fps
960*540    @30fps
800*600    @30fps
640*480    @30fps

To USB2.0 port on PC:
YUY2:
960*540    @30fps
800*600    @30fps
720*576    @50fps
720*480    @60fps
640*480    @30fps

Viewing Angle >6.6°- 70.3°
Digital Zoom >8X
Minimum Illumination

0.5Lux (F1.8)

White Balance

Auto / Manual/ One Push/ VAR

Focus >Auto/Manual/One Push
Iris >Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
Electronic Shutter

Auto/Manual (1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000)

BLC >ON/OFF

Video Adjustment

Brightness, Hue, Saturation, Contrast, Sharpness,
B/W mode

SNR ≥50dB

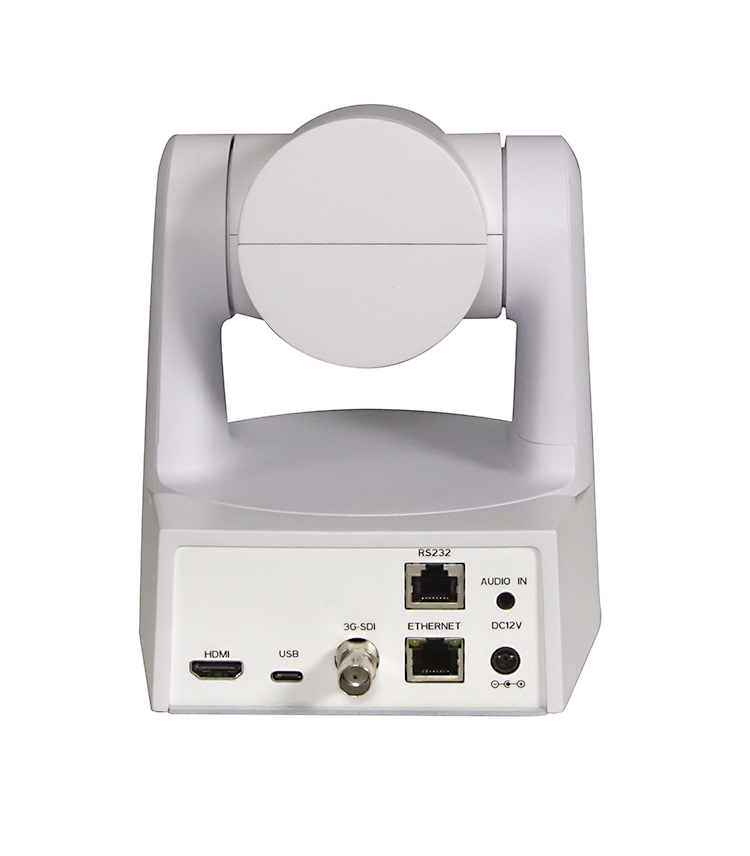

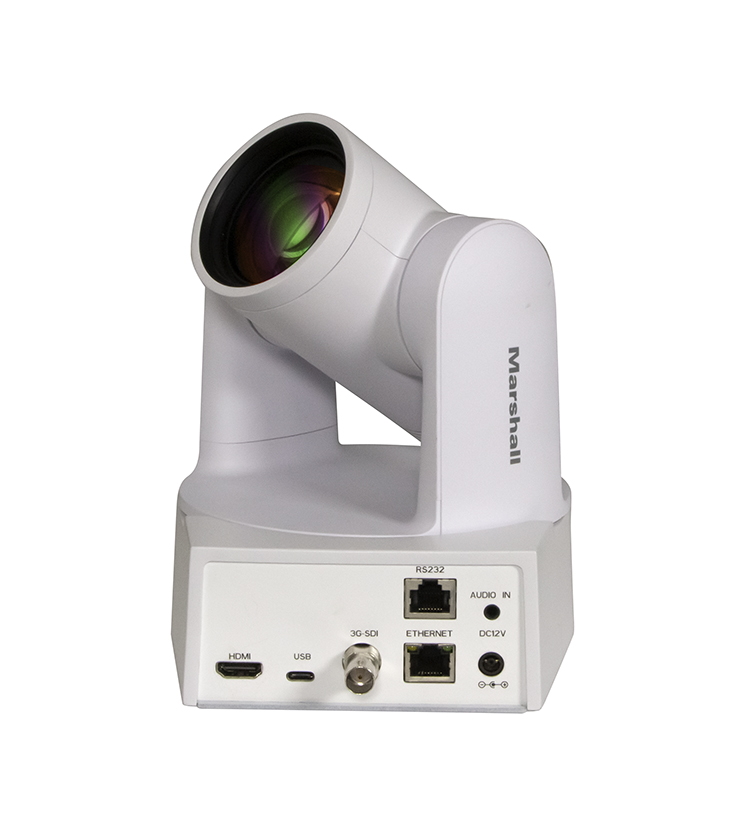

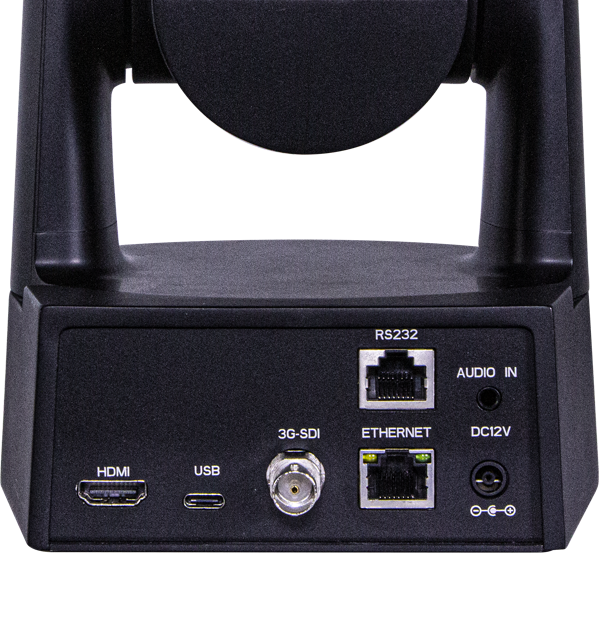

Input/ Output Interface

Video Interfaces

USB3.0 TYPE-C, 3G-SDI, HDMI, LAN

Video Compression Format

USB3.0: YUY2
LAN: MJPEG, H264, H265

Audio Input

Two-channel 3.5mm line input

Network Protocol

RTSP, RTMP, SRT, ONVIF; VISCA over IP control

Control Interface

RS232

Control Protocol

VISCA/Pelco-D/Pelco-P;
Baud Rate: 115200/38400/9600/4800/2400

Power Interface

HEC3800 outlet (DC12V)

Supply Adapter

AC110V-AC220V to DC12V/2A

Input Voltage

DC12V±10%

Input Current

1.25A

Consumption

15W (12V, 1.25A Max)

PTZ Parameter

Pan Rotation

>±170°
Tilt Rotation >-90°~+90°
Pan Control Speed

0.1 -65°/sec

Tilt Control Speed

0.1-35°/sec

Preset Speed >Pan: 60°/sec, Tilt: 30°/sec
Preset Number

255 presets (10 presets by remote controller)

AI Tracking
Real Time and Regional tracking up to 8m.
Regional tracking can be set up to 4 continuous regions to track.
Other Parameter
Store Temperature

-10° C~+70° C

Store Humidity

20%~90%

Working Temperature

-10° C~+50° C

Working Humidity

20%~80%

Dimension >162.3mm (height) x 146.2mm (width) x 164.9mm (length)
Weight 1.49 kg (3.30 lbs)
Using Environment

Indoor

Accessory >Power supply, IR remote controller, USB3.0 Type-C cable
