A variation of both the description and applications Marshall CV620-BI is a full PTZ camera with 20x optical zoom and 2MP Full-HD Sony sensor which makes it a high performance HD camera for broadcast, production, house of worship, corporate, courtroom and proAV applications of all types.


Home | Pro HD/4K Cameras | CV620-BI / CV620-WI - 20X Full-HD60 IP PTZ Camera

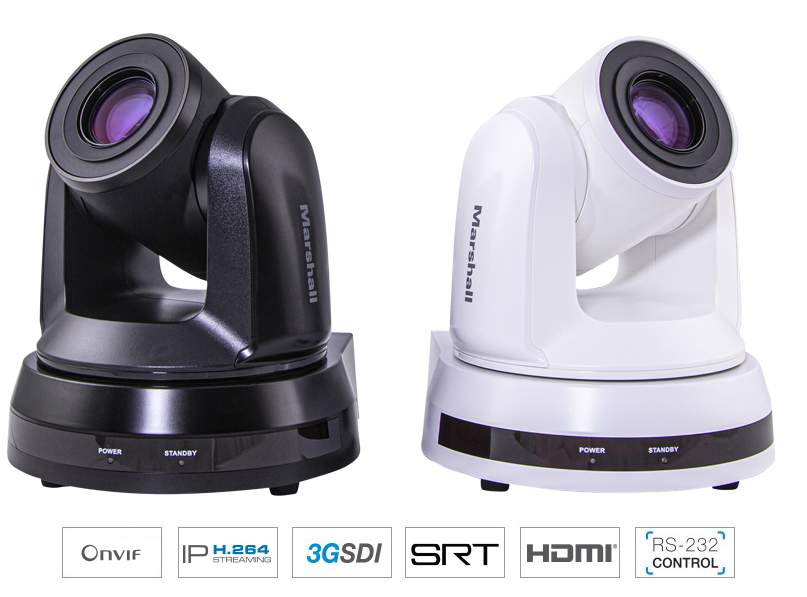

CV620-BI / CV620-WI

20X Full-HD60 IP PTZ Camera

Download Manual Cut Sheet Multiple Control Setup Illustration Quick IP Camera Setup Facebook Live Setup Quick Setup of VS-PTC-200 controller with CV630-IP PTZ camera RS232 to CAT Cable Connectors RS-232/422 Wire Diagrams Crestron IP Control Modules CV620-BI/WI Spec Chart & VISCA Commands Download Latest Firmware Video Management Software OBS Studio Plugin & Dock Instructions Marshall OBS Plugin and Dockable Controller Ver.2.0.10 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.10 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP CGI Command List Download Images
Marshall CV620-BI/WI features a 20x optical zoom range and flexible IP, 3GSDI, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-IP controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks. * All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

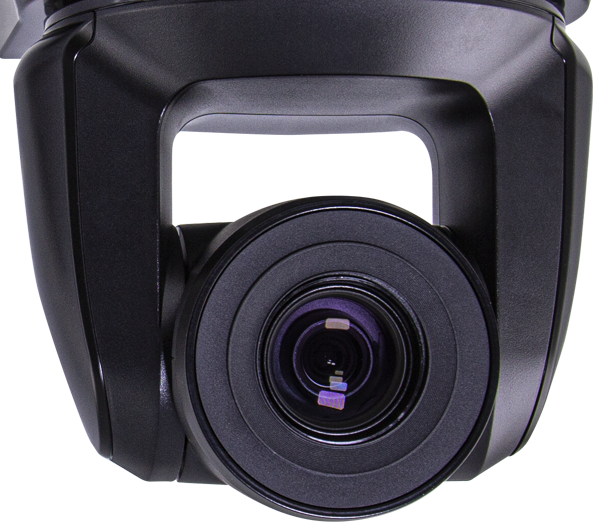

CV620 Camera Positioning

Crisp Full-HD Video Output

The CV620 is built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i and 1280x720p.

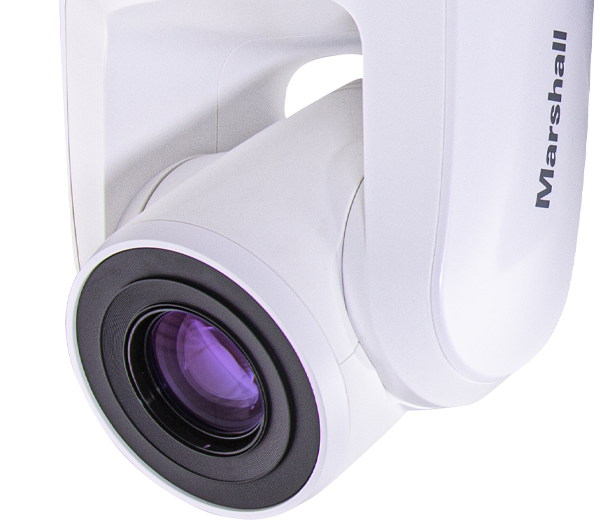

CV620 - Versatile Camera Position

Versatile Camera Position

The CV620 is equipped with synchronous pan, tilt, and zoom motors with various speed adjustment for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.

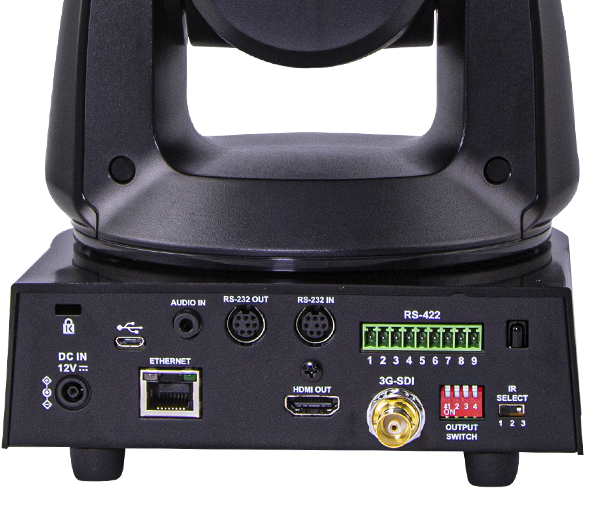

CV620 Outputs and Control Interface

Easy I/O and Control

Simultaneous IP, 3GSDI and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, easy one-cable to camera setup via IP ethernet cable for control, video, audio, tally and PoE+ (power).

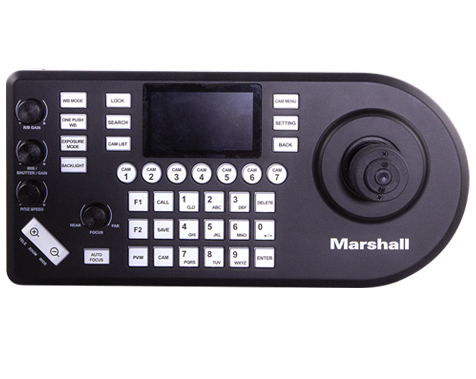

VS-PTC-IP Flexible Control Options

Flexible Control Sources

Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-300 or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.

  • 2 Megapixel Full-HD Sensor (Sony 1/2.8")
  • 20x Optical zoom (5.3mm~110mm) starting at 60° H.AOV
  • 340° pan and 120° tilt range with various PT selectable speeds
  • 3GSDI, HDMI and IP (H.264) available outputs
  • IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
  • Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
  • 60, 59.94, 50, 29.97, 25 frames per second
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (16W max) or PoE+ (18W max)
  • Operating Temp: 0 to 40°C, Storage Temp: -20 to 60°C
  • Free-D protocol support and CGI protocol commands


Camera Applications:

Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation
PTZ Camera IP/ NDI Controller

VS-PTC-300

PTZ Camera IP/ NDI® Controller
Compatible controller for Marshall PTZ cameras, Simultaneously control via IP, NDI, RS232/RS422 or IP, USB, RS232/RS422 Read more
VS-PTC-200 - PTZ Keyboard Controller Preferred Controller for CV620 PTZ Cameras

VS-PTC-200

PTZ Keyboard Controller

Read more
CV6XX-DH - Outdoor Dome Housing

CV6XX-DH

Outdoor Dome Housing Read more
CAT 5 Ethernet Cable Extender Connection Cables

CV620-CABLE-06

Controller Cable Connector RS232 to Cat (RJ45) - VS-PTC-200 (only)

CV620-CABLE-07

Camera Cable Connector RS232 to Cat5/6 (RJ45) - Camera Side
Wall mount with wire conceal

CV-PTZ-WM (Black)
CV-PTZ-WMW (White)

Wall mount with wire conceal.
Quick Wall Mount Installation Guide
CV-PTZ-BOX - Wall Installation Mount for PTZ Cameras

CV-PTZ-BOX

Wall Installation Mount for PTZ Cameras
(Camera not included)
CV-PTZ-DCM - Drop Ceiling Mount for Marshall PTZ Cameras

CV-PTZ-DCM

Drop Ceiling Mount for Marshall PTZ Cameras
RS7-HR - RS232 / RS422 Home Run (1 to 7) Extender

RS7-HR

RS232 / RS422 Home Run (1 to 7) Extender

Read more

Click Here For Additional Accessories

CV620-BI / CV620-WI Specifications:

Item Spec
Sensor SONY IMX327
Video Format 1080p/60,1080p/30
1080p/59.94,1080i/59.94
1080p/50,1080p/25
1080p/29.97
1080i/60,1080i/50
720p/60
720p/59.94
720p/50
Video Output (HD) Interface 3G-SDI / HDMI / Ethernet (IP)
Optical Zoom 20X
Horizontal Viewing Angle 60° (Wide) to 3° (Tele)
Pan/Tilt Angle 340° pan and 120° tilt
Panning Speed variable
Aperture F1.6~F3.6
Focal Length (lens spec) 5.33~110 mm
Shutter Speed 1/1 to 1/10,000
Minimum Object Distance ∞~1.5m
Minimum Illumination 1.0Lux (F1.6, 50IRE, 30fps)
Focus System Auto, One-push AF, Manual
Gain Control Auto/ Manual
White Balance Auto/ Manual
Exposure Control Auto/Manual
3D NR yes
Aperture F1.6~F3.6
Focal Length (lens spec) 5.33~110 mm
Image Flip mirror/ flip/ mirror + flip
Preset Positions 128 savable with optional transition speeeds
Control Interface VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
Control Protocol ONVIF,VISCA, PELCO D
Tally Light Yes, Front Tally Light
PoE IEEE 802.3at(PoE+)
Video Stream RTSP, RTMP, RTMPS, SRT, MPEG-TS
Video Compression H264: 25/30/50/60 fps 1080p/720p
MJPEG 1080p 30/15 fps
Audio Input Line in/ Mic in
Audio Output Ethernet / SDI / HDMI
IR Pass-through Yes
IR Receiver Yes
IR Remote Control Yes
Power Consumption DC: 16W max
PoE+:18W max
Weight 1.9 Kg
Dimensions 185 x 186 x 174 (mm)
Storage Temps -20 to 60°C
Operating Temps 0°C to 40°C
