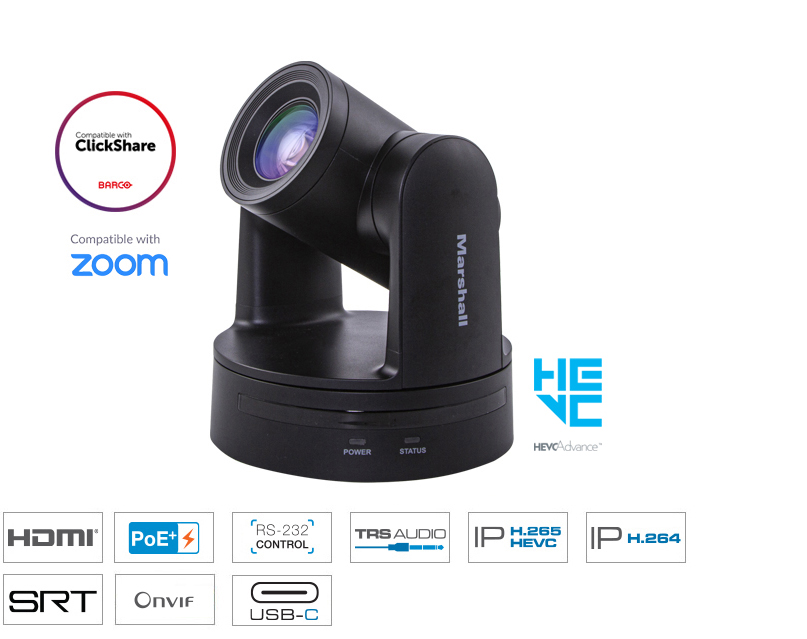

The Marshall CV605-U3 PTZ camera features a 2 Megapixel sensor with 5x Optical + 10x Digital Zoom range starting at a wide-angle 85, capturing clear HD video up to 1920x1080p at 60fps through USB-C, HDMI and IP (Ethernet) at an affordable price point. The CV605-U3 camera can be remotely controlled via UVC1.5 from soft codecs (Zoom and others) as well as OBS Studio plugins/docks, Marshall’s VS-PTC-200 or VS-PTC-IP controllers, and IR remote included. Also, can be controlled through the IP (Ethernet) connection using Software GUI through a web browser. This camera is a perfect HD60 camera tool for high quality video capture, streaming or production on a budget. Easy setup with a one-cable to camera setup with video, audio, control and power all carried over one ethernet cable for IP or run into a USB port on any computer or laptop.


CV605-U3 / CV605-U3W

5x HD60 USB-C/IP/HDMI PTZ Camera

Download Manual Download Cutsheet Specsheet Download Multiple Control Setup Illustration RS232 Pinout Diagram Firmware Update Instructions Download Latest Firmware Video Management Software OBS Studio Plugin & Dock Instructions Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac Mac iOS Camera Control Software for USB & IP Download Images
The CV605 5X optical zoom USB-C, HDMI and IP camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple outputs include HDMI, USB.C and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of video conference, video streaming and professional A/V applications. CV605-U3 can be setup through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as useful in other soft codecs.


CV605 U3 - Ultra Wide 85 degree with 5X Optical Zoom Range

Ultra-Wide 85° Horizontal AOV

The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.

CV605 - Flexible USB-C + HDMI + IP options

Flexible USB-C + HDMI + IP options

The CV605-U3 offers a USB-C connection for video conference, collaboration, and streaming. HDMI opens a wide range of options with HDMI workflows and IP provides an easy one-cable to camera setup and operation.

CV605-U3 Low-light Sensitivity

Low-light Sensitivity

The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.

CV605-U3 - one cable to camera

One Cable to Camera

One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.

CV605 - Privacy Standby Mode

Privacy Standby Mode

The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

  • Full HD sensor with crystal-clear video quality and accurate color
  • 5X Optical Zoom (3~15mm) – starting at 85° AOV
  • Full-HD Resolution: 1920x1080p, 1920x1080i, 1280x720p and more
  • Low-light Illumination capability at 0.5Lux (F1.8) for challenging environments
  • USB-C (USB3.0/2.0), HDMI and IP (H.265/H.264) simultaneous outputs
  • Barco Clickshare compatible, along with other common soft codecs
  • Ethernet IP supports video, audio, control, and PoE over one Cat cable
  • PoE IEEE802.3af – power consumption 48V (13W)
  • Control Options: IR remote, VS-PTC-200, VS-PTC-IP, VMS Software, Zoom (certified), GUI via web, UVC1.5, OBS Studio plugins & docs, Barco Clickshare, and more
  • 3.5mm audio linear input (AAC, MP3, G.711A compression)


Camera Applications:

The CV605 is suitable for use in USB-C and IP networked HD workflows where image quality and versatility are of utmost concern, including video conference, video collaboration, live streaming, courtroom capture, corporate video, government assembly, OBS Studio, Zoom, and many more.
